Specifications
Equipped With

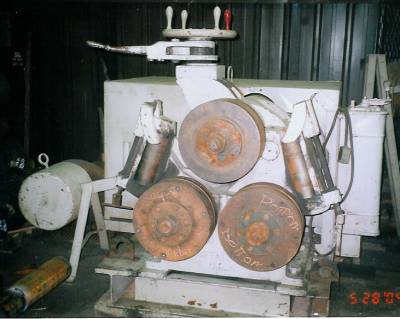

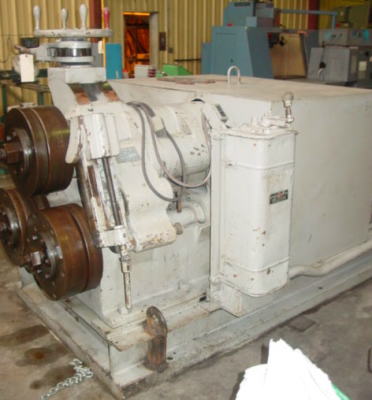

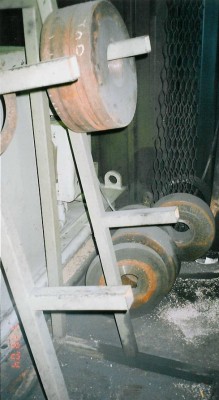

GENERAL SPECIFICATIONS:

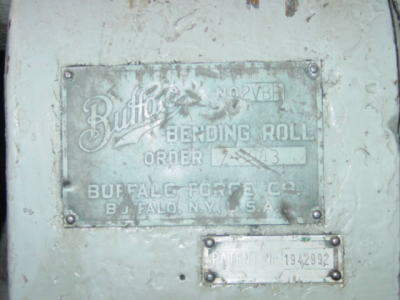

MANUFACTURER BUFFALO
TYPE NO. 2
SIZE 5" x 5" x 3/8"
SYMMETRICAL SHAPES 2.5"
NON-SYMMETRICAL 2.5"
ADJUSTABLE ROLL TONNAGE 50
LOWER ROLL CENTERS 18"
ROLL DIAMETER, NOMINAL 16-1/2"
ROLL DIAMTER, MAX. DRIVEN UPPER 17-3/4"
ROLL DIAMTER, MAX. IDLED UPPER 25"
RPM OF ROLLS 7.3
LINEAR SPEED OF WORKPIECE 31 FPM
GEAR RATIO, GEAR TRAIN 12.15
GEAR RATIO, SPEED REDUCER 19
SHAFT DIAMTER, UPPER ROLL 6"
SHAFT DIAMETER, LOWER ROLL 5"
MAIN MOTOR DRIVE 20 HP
MAIN MOTOR DRIVE SPEED 1800 RPM
HYDRAULIC PUMP MOTOR 3 HP
HYDRAULIC PUMP MOTOR SPEED 1800 RPM
DIMENSIONS, VERTICAL (APPROX.) 78"L x 82"W x 65"H
DIMENSIONS, HORIZONTAL (APPROX.) 84"L x 80"W x 62"H
WEIGHT, VERTICAL (APPROX.) 13,200 LBS.
WEIGHT, HORIZONTAL (APPROX.) 13,900 LBS.
CAPACITY SIZE MIN. INSIDE DIA.
----------------------------------------------------------------
ANGLE - LEG OUT 5 x 3/8 60
ANGLE - LEG IN 3-1/2 x 5/8 48
FLAT ON FLAT 9 x 1-1/4 30
FLAT ON EDGE 4 x 1 48
CHANNEL - FLANGE OUT 9 @ 20# 48
CHANNEL - FLANGE IN 7 @ 14.7# 48
BEAM - ON FLANGES 8 @ 18# 60
BEAM - ON WEB 4 @ 9.5# --
ROUNDS 2-3/4 30
SQUARES 2-1/2 30
STANDARD STEEL PIPE 3-1/2 38
XH STEEL PIPE 3 30
XXH STEEL PIPE 2-1/2 24
12 GA. COPPER TUBE 5 --
16 GA. COPPER TUBE 6 --
