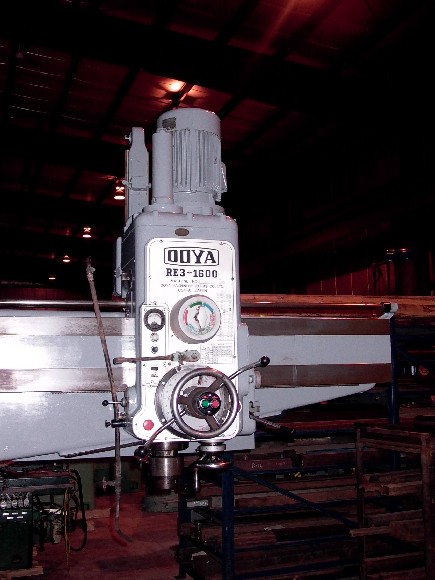

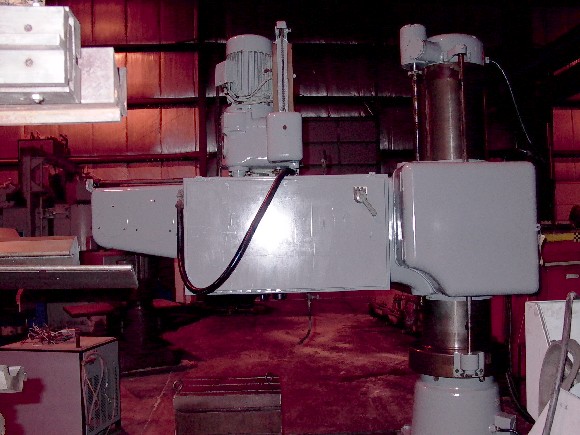

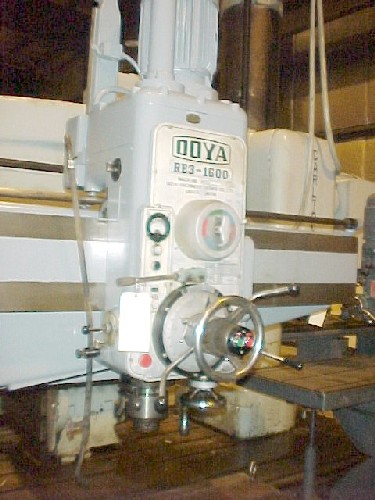

5' X 16" OOYA RE3-1600, 5 MT, 1978, 2180 RPM, BOX TABLE, PWR CLAMP/ELEVATION

GENERAL SPECIFICATIONS:
MODEL RE3-1600
SERIAL # 7910977
NEW APPROXIMATELY 1979
ARM LENGTH 5'
COLUMN DIAMETER 16-3/8"
DIST. SPINDLE C/L TO COLUMN FACE:
MIN. 13-3/8"
MAX. 62-1/2"
DIST. SPINDLE TO BASE:
MIN. 14-1/8"
MAX. 61-1/2"
SPINDLE TAPER NO. 5 MT
HORIZONTAL TRAVEL SPINDLE HEAD 50"
SPINDLE SPEEDS (16) 20 - 2,180
VERTICAL TRAVEL ARM 33-1/2"
FLOOR DIMENSIONS 101" X 41" X 9"
HEIGHT (APPROX.) 110-5/8"
WEIGHT (APPROX.) 12,100 LBS.
MOTOR 7.5 HP

EQUIPPED WITH:
POWER ELEVATION
POWER CLAMPING
BOX TABLE
