5' x 15" SUPERMAX KAO MING RADIAL DRILL, KMR-1600DH, MT #5, 30-1580 RPM, 1988

GENERAL SPECIFICATIONS:

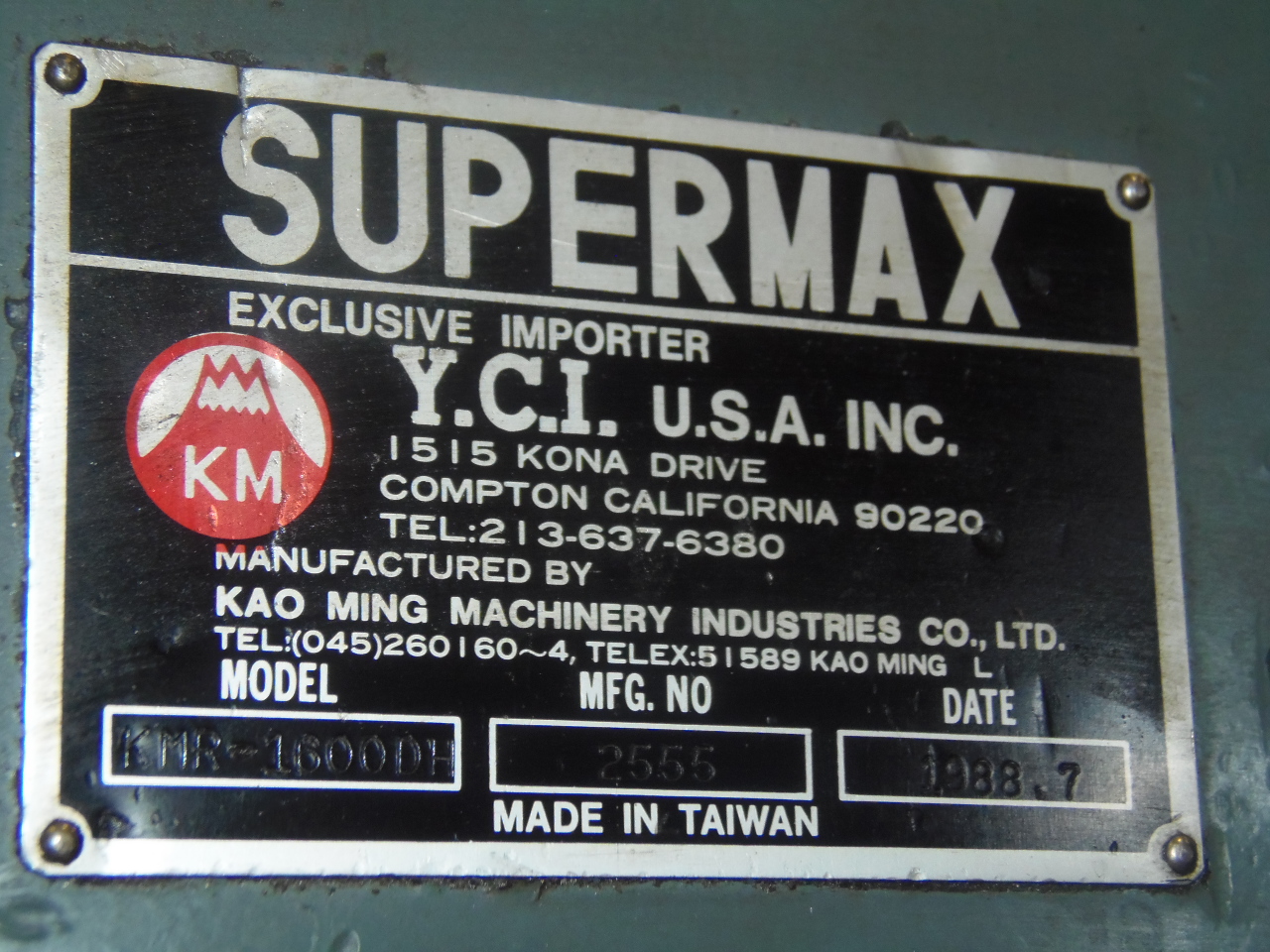

MANUFACTURER................................. SUPERMAX
MODEL........................................ KMR-1600DH
SERIAL NUMBER................................ 2555
AGE.......................................... 1988
ARM LENGTH................................... 5'

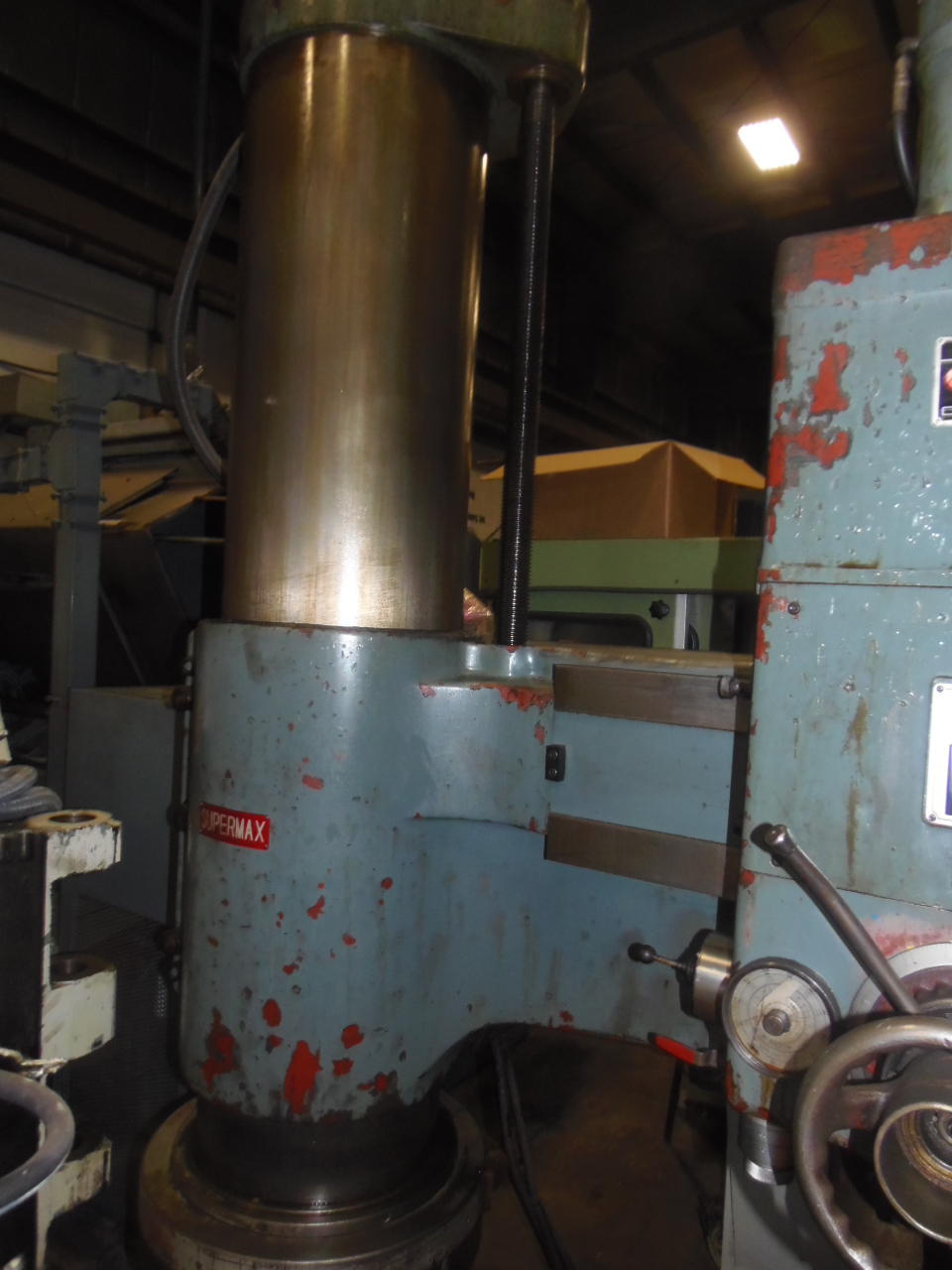

COLUMN DIAMETER.............................. 15"
DIST BTWN SPINDLE CENT. & COLUMN CENT.(MAX).. 70"
......................................(MIN).. 22.25"
DIST BTWN SPINDLE CENT. & COLUMN FACE.(MAX).. 63"
......................................(MIN).. 14.5"
DIST SPINDLE TO BASE SURFACE..........(MAX).. 61"
......................................(MIN).. 17"
HEIGHT OF COLUMN............................. 117.75"
SPINDLE HEAD LONGITUDINAL TRAVEL............. 48.5"
VERTICAL ARM TRAVEL.......................... 32"
SPINDLE TRAVEL............................... 11.75"
TAPER IN SPINDLE............................. 5MT
QUILL DIAMETER............................... 3"
SPINDLE SPEEDS .............................. 30 - 1580 RPM
SPINDLE HORSEPOWER........................... 7.5
SPINDLE FEEDS ............................... .0023 - .044
FLOOR SPACE.................................. 108" X 46" X 117"
WEIGHT....................................... 11,500 LBS.

EQUIPPED WITH:

POWER ELEVATION
AUTOMATIC FEED
HYDRAULIC CLAMPING
TOOL EJECTOR

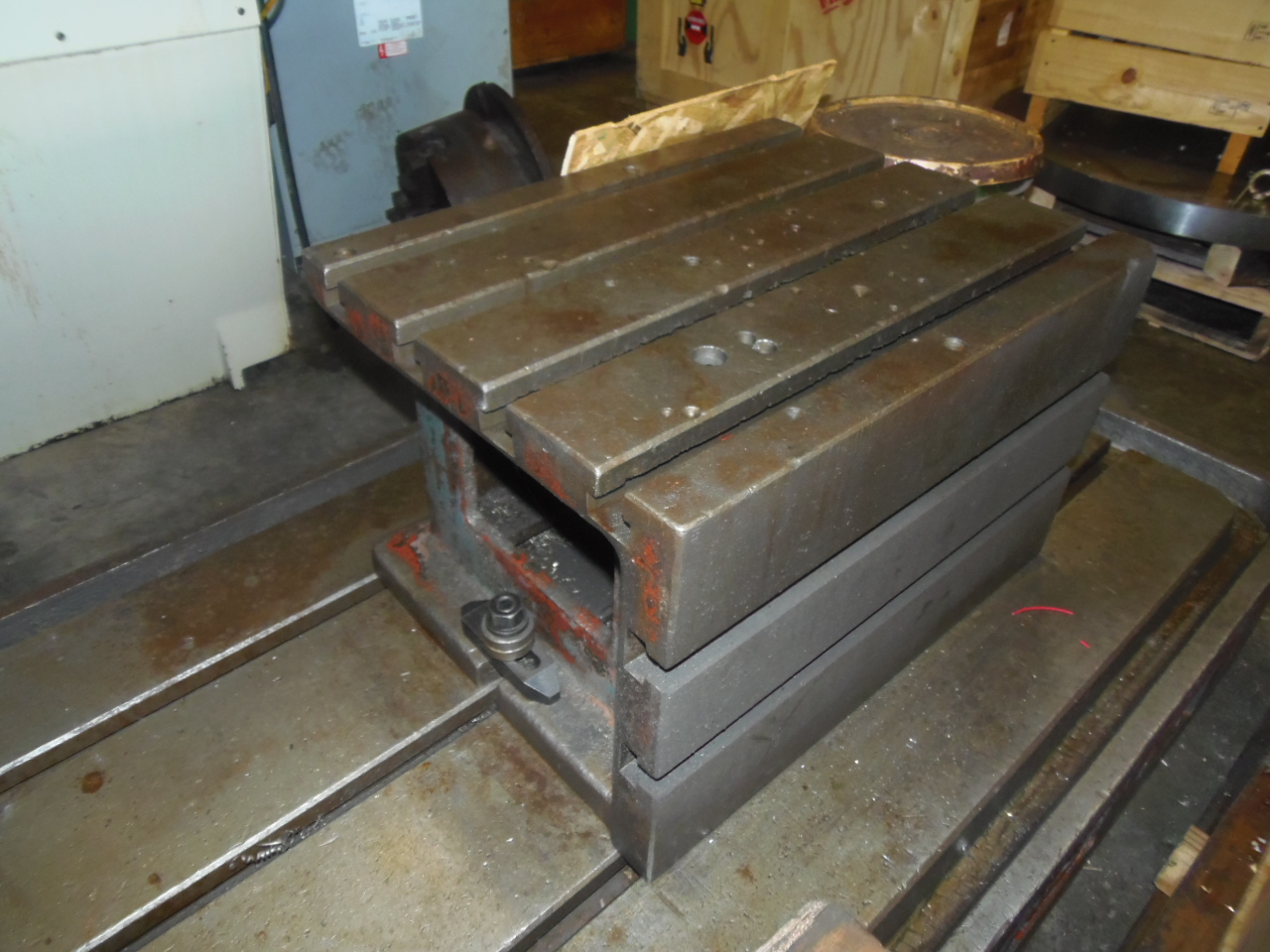

BOX TABLE 25" X 20" X 16"
