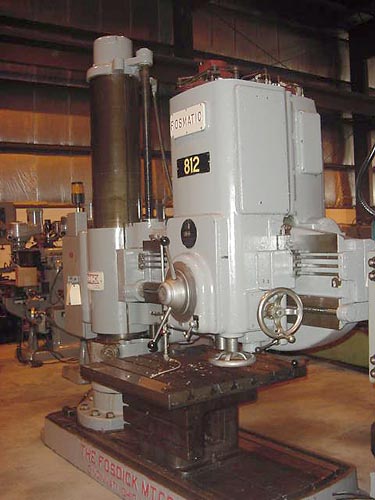

5' X 15" FOSDICK , MDL FOSMATIC

GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 1955
ARM LENGTH 5'
COLUMN DIAMETER 15"
SPINDLE SPEED RANGE 10-1275 RPM
MAIN MOTOR 15 HP
SPINDLE FEED RATE RANGE .003-.125 IPR
SPINDLE TAPER #5MT
THREADING FEED RANGE 8-27 TPI
DRILL DIAMETER CAPACITY 1/4" - 2-1/2"
DIMENSIONS, APPROX. 130" X 52" X 148"
WEIGHT APPROX. 17,000 LBS.

EQUIPPED WITH:
T-SLOTTED BASE
BOX TABLE
POWER ELEVATION
POWER CLAMPING
POWER FEED
