Specifications
Equipped With
GENERAL SPECIFICATIONS:

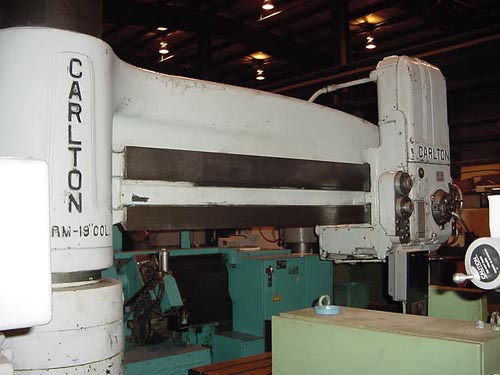

MODEL 3A
SERIAL # 2234
NEW APPROXIMATELY 1943
FACE OF COLUMN TO CNTR OF SPINDLE:
MIN. 5'
MAX. 13-3/4"
SPINDLE TO BASE (MIN.) 16-7/8"
SPINDLE TO BASE (MAX.) 6"
WORKING SURFACE OF BASE 65" X 48"
VERTICAL TRAVEL OF SPINDLE IN HEAD 18"
SPINDLE TAPER #5 M.T.
TRAVERSE OF ARM ON COLUMN 37-3/8"
TRAVERSE OF HEAD ON ARM 46-1/4"
SPINDLE SPEED (36) 7 TO 1500 RPM
FEEDS .004" - .0125"
WEIGHT (APPROX.) 21,000 LBS.
DIMENSIONS (APPROX.) 120"LR x 48"FB x 132"H
EQUIPPED WITH:
20 HP A/C MAIN DRIVE MOTOR
ELECTRICAL CONTROLS
POWER ELEVATION
POWER CLAMPING TO HEAD AND COLUMN
RAPID TRAVERSE TO HEAD
COOLANT PUMP
BOX TABLE
