Specifications
Equipped With
GENERAL SPECIFICATIONS:

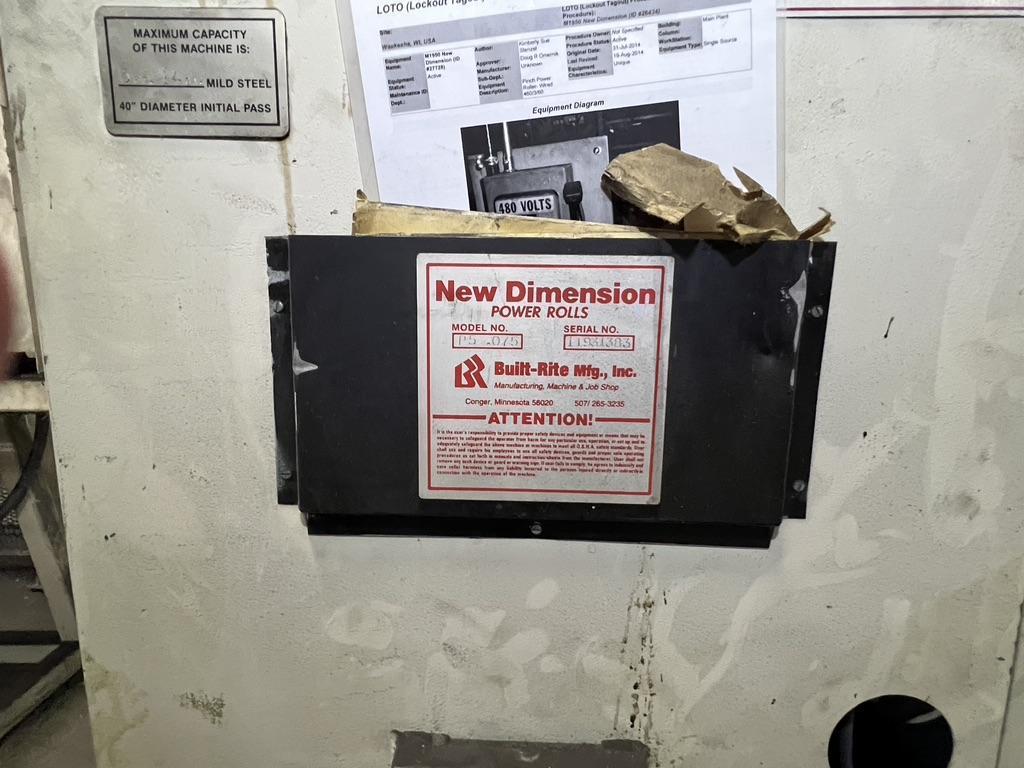

MANUFACTURER..................... NEW DIMENSION
MODEL............................ P5 .075
SERIAL NUMBER.................... 11931383
CAPACITY......................... 5' X 14 GAUGE
ROLL DIAMETER.................... 4"
SURFACE FEET PER MIN............. 16
WORKING AREA..................... 61"
STANDARD PINCH ROLL OPENING...... 1/2"
WORKING HEIGHT................... 34"
FLOOR SPACE...................... 26" X 79"
WEIGHT........................... 1600 LBS
EQUIPPED WITH:
CIRCULAR WIRE GROOVES
INITIAL PINCH DESIGN
POWER OPEN END
