GENERAL SPECIFICATIONS:
SERIAL # N78G-4759

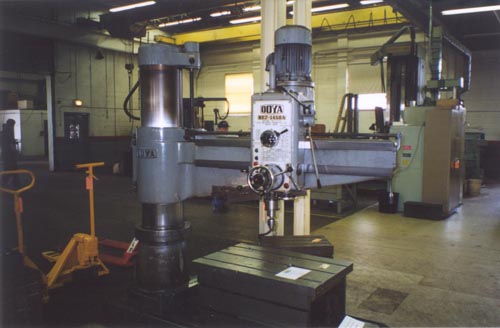

MODEL # RE2-1450A
FEET (ARM LENGTH) 5'
INCHES (COLUMN DIAMETER) 13-3/8"
DIST. SPINDLE C/L TO COLUMN FACE: MIN. 11 5/8"
MAX. 58 1/4"
DISTANCE SPINDLE TO BASE: MIN. 15"
MAX. 51 3/4"
WORKING SURFACE OF BASE 88" X 33"
LONGITUDINAL TRAVEL OF HEAD ON ARM 46 5/8"
VERTICAL TRAVEL OF ARM ON COLUMN 25 5/8"
COLUMN DIAMETER 13 3/8"
SPINDLE TRAVEL 12"
SPINDLE DIAMETER 3-1/16"
SPINDLE SPEEDS (12) 38-1985 RPM
SPINDLE FEEDS (6) 0.00315-.04"/REV.
SPINDLE TAPER NO. 5 MT
MOTOR 5 HP 3/60
OVERALL DIMENSIONS APPROXIMATELY 104" X 48" X 92" H
WEIGHT APPROXIMATE 7300 LBS.
EQUIPPED WITH:
BOX TABLE
POWER CLAMPING TO ARM AND HEAD
POWER ELEVATION OF ARM
COOLANT PUMP AND PIPING
