GENERAL SPECIFICATIONS:

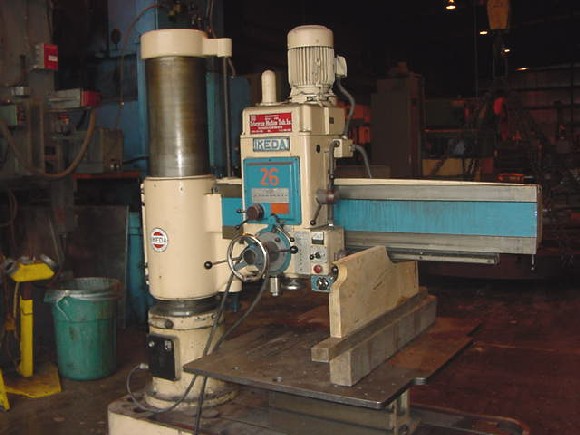

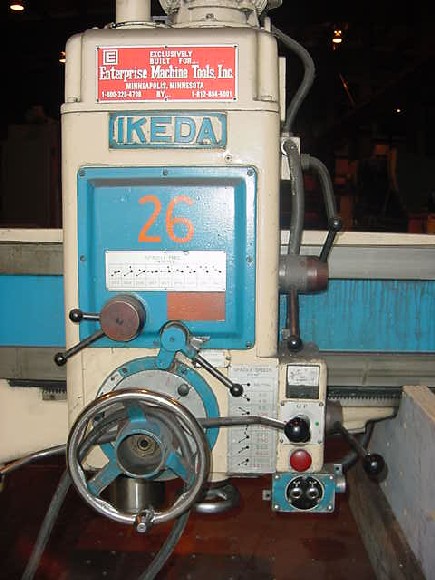

MANUFACTURER............................... IKEDA
MODEL...................................... RM01575
SERIAL #................................... 79040
NEW APPROXIMATELY.......................... 1978

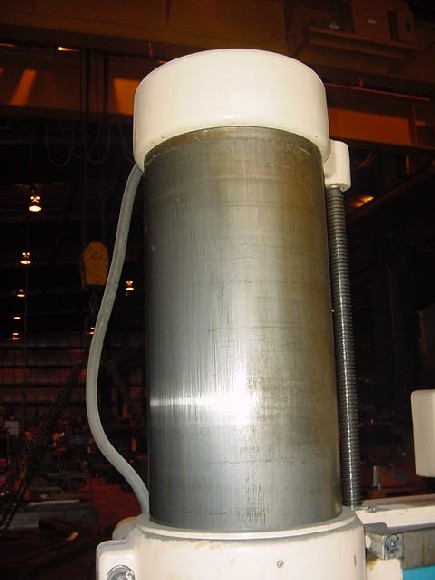

COLUMN DIAMETER............................ 13-5/8"
MAX/MIN DISTANCE, FACE OF COLUMN TO
CENTERLINE OF SPINDLE................... 60-1/2"/10"
TAPER IN SPINDLE........................... #5 MORSE
SPINDLE QUILL DIAMETER..................... 3-5/8"
SPINDLE TRAVERSE IN HEAD................... 14-1/2"
MAX/MIN DISTANCE, SPINDLE TO BASE.......... 54-1/2"/12-1/2"
WORKING SURFACE OF BASE.................... 36"FBx65-1/4"LR
HEIGHT OF BASE............................. 8-1/2"
(12) SPINDLE SPEEDS........................ 30 - 1500 RPM
(9) SPINDLE FEEDS.......................... .003 - .040 IPR
BOX TABLE.................................. 19" X 27" X 16"
CLAMPING MOTOR............................. 1/6 HP
ARM ELEVATION MOTOR........................ 1-1/3 HP
SPINDLE MOTOR.............................. 7.5 HP
ELECTRICAL CONTROLS........................ 3/60/440
WEIGHT (APPROX.)........................... 8,800 LBS.
EQUIPPED WITH:
T-SLOTTED BASE
MOTORIZED ELEVATION OF ARM ON COLUMN
ELECTRICALLY ACTUATED COLUMN AND HEAD CLAMPING OH ARM
SELF CONTAINED COOLANT SYSTEM
