Specifications
Equipped With

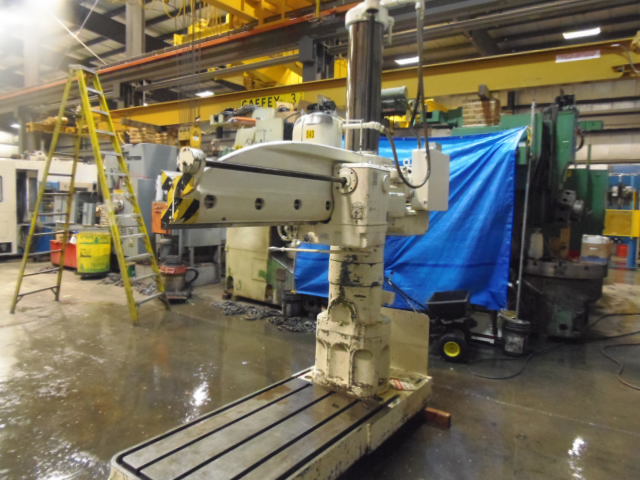

GENERAL SPECIFICATIONS:
SERIAL NUMBER.............................. 1A-2751
COLUMN DIAMETER............................ 11"
ARM LENGTH................................. 60"
QUILL TRAVEL................................ 12"
FACE OF COLUMN TO CENTER OF SPINDLE (MAX).. 60"
(MIN).. 9"
SPINDLE RADIUS (MAX)....................... 68-1/2"
(MIN)....................... 17-1/2"
SPINDLE TO BASE (MAX)...................... 73"

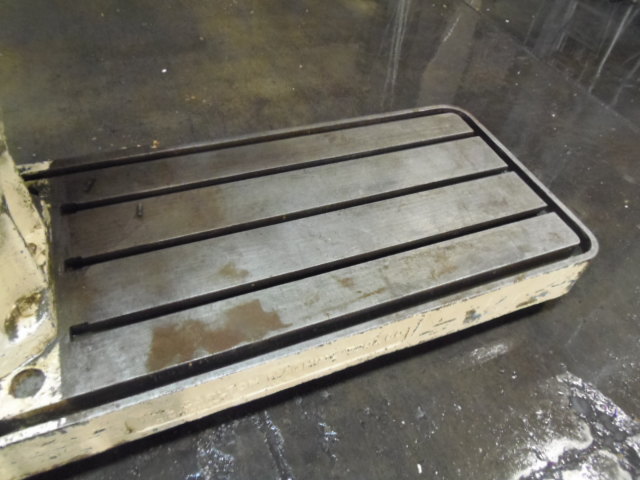

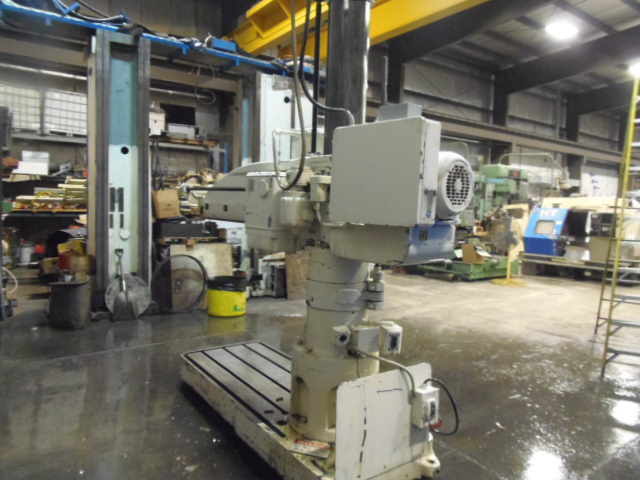

WORKING SURFACE OF BASE (WIDTH)............ 36"'
(LENGTH)........... 66"
HEIGHT OF BASE............................. 8"
VERTICAL TRAVEL OF SPINDLE IN HEAD......... 12"
BEARING OF HEAD ON ARM..................... 15"
BEARING OF ARM ON COLUMN................... 22"
HEIGHT OVER HEAD (MAX)..................... 119" (W/RISER)
HEIGHT OVER COLUMN CAP..................... 116" (W/RISER)
SPINDLE DIA (DRIVING DIA).................. 2-1/2"
MORSE TAPER IN SPINDLE..................... #4
TRAVERSE OF ARM ON COLUMN.................. 28-1/2"

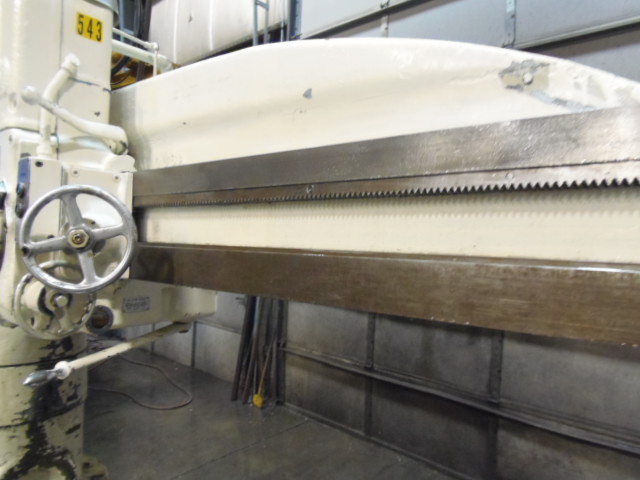

TRAVERSE OF HEAD ON ARM.................... 51"
DRILLS TO CENTER OF CIRCLE................. 120"
SWING OF ARM............................... 81"

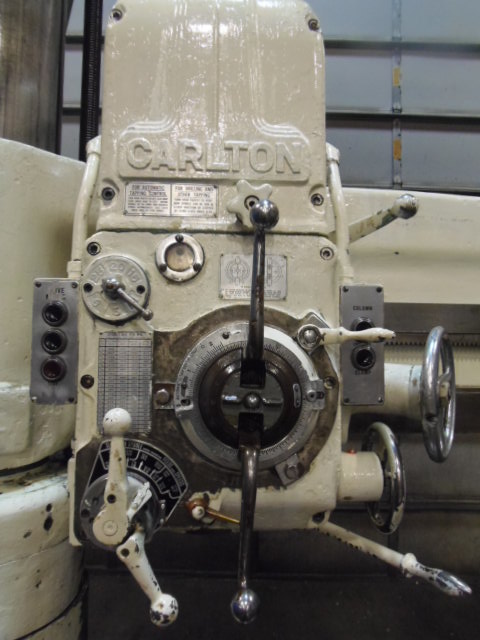

FEEDS & TAPS LEADS (6)..................... .004, .006, .008,
.012, .018, .025
SPINDLE SPEEDS (12)........................ 25:1 RATIO 80-2000

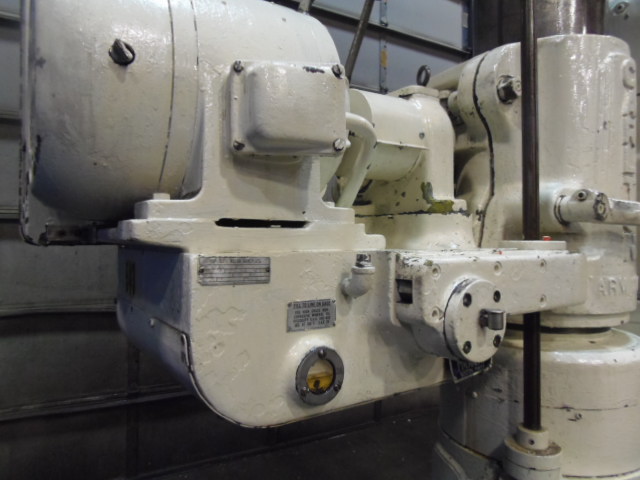

HORSE POWER OF DRIVING MOTOR............... 10
DRILL CAPACITY - THRUST AND ARM DEFLECTION
DR 0 STEEL....................................... 2" A
DR 0 CAST IRON................................... 2-1/4"
THRUST/LBS....................................... 6500
MAX ARM DEFLECTION HEAD AT EXTREME END OF ARM.... .015"
ELECTRICS........................................... 220V/ 3PH
NET WEIGHT OF BARE MACHINE (LESS MOTOR).... 9,100 LBS
SHIP WEIGHT OF BARE MACHINE (LESS MOTOR)... 9,700 LBS
FLOOR SPACE......................................... 38" x 104" x 114" H
EQUIPPED WITH:
(RISER NOT INCLUDED)
SPECIFICATIONS SUBJECT TO VERIFICATION
