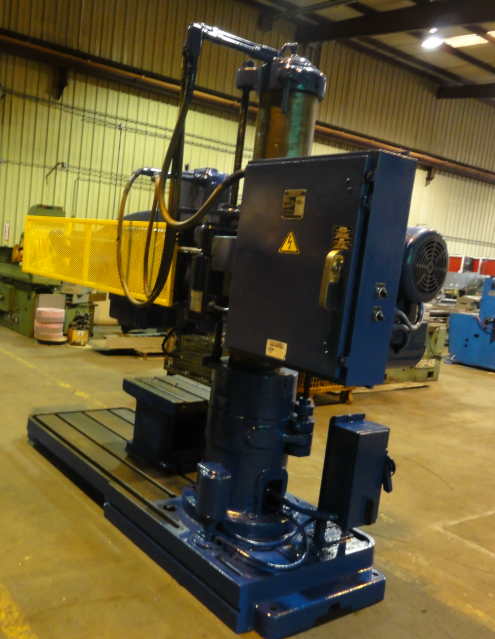

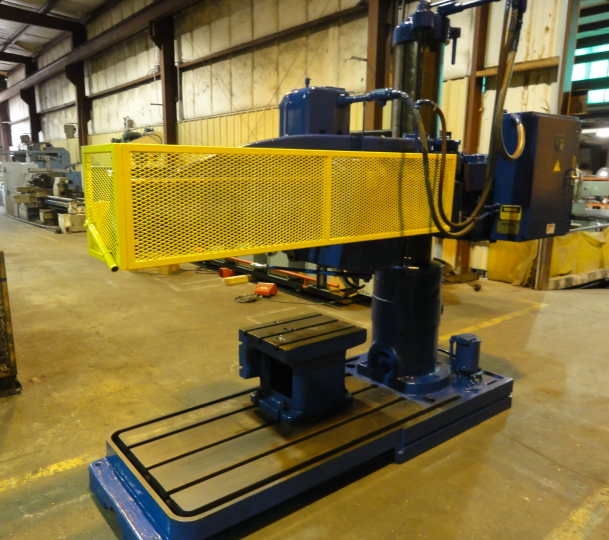

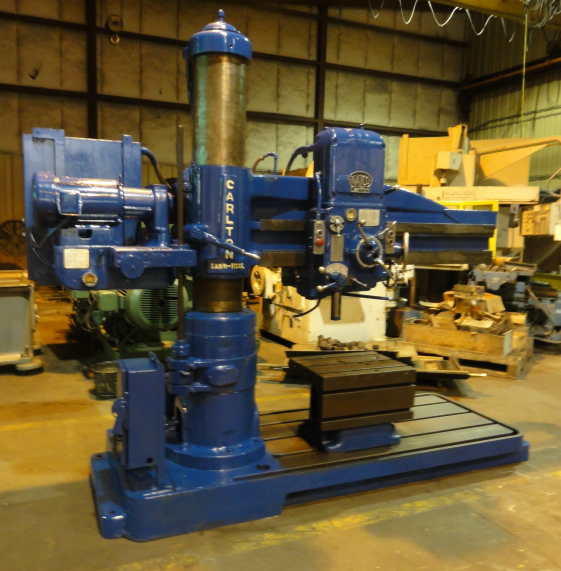

Specifications
Equipped With
GENERAL SPECIFICATIONS:
SERIAL NUMBER.............................. 1A-4473
COLUMN
DIAMETER............................ 11"
ARM
LENGTH................................. 60"
FACE OF COLUMN TO CENTER OF SPINDLE (MAX)..
60"
(MIN).. 9"
SPINDLE RADIUS
(MAX)....................... 68-1/2"
(MIN)....................... 17-1/2"
SPINDLE TO BASE
(MAX)...................... 55-1/4"
(MIN)...................... 14-3/4"
WORKING SURFACE OF BASE
(WIDTH)............ 36"'
(LENGTH)...........
66"
HEIGHT OF BASE............................. 8"
VERTICAL TRAVEL OF
SPINDLE IN HEAD......... 12"
BEARING OF HEAD ON ARM.....................
15"
BEARING OF ARM ON COLUMN................... 22"
HEIGHT OVER HEAD
(MAX)..................... 101"
HEIGHT OVER COLUMN CAP.....................
98"
SPINDLE DIA (DRIVING DIA).................. 2-1/2"
MORSE TAPER IN
SPINDLE..................... #5
TRAVERSE OF ARM ON COLUMN..................
28-1/2"
TRAVERSE OF HEAD ON ARM.................... 51"
DRILLS TO
CENTER OF
CIRCLE.................
120'
SWING OF ARM............................... 81"

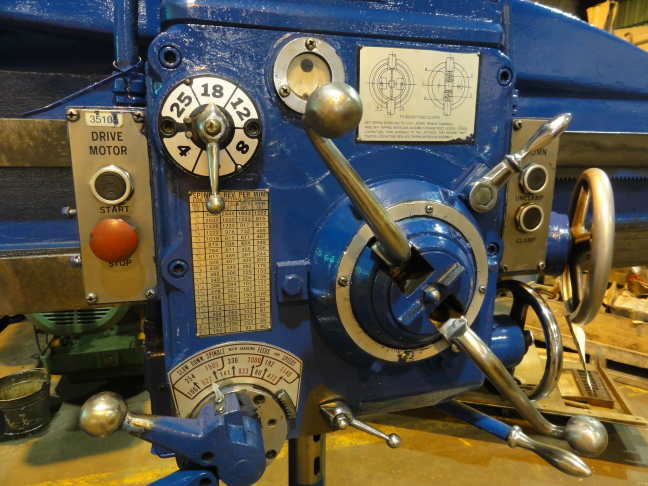

FEEDS & TAPS
LEADS (6)..................... .004, .006,
.008,
.012, .018,
.025
SPINDLE SPEEDS (12)........................ 25:1 RATIO
80-2000
HORSE POWER OF DRIVING MOTOR............... 10
DRILL CAPACITY -
THRUST AND ARM DEFLECTION
DR 0
STEEL....................................... 2" A
DR 0 CAST
IRON................................... 2-1/4"
THRUST/LBS....................................... 6500
MAX ARM DEFLECTION
HEAD AT EXTREME END OF ARM.... .015"
NET WEIGHT OF BARE MACHINE (LESS
MOTOR).... 9,100 LBS
SHIP WEIGHT OF BARE MACHINE (LESS MOTOR)... 9,700
LBS
EQUIPPED WITH:
T-SLOTTED BOX TABLE
