5" UNION TABLE TYPE BORING BAR, 63 X 55 ROTARY TABLE, OUTBOARD SUPPORT, 50 TAPER, 32" FACING HEAD, 2 AXIS DRO,
5" UNION TABLE TYPE BORING BAR, 63 X 55 ROTARY TABLE, OUTBOARD SUPPORT, 50 TAPER, 32" FACING HEAD, 2 AXIS DRO,
5" UNION TABLE TYPE BORING BAR, 63 X 55 ROTARY TABLE, OUTBOARD SUPPORT, 50 TAPER, 32" FACING HEAD, 2 AXIS DRO,
5" UNION TABLE TYPE BORING BAR, 63 X 55 ROTARY TABLE, OUTBOARD SUPPORT, 50 TAPER, 32" FACING HEAD, 2 AXIS DRO,
5" UNION TABLE TYPE BORING BAR, 63 X 55 ROTARY TABLE, OUTBOARD SUPPORT, 50 TAPER, 32" FACING HEAD, 2 AXIS DRO,
5" UNION TABLE TYPE BORING BAR, 63 X 55 ROTARY TABLE, OUTBOARD SUPPORT, 50 TAPER, 32" FACING HEAD, 2 AXIS DRO,
5" UNION TABLE TYPE BORING BAR, 63 X 55 ROTARY TABLE, OUTBOARD SUPPORT, 50 TAPER, 32" FACING HEAD, 2 AXIS DRO,
  • 5" UNION TABLE TYPE BORING BAR, 63 X 55 ROTARY TABLE, OUTBOARD SUPPORT, 50 TAPER, 32" FACING HEAD, 2 AXIS DRO,
  • 5" UNION TABLE TYPE BORING BAR, 63 X 55 ROTARY TABLE, OUTBOARD SUPPORT, 50 TAPER, 32" FACING HEAD, 2 AXIS DRO,
  • 5" UNION TABLE TYPE BORING BAR, 63 X 55 ROTARY TABLE, OUTBOARD SUPPORT, 50 TAPER, 32" FACING HEAD, 2 AXIS DRO,
  • 5" UNION TABLE TYPE BORING BAR, 63 X 55 ROTARY TABLE, OUTBOARD SUPPORT, 50 TAPER, 32" FACING HEAD, 2 AXIS DRO,
  • 5" UNION TABLE TYPE BORING BAR, 63 X 55 ROTARY TABLE, OUTBOARD SUPPORT, 50 TAPER, 32" FACING HEAD, 2 AXIS DRO,
  • 5" UNION TABLE TYPE BORING BAR, 63 X 55 ROTARY TABLE, OUTBOARD SUPPORT, 50 TAPER, 32" FACING HEAD, 2 AXIS DRO,
  • 5" UNION TABLE TYPE BORING BAR, 63 X 55 ROTARY TABLE, OUTBOARD SUPPORT, 50 TAPER, 32" FACING HEAD, 2 AXIS DRO,

5" UNION TABLE TYPE BORING BAR, 63 X 55 ROTARY TABLE, OUTBOARD SUPPORT, 50 TAPER, 32" FACING HEAD, 2 AXIS DRO,

Brand
UNION

Model
BFT-125/5

Type
Boring Mills, Horizontal, Table Type

Stock #
7967

Condition
Used

Year
1971

Request a Quote

Specifications

Equipped With

GENERAL SPECIFICATIONS:
MANUFACTURER UNION
NEW (APPROX.) 1971
SERIAL NUMBER 9570
SPINDLE DIAMETER 5"
SPINDLE TAPER #50
VERTICAL TRAVEL OF HEADSTOCK 72"
CROSS TRAVEL OF TABLE 96"
SPINDLE FACE TO OUTBOARD 144"
SPINDLE SPEED 4.5-710 RPM
TABLE SIZE(POWER ROTARY) 63" X 55"

EQUIPPED WITH:
BUILT IN FACING HEAD
BUILT IN ROTARY TABLE
OUTBOARD SUPPORT

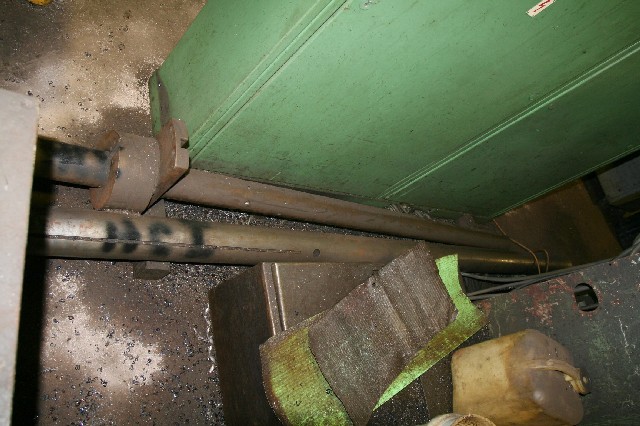

2 LONG LINE BORING BARS
2 AXIS ANILAM DIGITAL READOUT
MISC TOOLHOLDERS
MISC CLAMPING TOOLING
PRICE IS AS IS, ON PITTSBURGH LOCATION
