Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER .......................... RED RING
MODEL ................................. NBV
NEW (APPROX.) ......................... 1998
SERIAL #............................... NBV-280
TONNAGE................................ 5 TON
BROACH LENGTH.......................... 37.50" (953 mm)
BROACH STROKE.......................... 17.72" (450 mm)
CUTTING SPEED.......................... VARIABLE

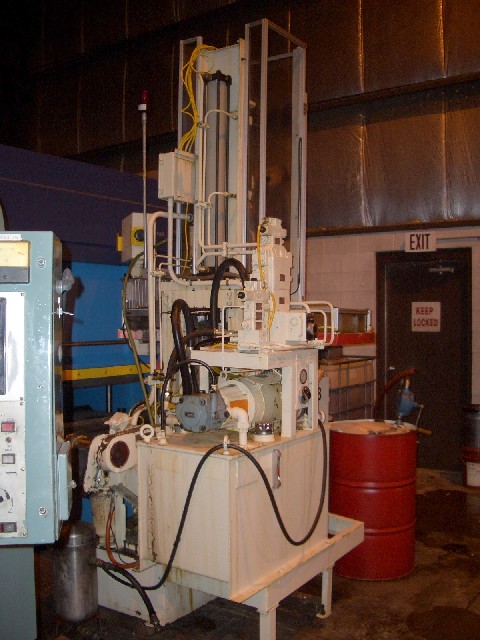

HYDRAULIC POWER UNIT................... 10 HP
SYSTEM PRESSURE........................ 850 PSI
COUNTER BALANCE BACK PRESSURE.......... 200 PSI
ELECTRICS.............................. 460/3/60
MACHINE HEIGHT......................... 130"
WEIGHT (APPROX.)....................... 3,400 LBS.
EQUIPPED WITH:

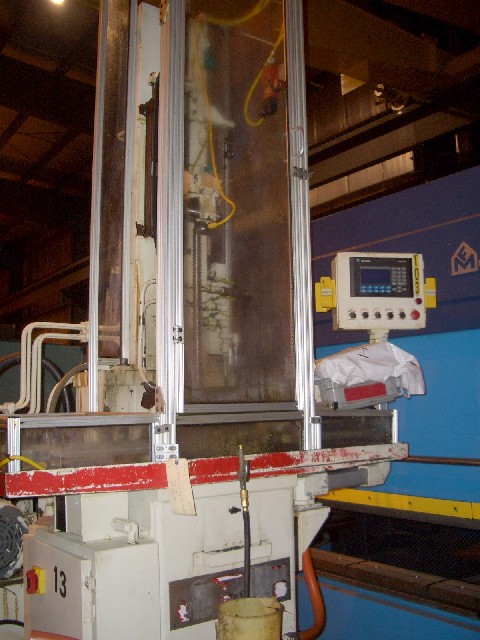

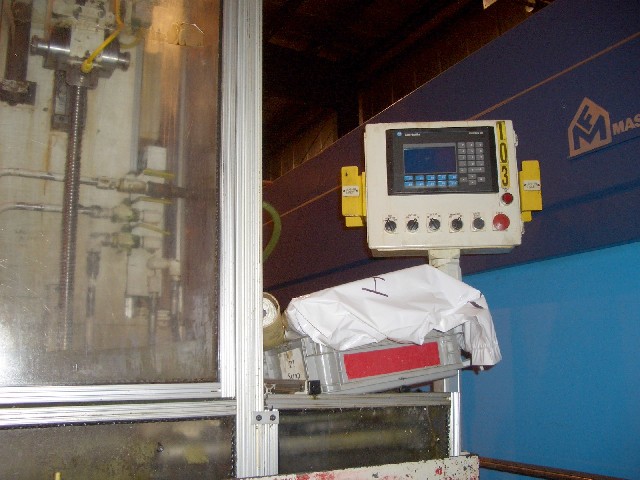

OPERATOR INTERFACE ALLEN-BRADLEY PANEL VIEW
PROGRAMMABLE CONTROLLER ALLEN-BRADLEY MICROLOGIX 1000
SHUTTLE TABLE

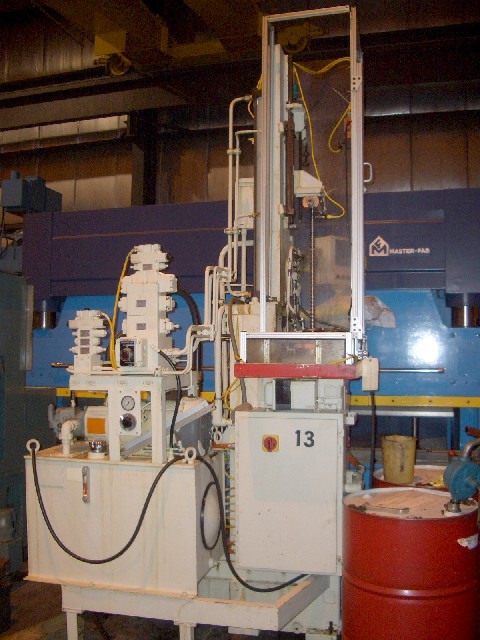

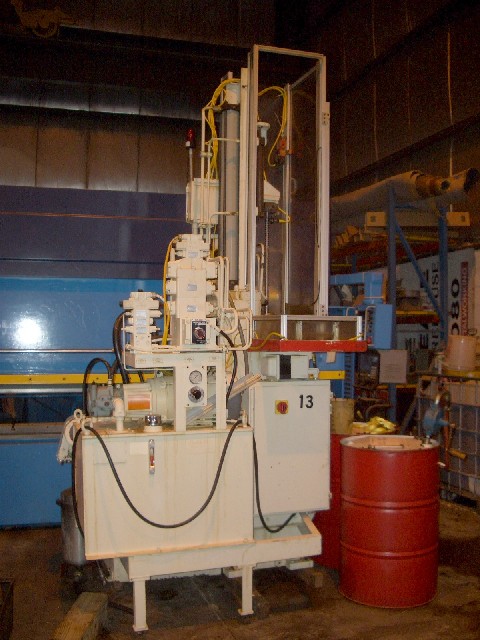

NOTE: THE RED RING MDL NBV IS A HIGH PRODUCTION, INTERNAL BROACHING MACHINE THAT REMOVES METAL BY PULLING THE BROACHING TOOL THROUGH THE WORK PIECE. TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
