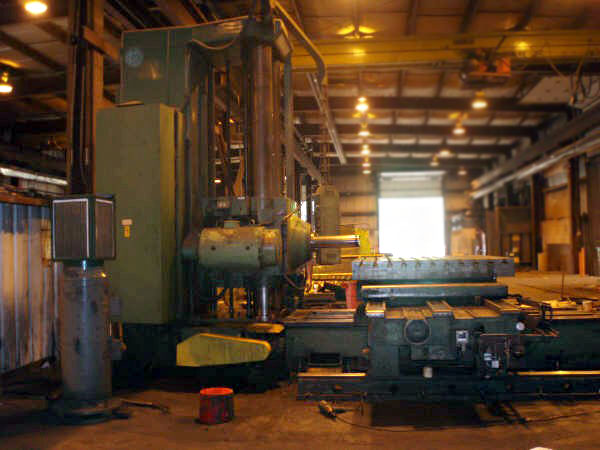

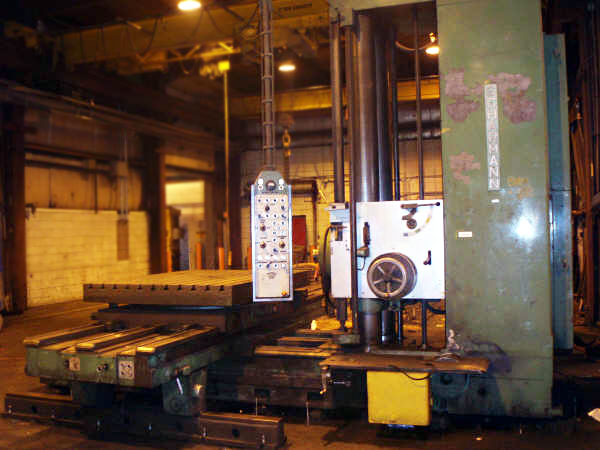

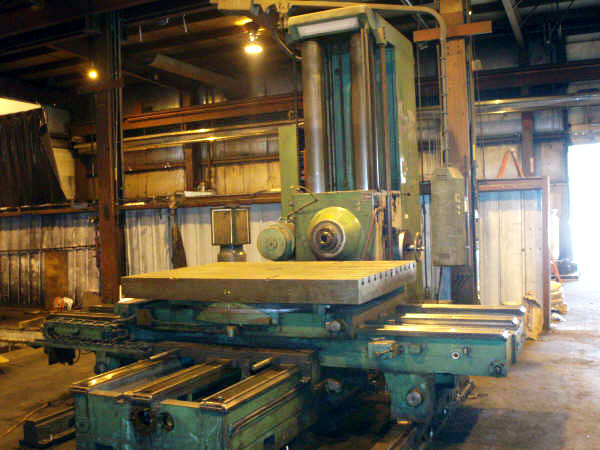

5" SCHARMANN TABLE TYPE HORIZONTAL BORING MILL, 50 TAPER, 60 X 79 POWER ROTARY TABLE, 905 RPM, PENDENT CONTROL

GENERAL SPECIFICATIONS:
MANUFACTURER SCHARMANN
MODEL FB132
AGE APPROXIMATELY 1967

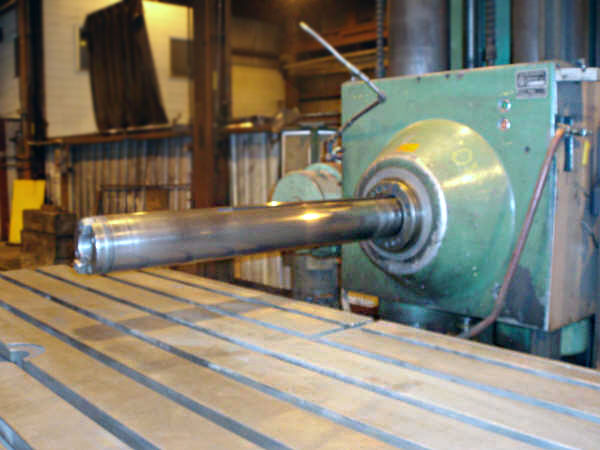

SPINDLE DIAMTER 5" (127 MM)
TABLE SIZE 60" x 79" (1524 X 2006)
X TRAVEL 79" (2006)
Y TRAVEL 71" (1803)
Z TRAVEL 53" (1346)
W TRAVEL 39" (990)
SPEED 1.6 - 905 RPM
SPINDLE TAPER 50
OVERALL HEIGHT 12'6" (3810)

EQUIPPED WITH:
U S A ELECTRICS

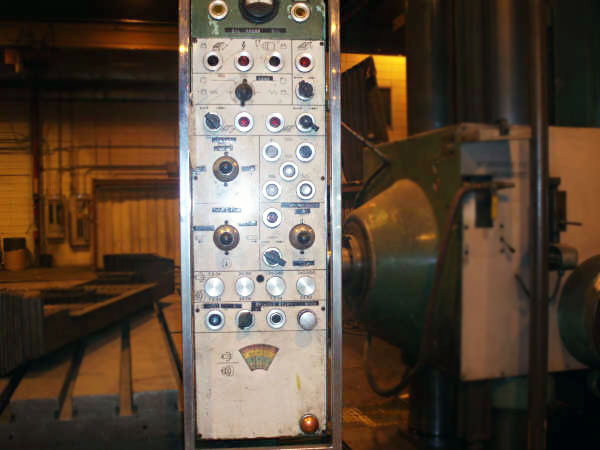

PENDENT CONTROL, RAPID-INTERMEDIATE-CREEP FEED FOR POSITIONING

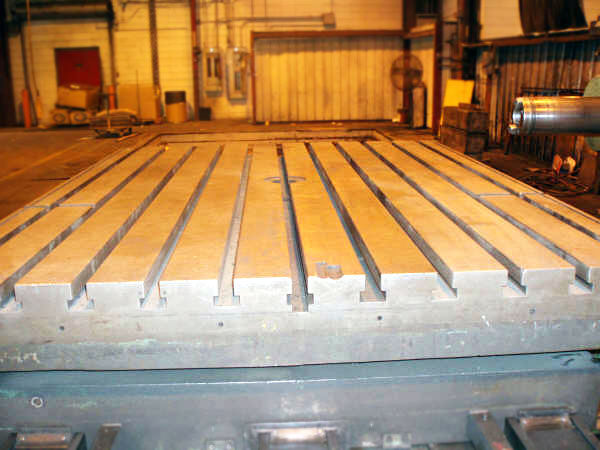

POWER ROTARY TABLE
MISC MANUALS
OUTRIGGER SUPPORTS TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
