Specifications
Equipped With
GENERAL SPECIFICATIONS:
SERIAL # 3697
NEW APPROXIMATELY 1997
APPLICATIONS CAN BE
SIMULTANEOUS: CHAMFER, BEVEL, DEBUR
I.D. & O.D., FACE,
COUTER BORE, SQUARE
PIPE, TUBE & BAR CAPACITY 3/16" - 5" DIA.

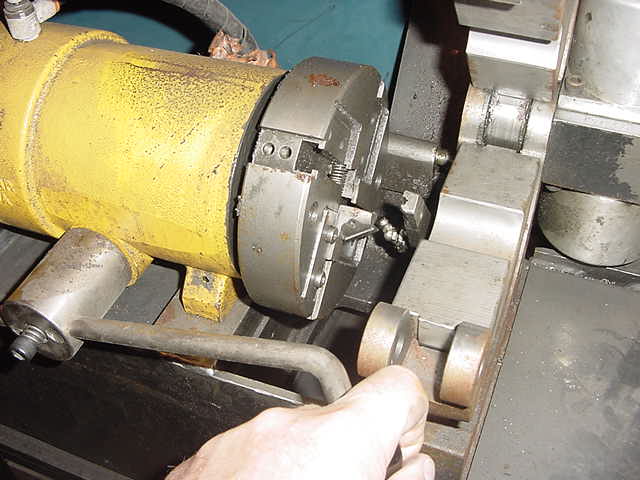

4-JAW CUTTING CHUCK DIA. 6"
SPINDLE STROKE (AUTO/MANUAL) 1.25"
SPINDLE SPEEDS (3) 123-2,567 RPM

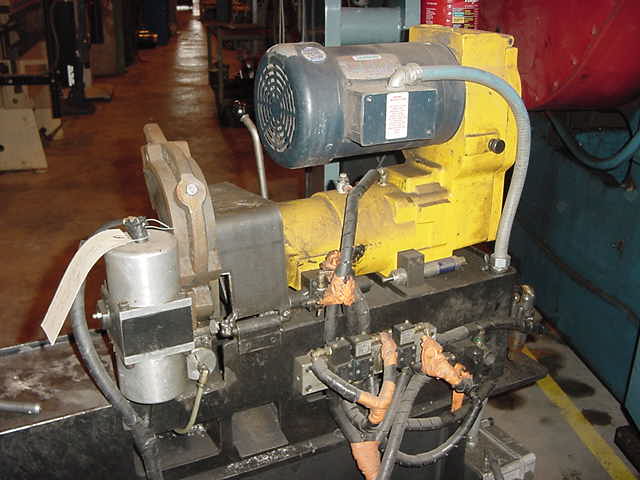

MAIN MOTOR 3 HP
DIMENSIONS (APPROX.) 40"L X 14"W X 57"H
WEIGHT (APPROX.) 700 LBS.
EQUIPPED WITH:
AUTO AIR ACTUATED CLAMPING (OR MANUAL)
AUTO AIR ACTUATED FEED (OR MANUAL)

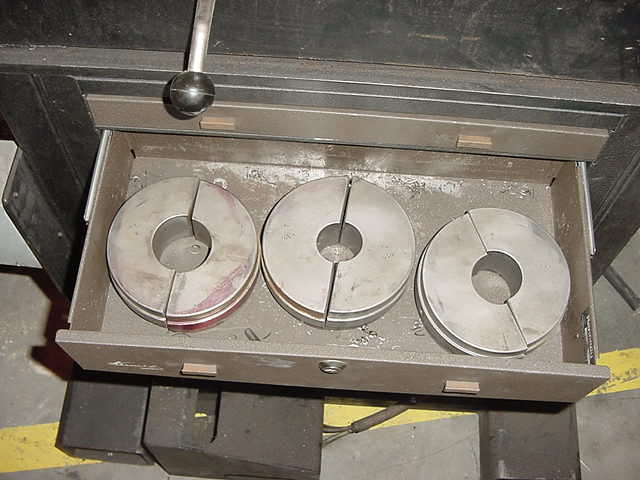

DIE SETS: 1.5", 1.625", 2", 2.25"

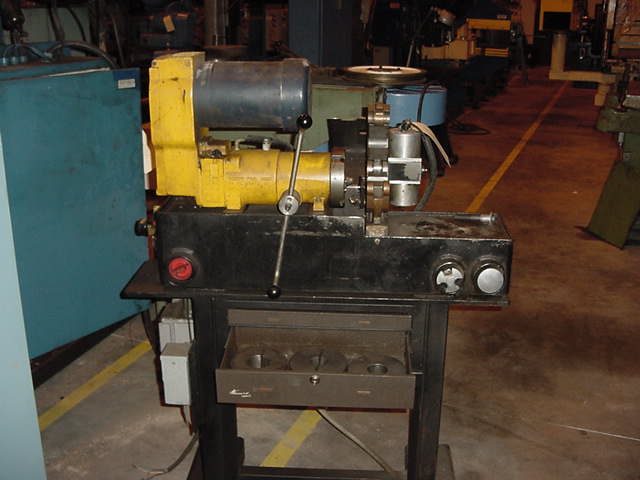

FLOOR STAND/CABINET WITH COOLANT COMPATIBILITY
FOOT PEDAL
CHIP/COOLANT GUARDING
AIR FILTER, REGULATOR, GAUGE & LUBRICATOR
