5" OLYMPIA, FANUC 16M CONTROL, 49 X 63 TABLE, 89 X 63 X 28 X 39 TRAVELS, 40 ATC, 4-2500 RPM

GENERAL SPECIFICATIONS:
MANUFACTURER OLYMPIA
MODEL H80X60
NEW (APPROX.) 1998
SPINDLE DIAMETER 5"
SPINDLE TAPER #50 CAT
VERTICAL TRAVEL OF HEADSTOCK 63"
CROSS TRAVEL OF TABLE 98"
SADDLE TRAVEL (IN & OUT) 39"
SPINDLE TRAVEL (IN & OUT) 28"
SPINDLE SPEED 4 - 2500 RPM
TABLE SIZE 49" x 63"
TABLE ROTATION (B AXIS) 360,000 POSITIONS
SPINDLE DRIVE 30 HP

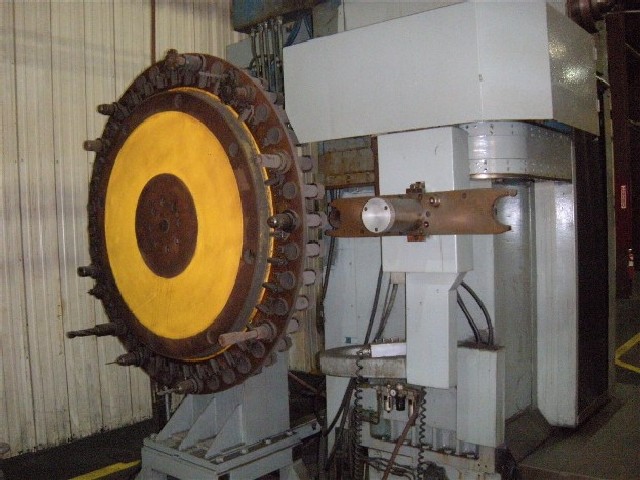

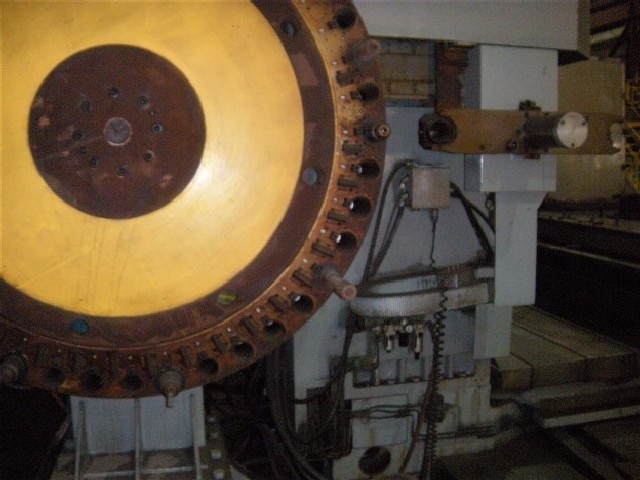

AUTOMATIC TOOLCHANGER CAP. 40 TOOLS
TABLE CAPACITY 22,000 LBS.
MACHINE WEIGHT (APPROX.) 48,400 LBS.

EQUIPPED WITH:

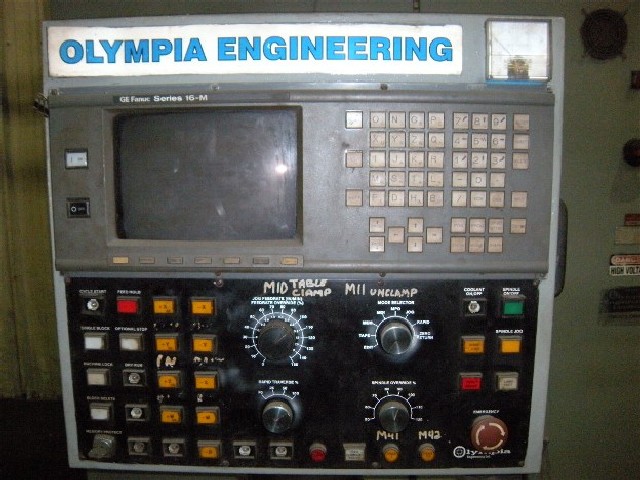

FANUC 16M CNC CONTROL
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
