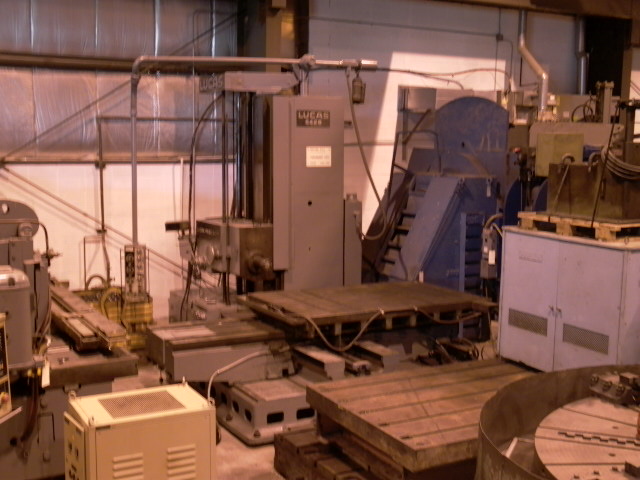

5", LUCAS, No. 542B,TBL 60"x86",SPNDL SIZE 5", SPNDL TAPER #50,30HP, 1974,

GENERAL SPECIFICATIONS:
NEW APPROXIMATELY----------------------------1974
SPINDLE SIZE---------------------------------5"
TABLE SIZE-----------------------------------60" x 86"
--OVER COOLANT TROUGH------------------------60" x 98"
SPINDLE TRAVEL-------------------------------36"
TABLE TRAVEL: X------------------------------72"
--------------Y------------------------------72"
--------------Z------------------------------45"
SPINDLE TAPER--------------------------------#50
RPM RANGE------------------------------------10-1220
HORSEPOWER-----------------------------------30
RATED LOAD CAPACITY 34,000 LBS
MACHINE WEIGHT APPROXIMATELY-----------------61,500 LBS.

EQUIPPED WITH:
SONY Z AXIS DRO
PRESELECT RPM & FEED
TOOLING
ROTARY AVAILABLE AT ADDITIONAL CHARGE
TRAV-A-DIAL ON TABLE (Z)
