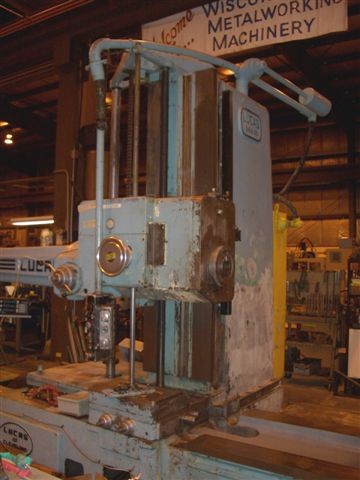

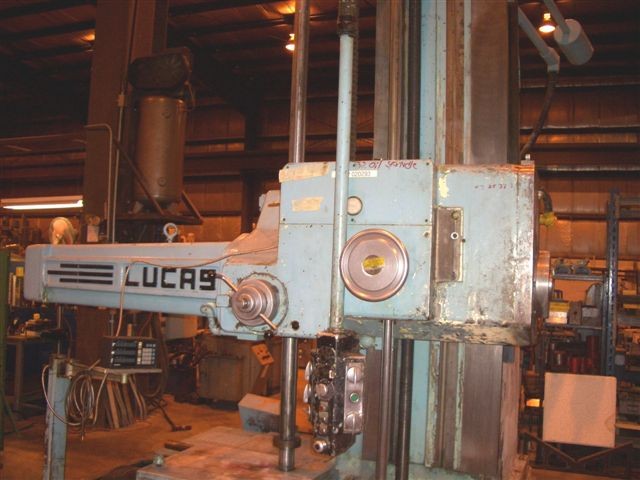

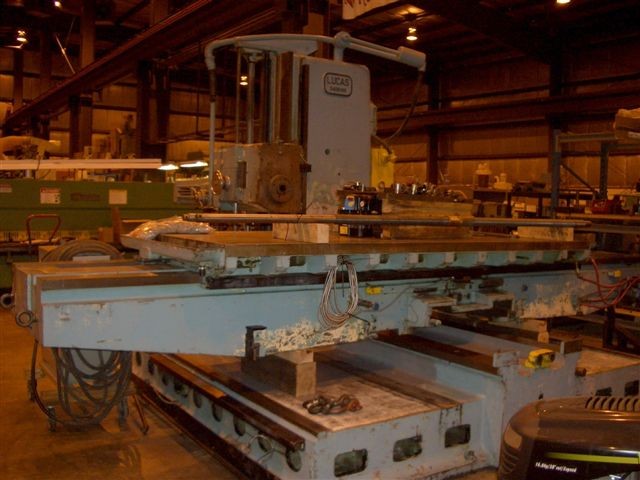

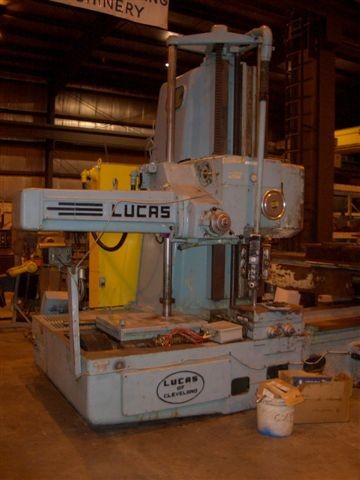

5" LUCAS MDL 542B120, 48" x 120" TBL, 72" x 108" x 60" TRVLS, 50 NMTBA TAPER, 25 HP, PENDENT CNTRL

GENERAL SPECIFICATIONS:
MANUFACTURER LUCAS
MODEL 542B120
SERIAL # 42B3216
NEW (APPROX.) 1963
TABLE SIZE 48" x 120"
TRAVEL (SADDLE) 72"
TRAVEL (CROSS) 108"
TRAVEL (VERTICAL) 60"
SPINDLE TAPER 50 NMTBA
SPINDLE MOTOR 25 HP
SPINDLE DIAMETER 5"
SPINDLE TRAVEL 36"
SPINDLE SPEED (26) 10 - 1220 RPM
FEED RANGE .0001 - 1.038 IPR
ELECTRICS 480/60/3
WEIGHT (APPROX.) 75,000 LBS.

EQUIPPED WITH
POWER DRAW BAR

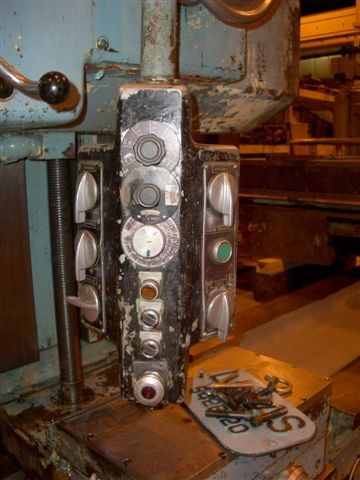

PENDENT CONTROL
HARDENED & GROUND WAYS
3-AXIS DIGITAL READOUT
