Specifications
Equipped With
GENERAL SPECIFICATIONS:

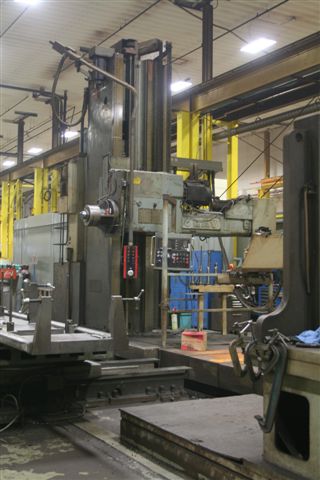

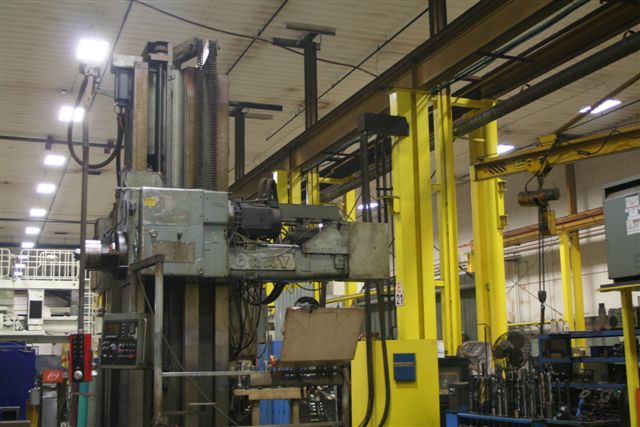

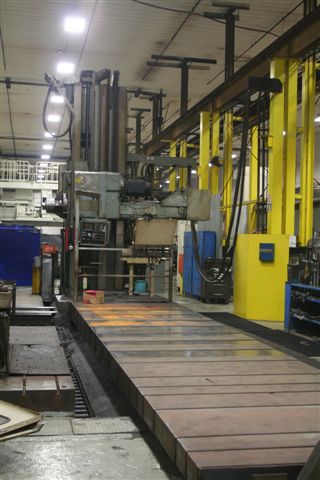

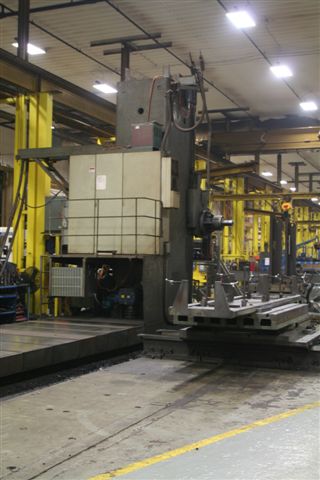

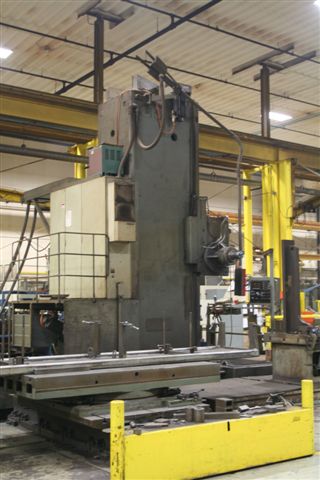

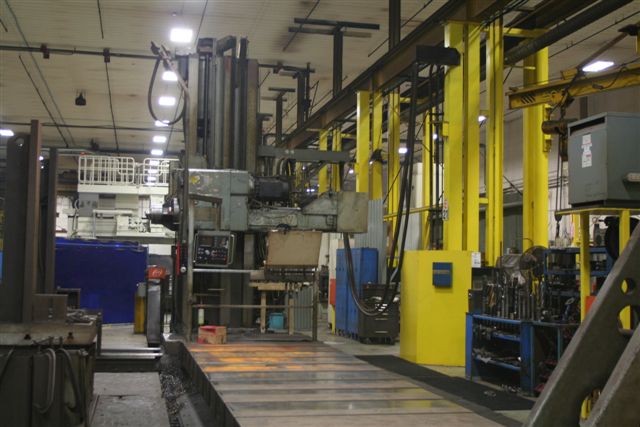

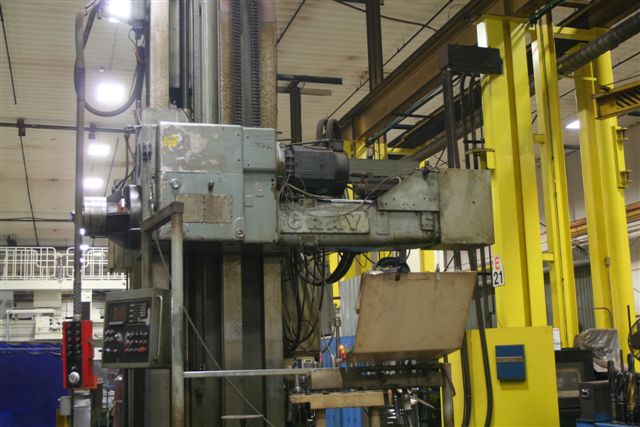

MANUFACTURER........................GRAY
MODEL...............................550F
SPINDLE DIAMETER....................5" (127 MM)
SPINDLE TAPER.......................CAT. 50
SPINDLE TRAVEL......................32" (812 MM)

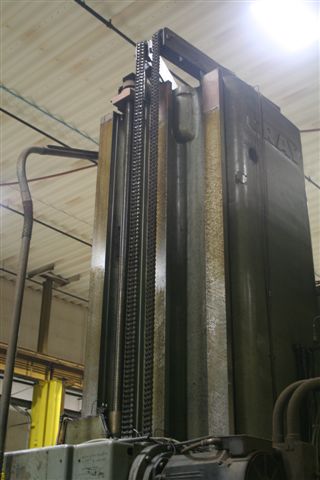

HEADSTOCK VERTICAL TRAVEL (Y).......126" (3200 MM)
COLUMN TRAVEL (X)...................396" (10,050 MM)
RPM RANGE (4 RANGES)................1-1000 RPM
RAPIDS..............................150 IPM
OVERALL HEIGHT......................21'
EQUIPPED WITH
MACHINE RESCRAPED/REWORKED/RETROFITTED IN 95-2000
AT A COST OF $600,000 U.S. DOLLARS, DOCUMENTATION AVAILABLE

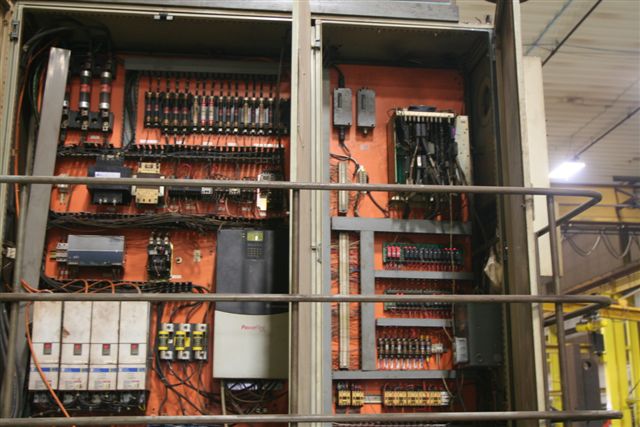

DYNAPATH DELTA 20 CONTOURING CNC CONTROL CONTROLLING X,Y,Z
AND THE IN/OUT OF THE ROTARY TABLE (OPTIONAL),
SPINDLE SPEEDS, AND FEEDS
PENDENT CONTROL
SPINDLE SUPPORT
REXROTH AXIS DRIVES
ALLEN BRADLEY SPINDLE DRIVE
40 HP AC SPINDLE MOTOR
CHIP CONVEYOR
OPTIONAL EQUIPMENT
GIDDING & LEWIS 72" X 108" ROTARY TABLE MOUNTED ON A 72" CNC CONTROLLED SLIDE $109,500
36"(915)X 72"(1829) RISER
MACHINE UNDER POWER IN PLANT. GO TO THE LINK BELOW FOR A VIDEO
