Specifications
Equipped With
GENERAL SPECIFICATIONS:

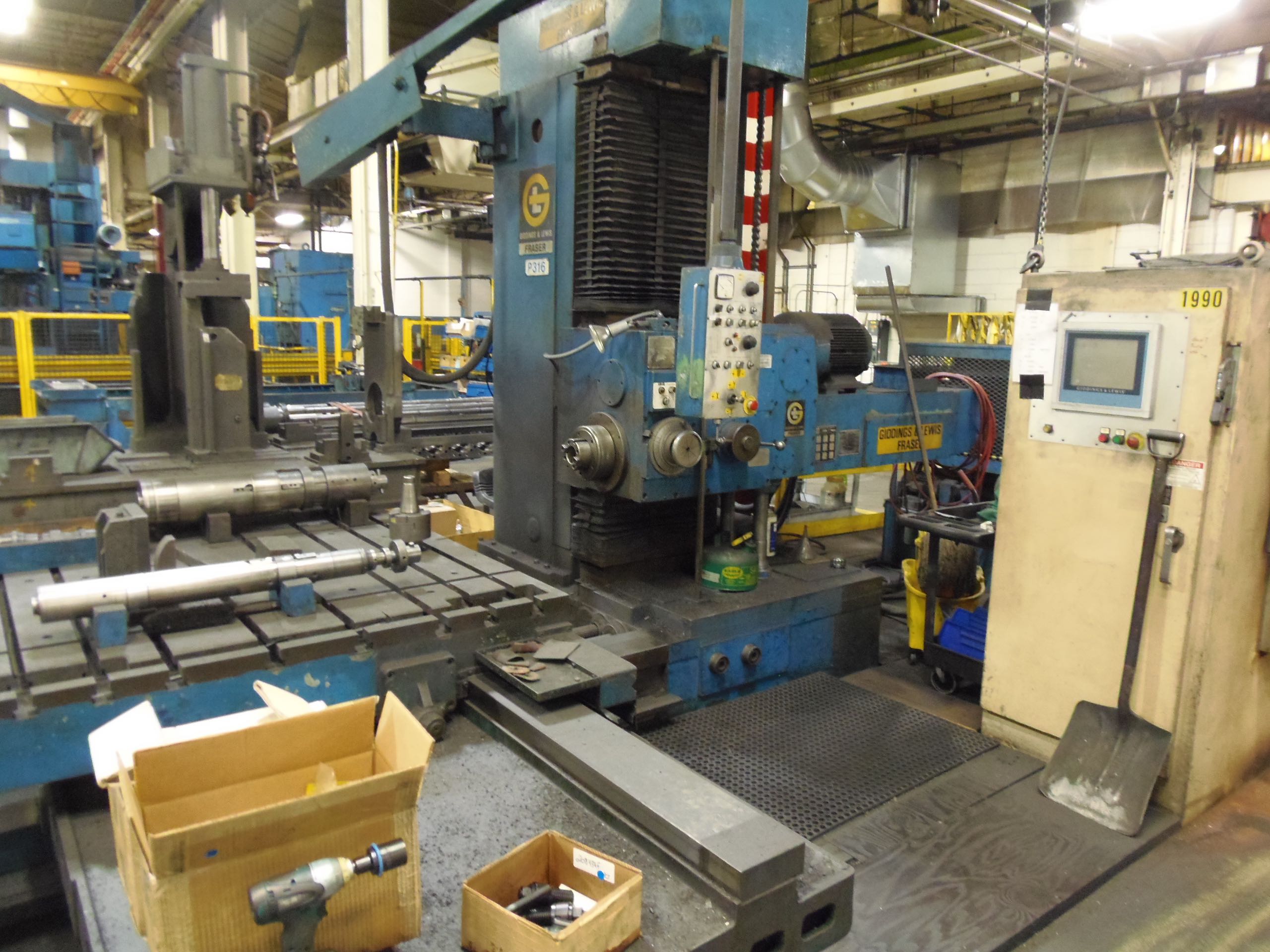

MANUFACTURER......................... GIDDINGS & LEWIS
MODEL................................ 80G-130T
NEW (APPROX.)........................ 1973
RETROFITTED AND REWORKED............. 1996
SERIAL............................... #410-1040
SPINDLE DIAMETER..................... 5"
TAPER IN SPINDLE..................... #50
Y TRAVEL (VERTICAL HEAD)............. 60"
X TRAVEL (TABLE CROSS)............... 96"
W TRAVEL (SADDLE).................... 60"
Z TRAVEL (SPINDLE)................... 36"
SPINDLE SPEEDS....................... 5.8 - 1120 RPM
TABLE SIZE........................... 60" x 96"
SPINDLE FEEDS........................ .0007 - .250 IPR
SPINDLE DRIVE MOTOR.................. 25 HP
EQUIPPED WITH:

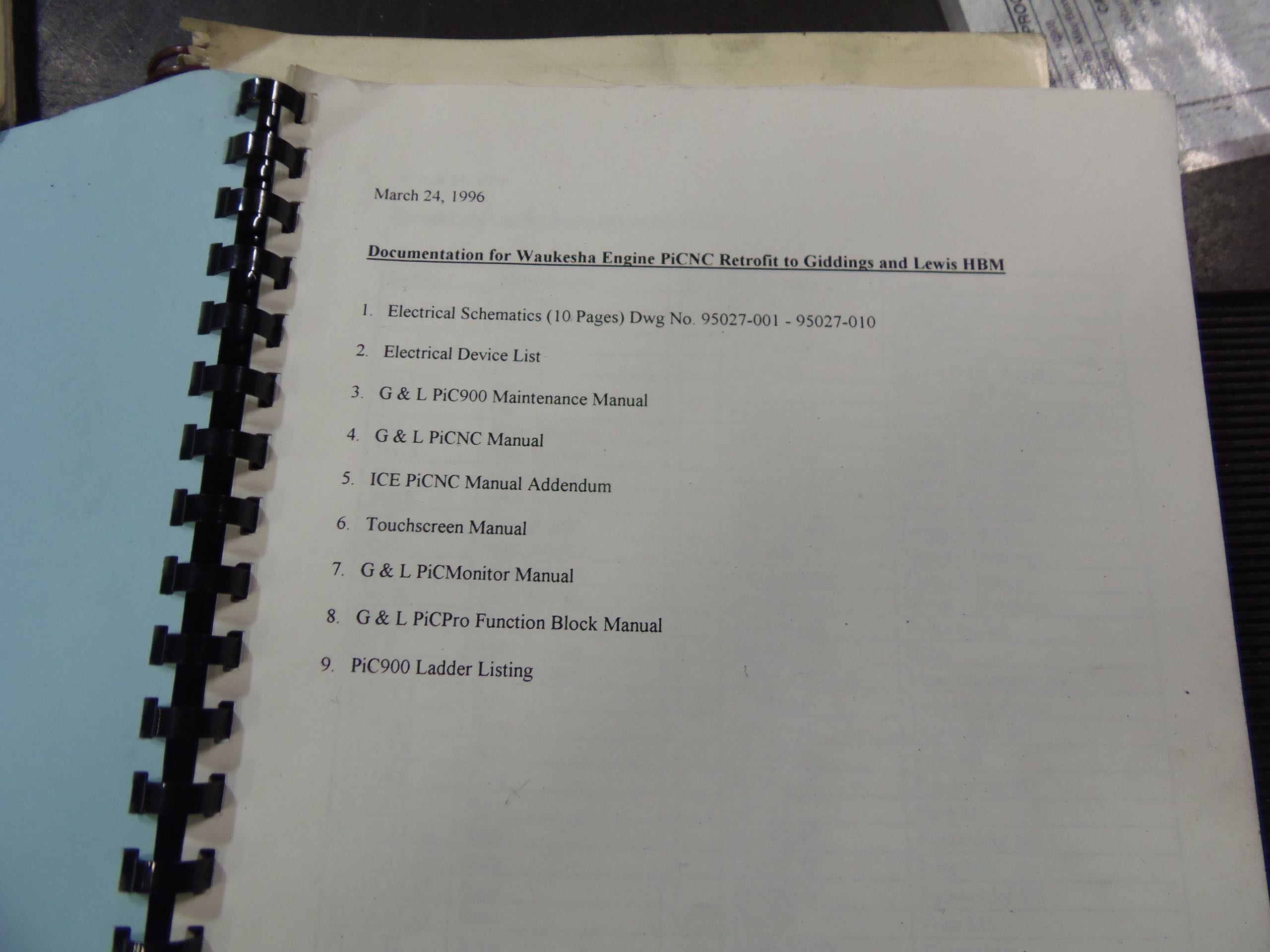

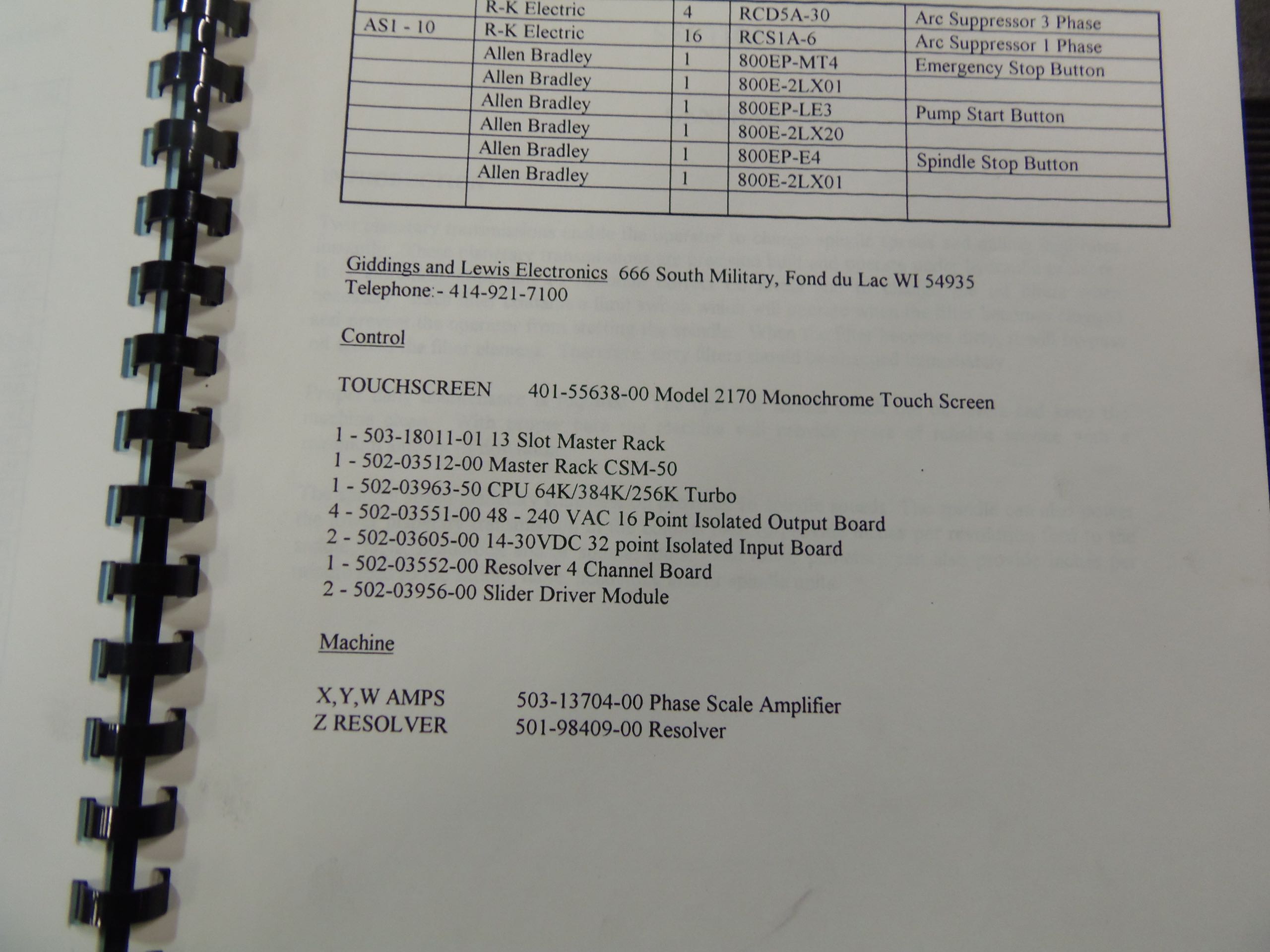

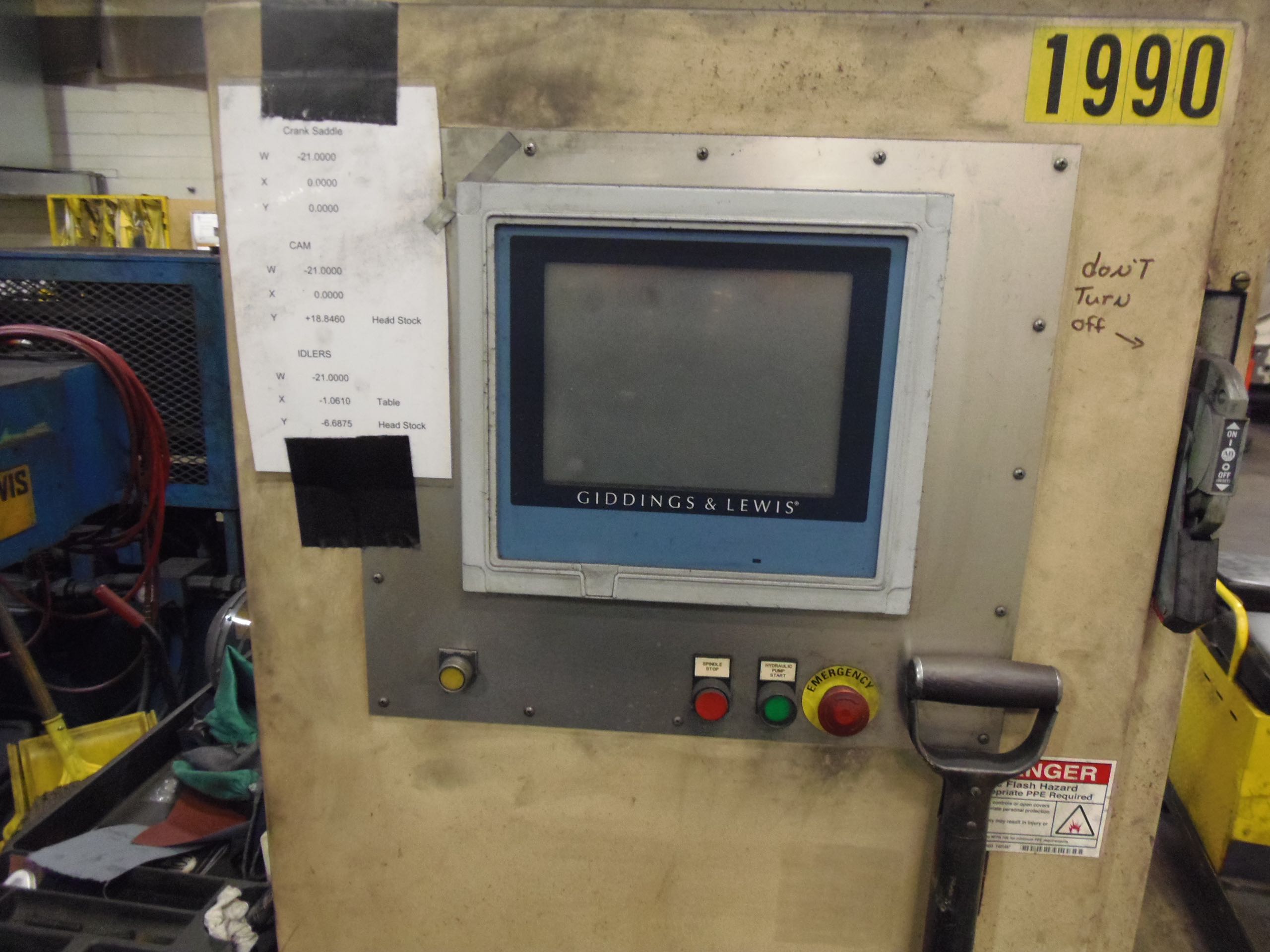

REWORKED AND RETROFITTED IN 1996 WITH G&L PiC900 CONTROL
HARDENED WAYS ON ALL AXES
BALL SCREWS
POWER DRAW BAR
TELESCOPING WAY COVERS
DOUBLE OUTRIGGER TABLE SUPPORTS
CHIP CONVEYOR
POWER DRAW BAR
APPROX. FLOOR SPACE 14' LR X 23' W/HYD OR 18' X 10'4" HIGH
