GENERAL SPECIFICATIONS:

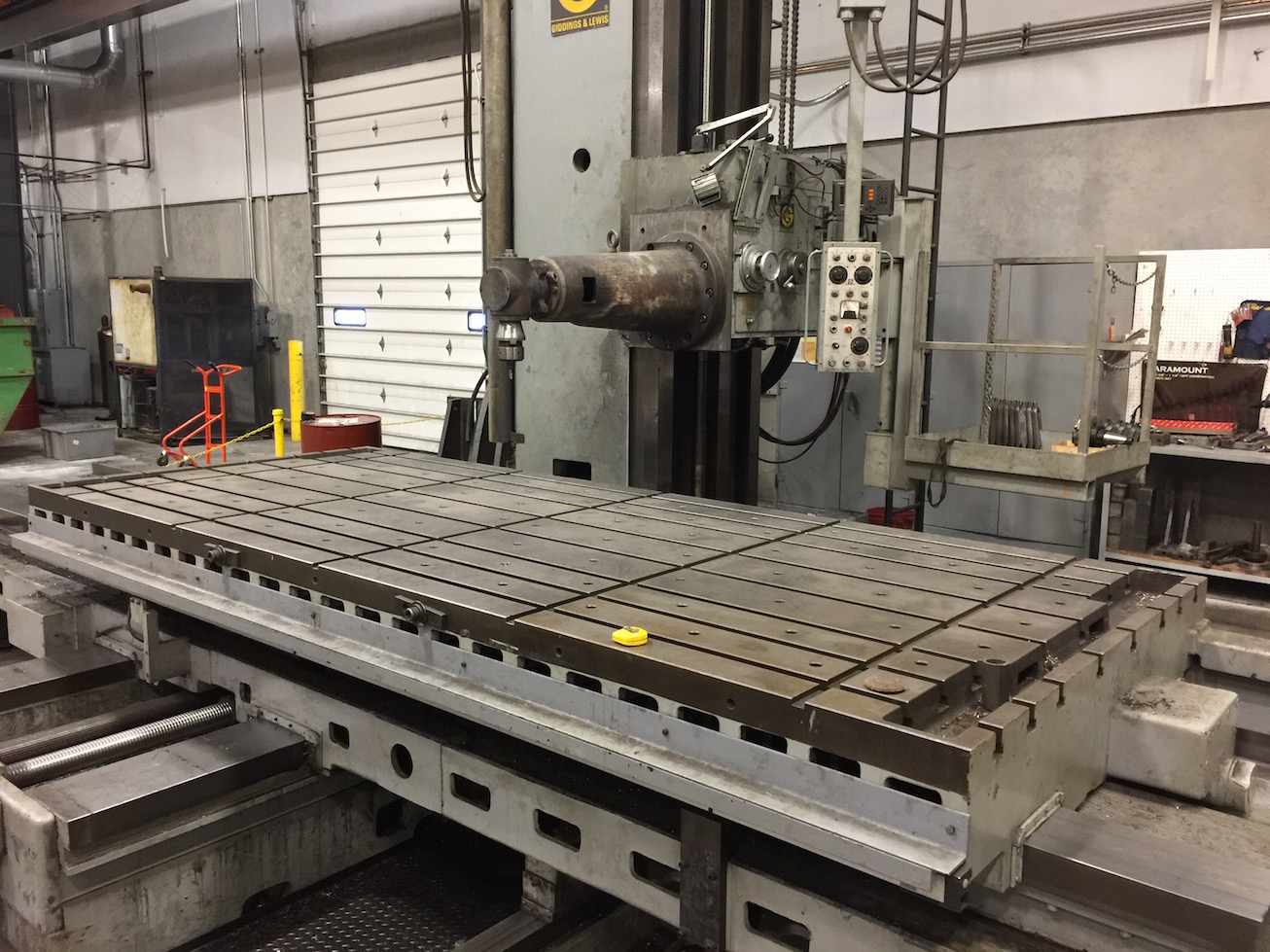

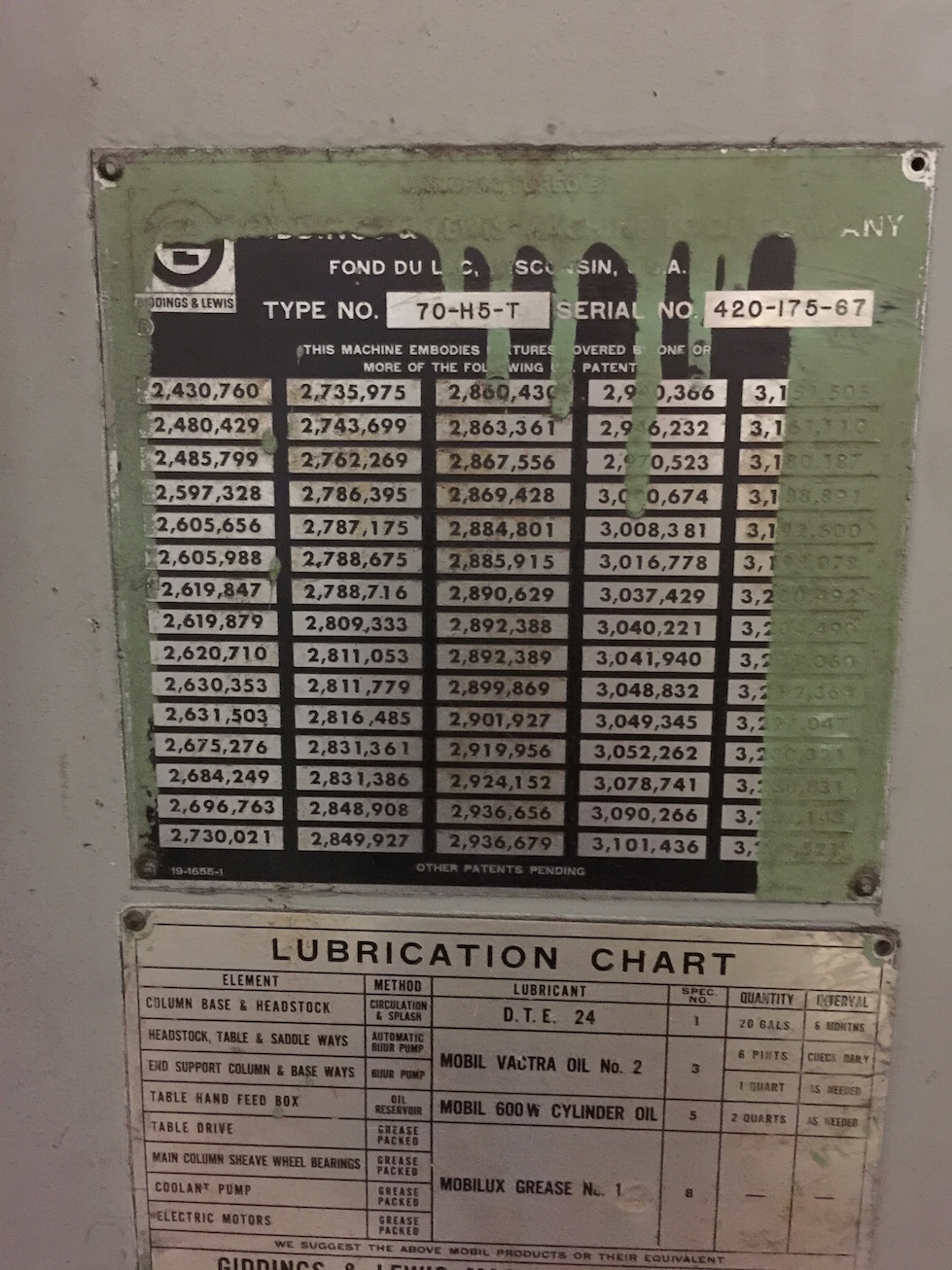

MANUFACTURER......................... GIDDINGS & LEWIS
MODEL................................ 70-H5-T
NEW.................................. 1967
SERIAL............................... #420-175-67
SPINDLE DIAMETER..................... 5"
TAPER IN SPINDLE..................... #50
Y TRAVEL (VERTICAL HEAD)............. 96"
X TRAVEL (TABLE CROSS)............... 132"
W TRAVEL (SADDLE).................... 65"
Z TRAVEL (SPINDLE)................... 36"
SPINDLE SPEEDS....................... 5.8 - 1120 RPM
TABLE SIZE........................... 72" x 144"
SPINDLE FEEDS........................ .0007 - .250 IPR
SPINDLE DRIVE MOTOR.................. 40 HP
EQUIPPED WITH:

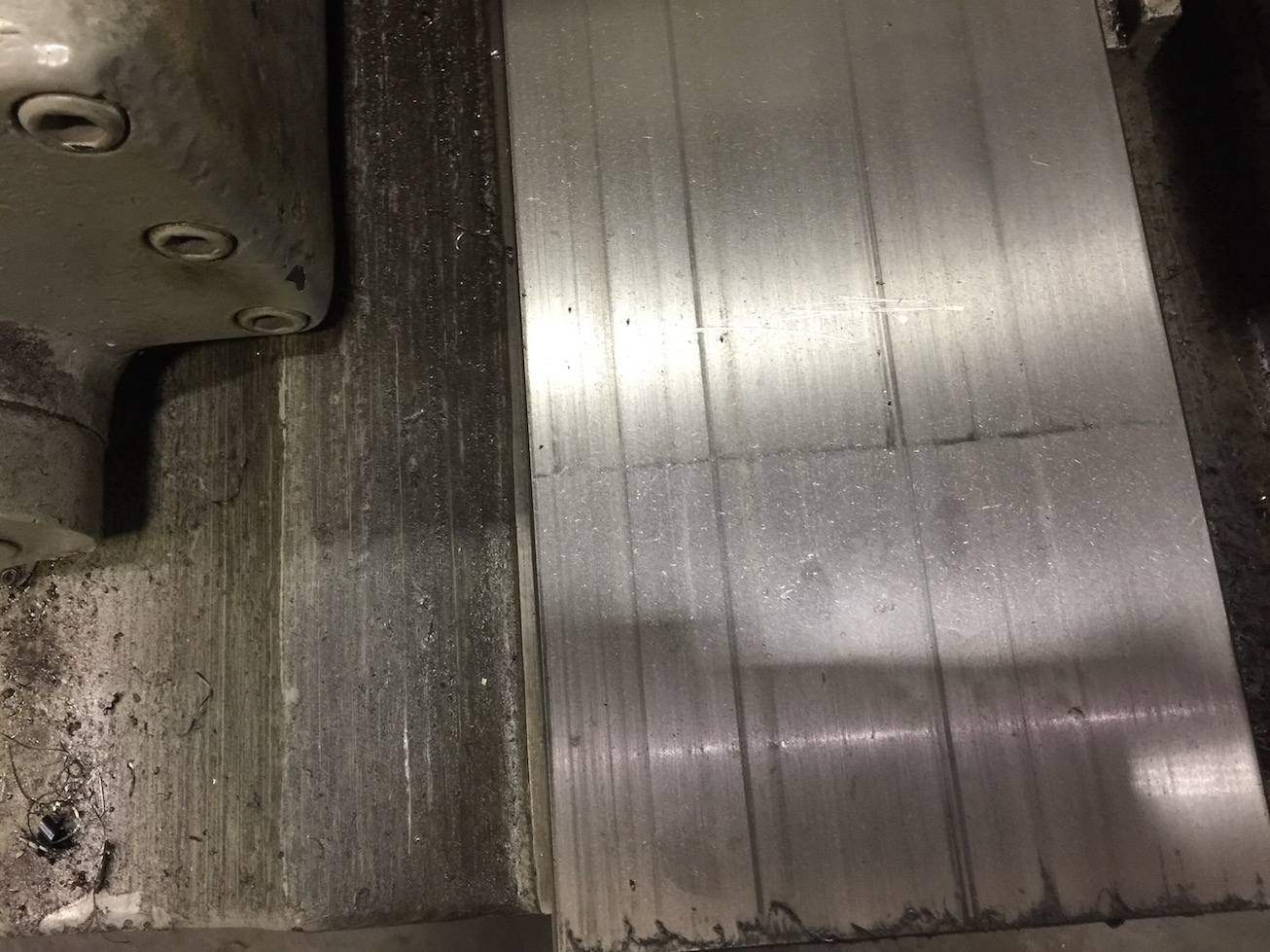

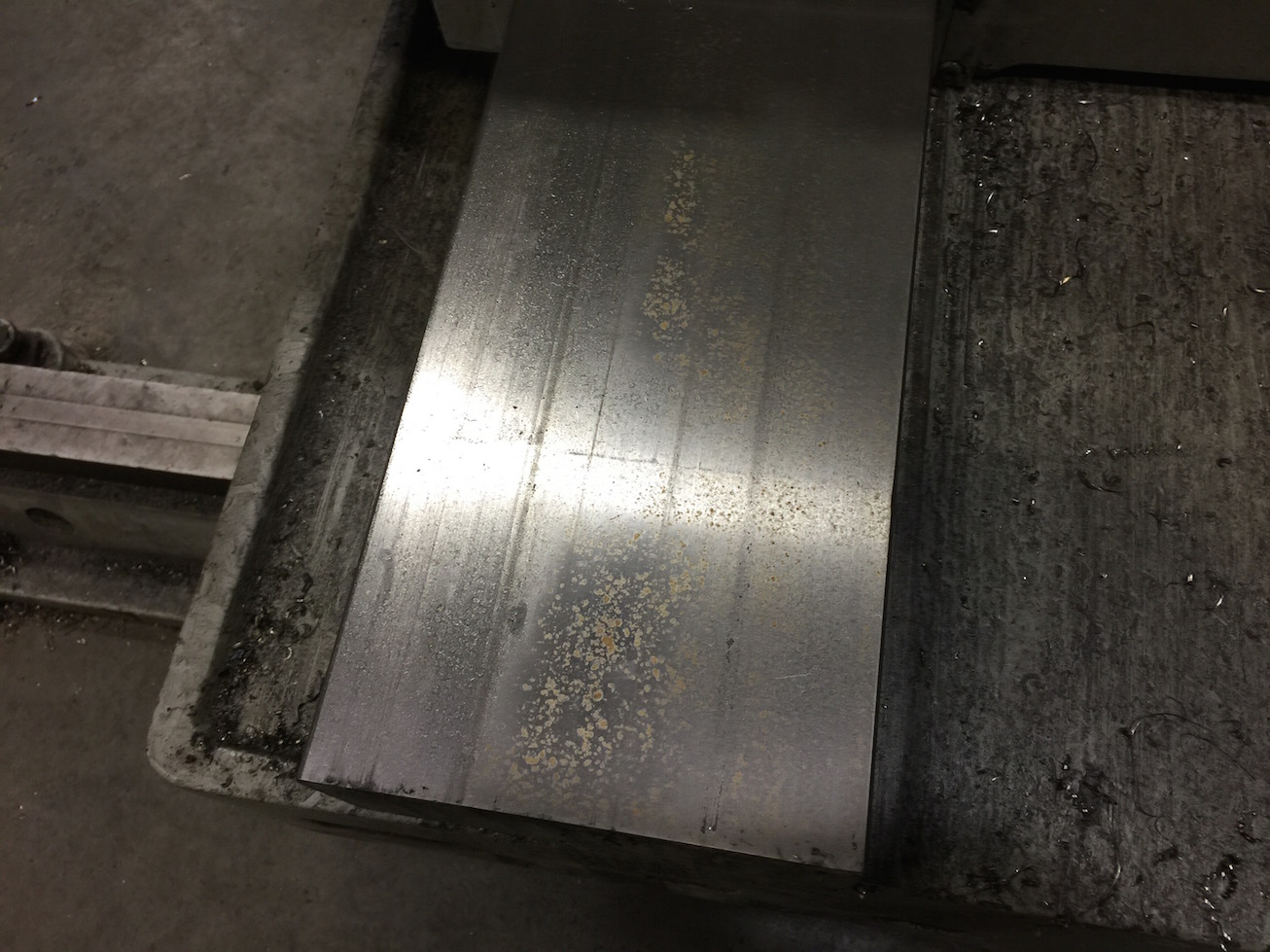

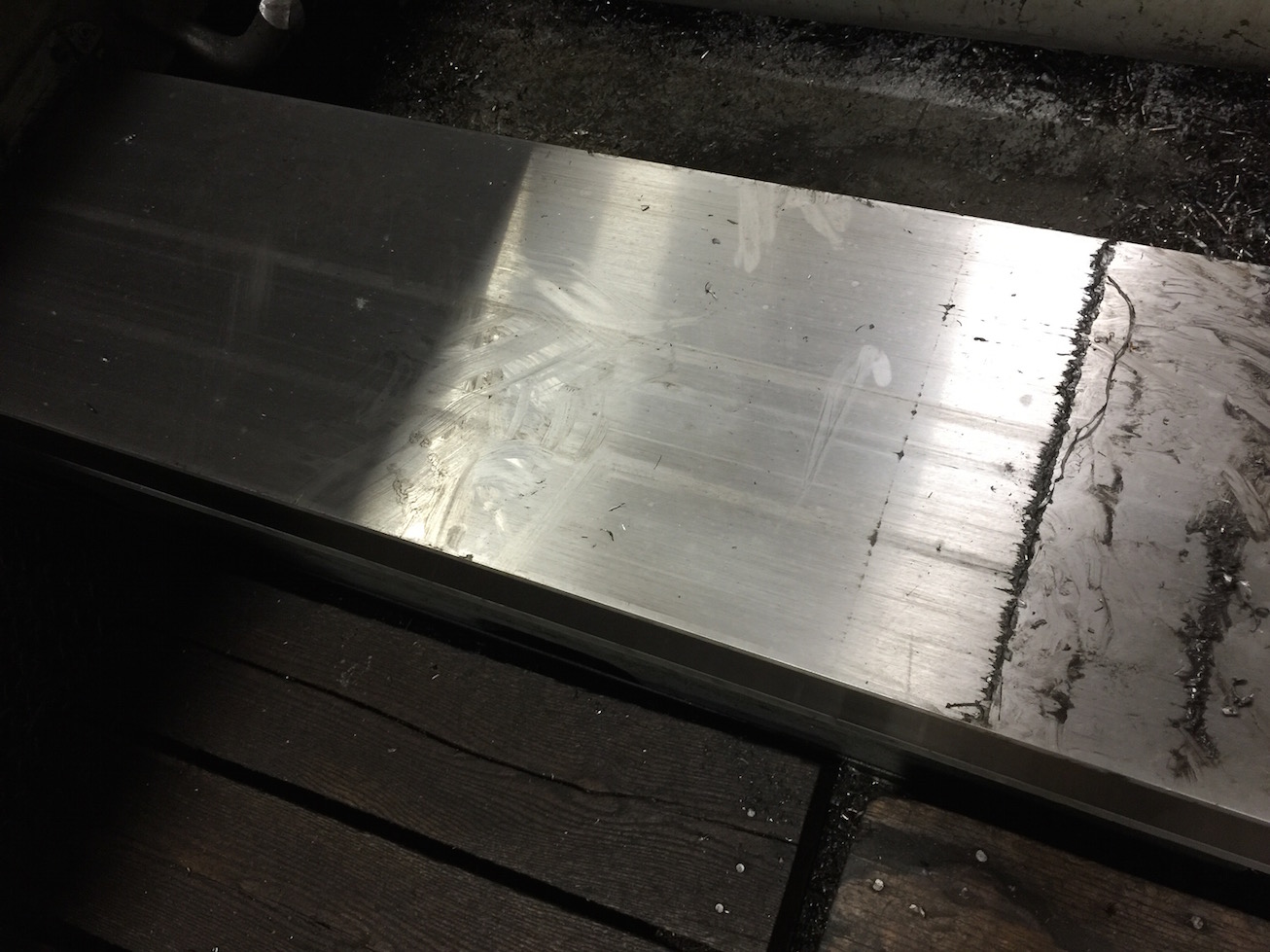

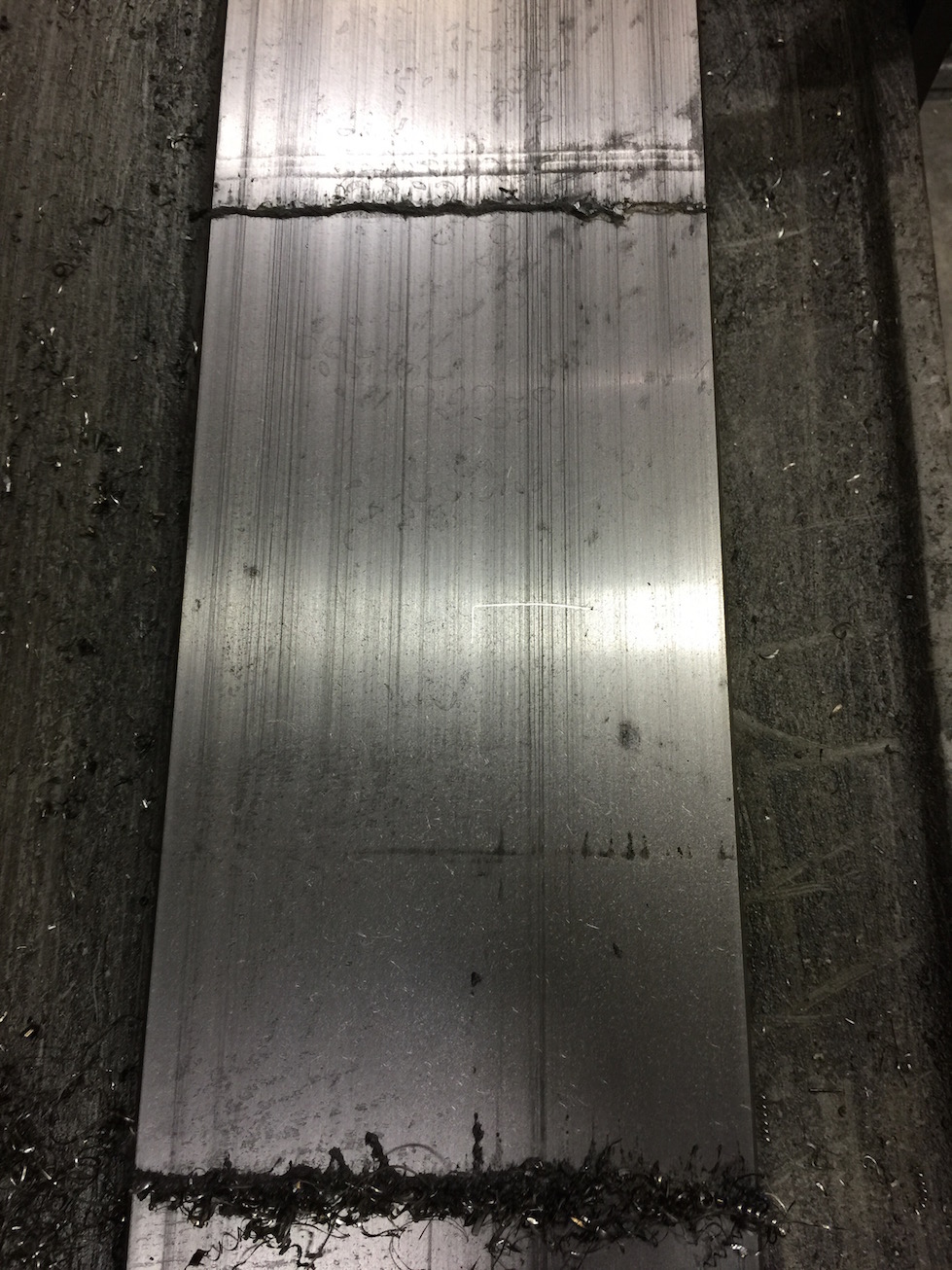

HARDENED WAYS ON ALL AXES

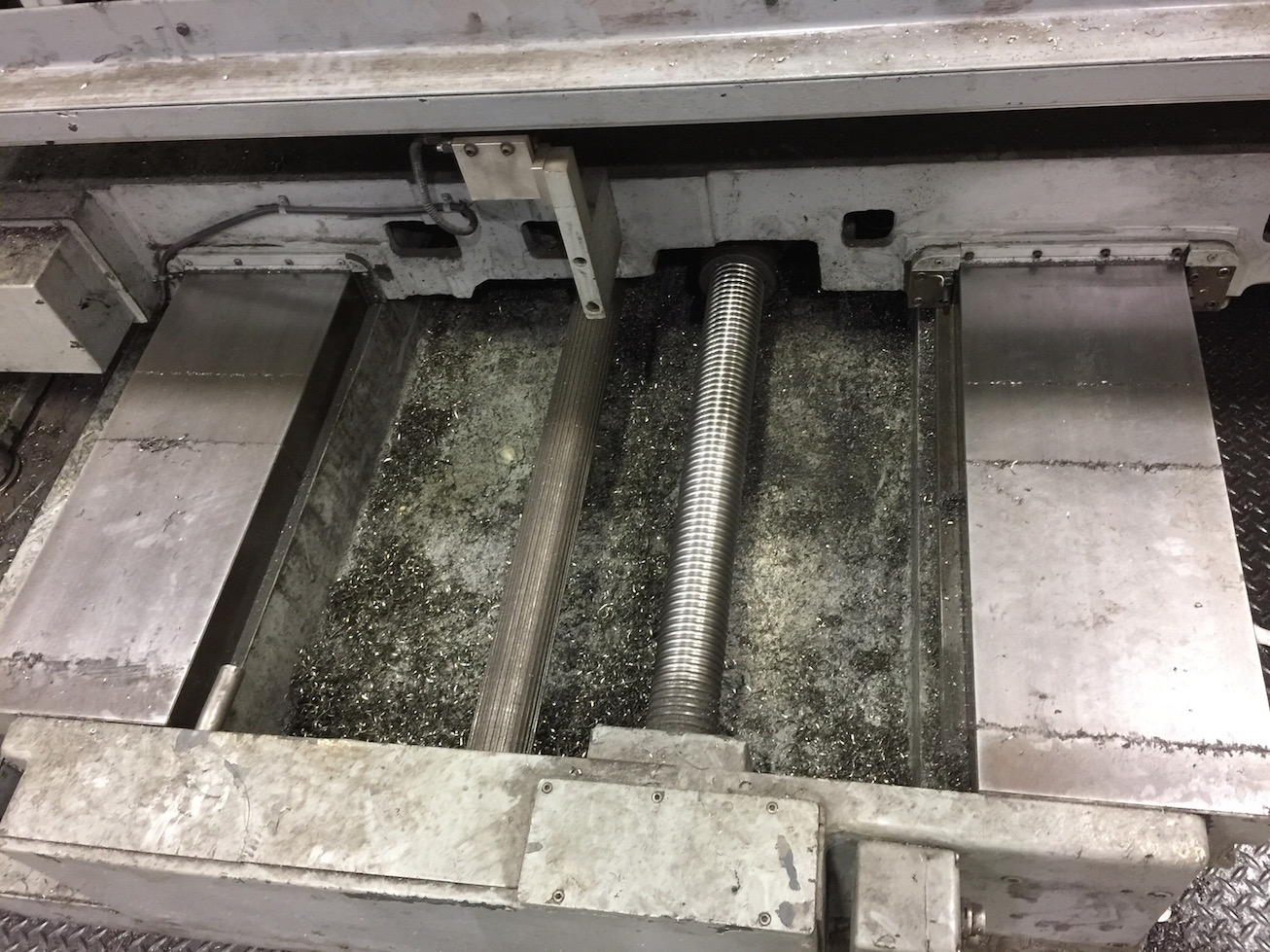

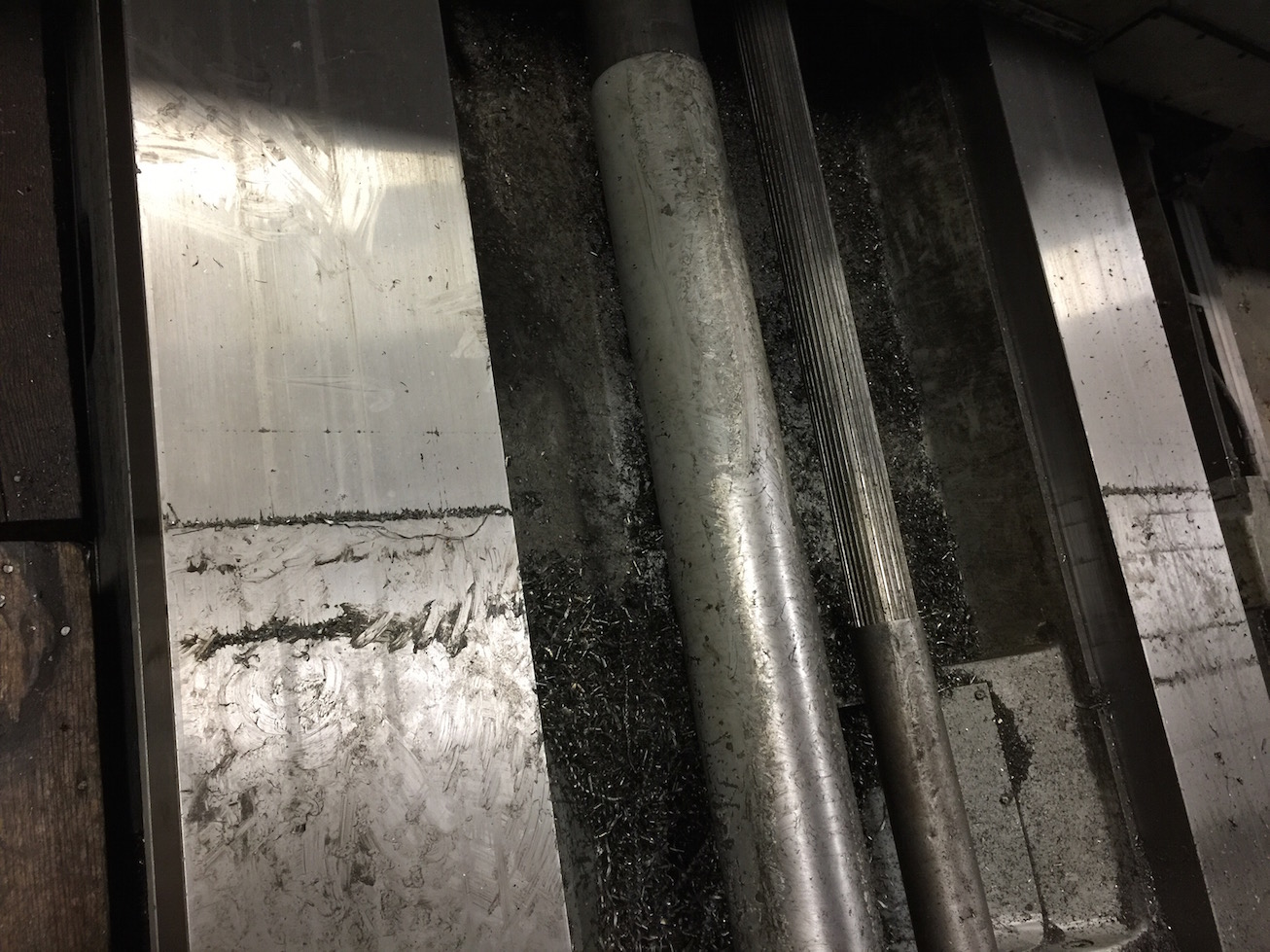

BALL SCREWS ON HEAD, TABLE, AND SADDLE
POWER DRAW BAR

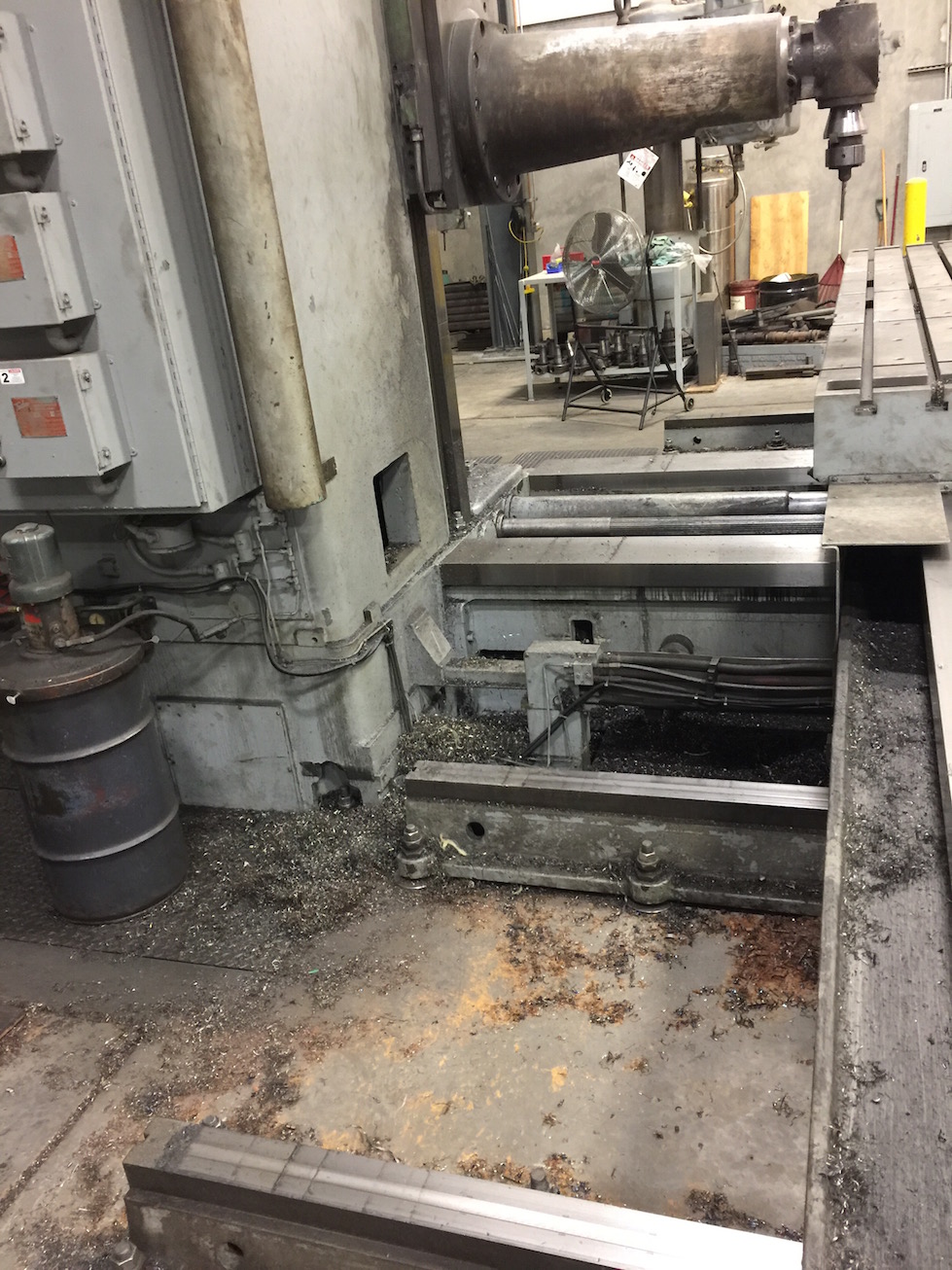

DOUBLE OUTRIGGER TABLE SUPPORTS

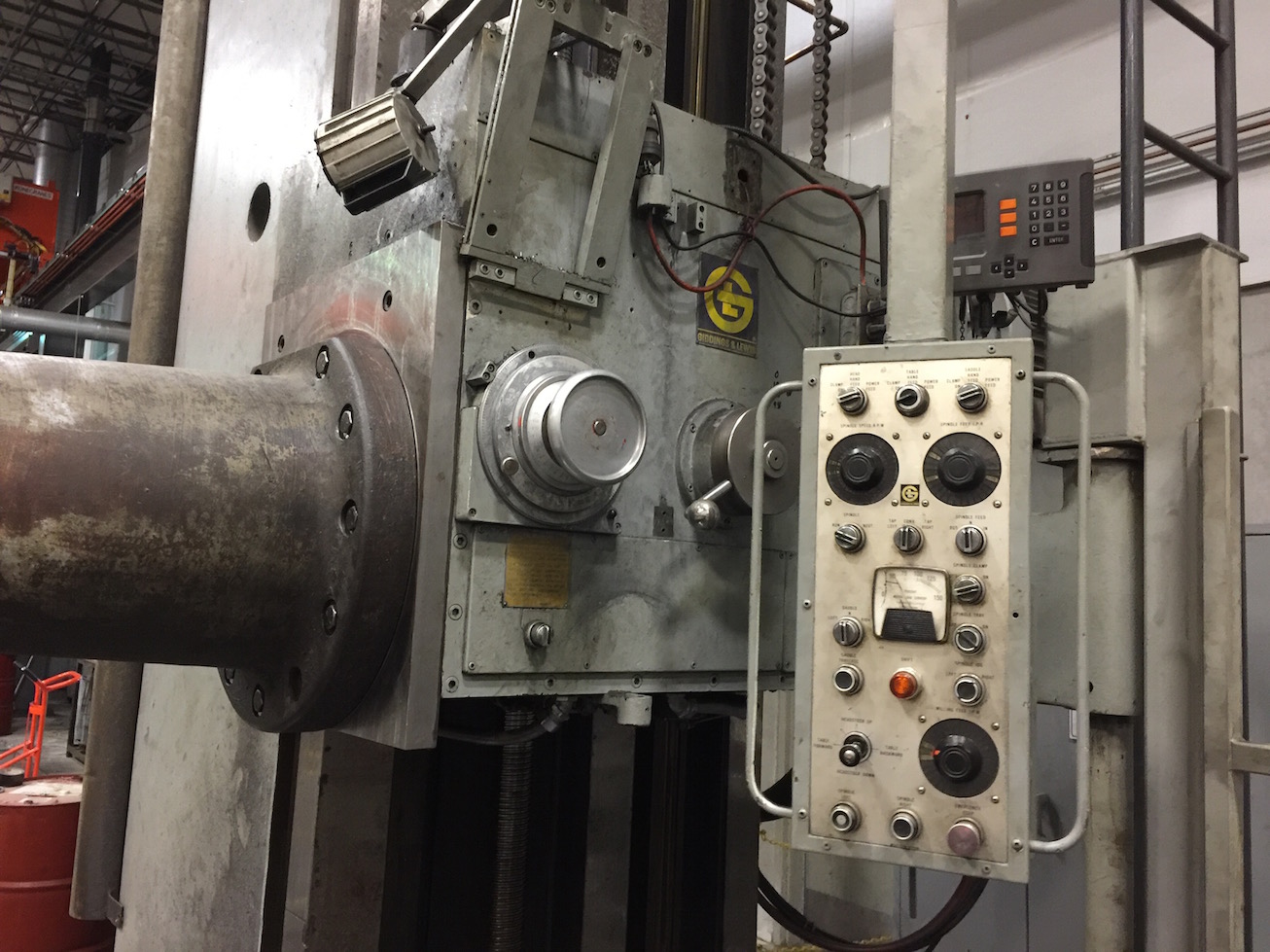

DIGITAL READOUT

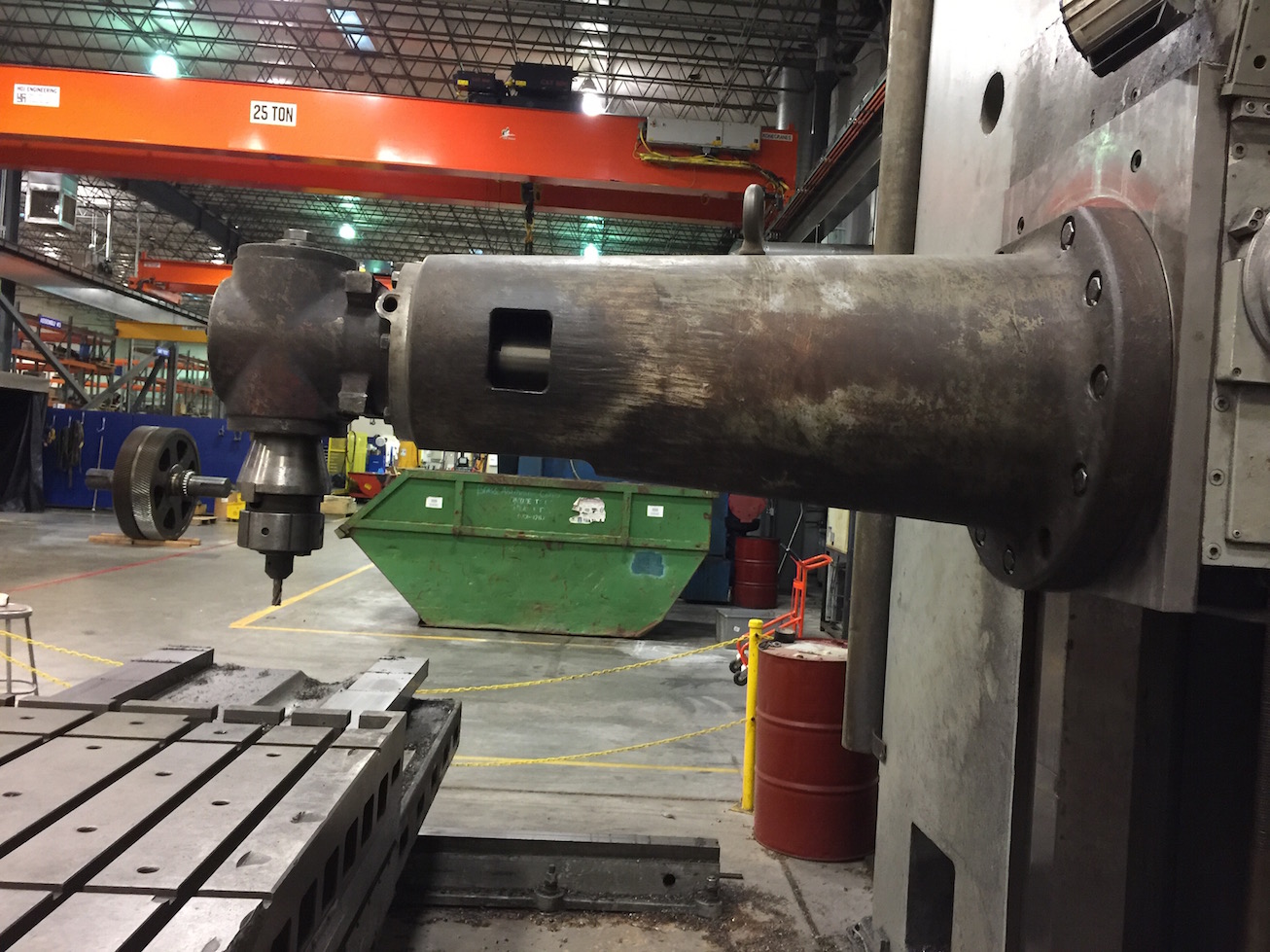

RIGHT ANGLE HEAD WITH EXTENSION
MISC. TOOLING
