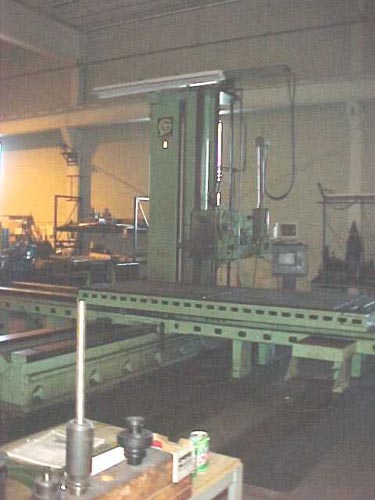

5" G & L, 60" X 146" TABLE, 102 VERT., 50 TAPER, COMMANDO 1110 CONTROL

GENERAL SPECIFICATIONS:
SERIAL # 150-968
MODEL # DP5-T
NEW APPROXIMATELY 1970/1995
SPINDLE DIAMETER 5"
TABLE SIZE 60" x 146"
CROSS TRAVEL 132"
VERTICAL HEADSTOCK TRAVEL 102"
LONGITUDINAL SADDLE TRAVEL 108"
Z AXIS SPINDLE TRAVEL 30"
SPEED RANGE 7.5 - 975 RPM
MAIN MOTOR 30 HP
OVERALL HEIGHT 14'
LOAD CAPACITY 40,000 LBS

EQUIPPED WITH:
HARD BED AND SADDLE WAYS
DOUBLE OUTRIGGERS TO EACH SIDE OF SADDLE
PENDANT CONTROL
ANILAM SERIES 1100 COMMANDO CNC CONTROL
REBUILT IN 1995
