Specifications
Equipped With
GENERAL SPECIFICATIONS:

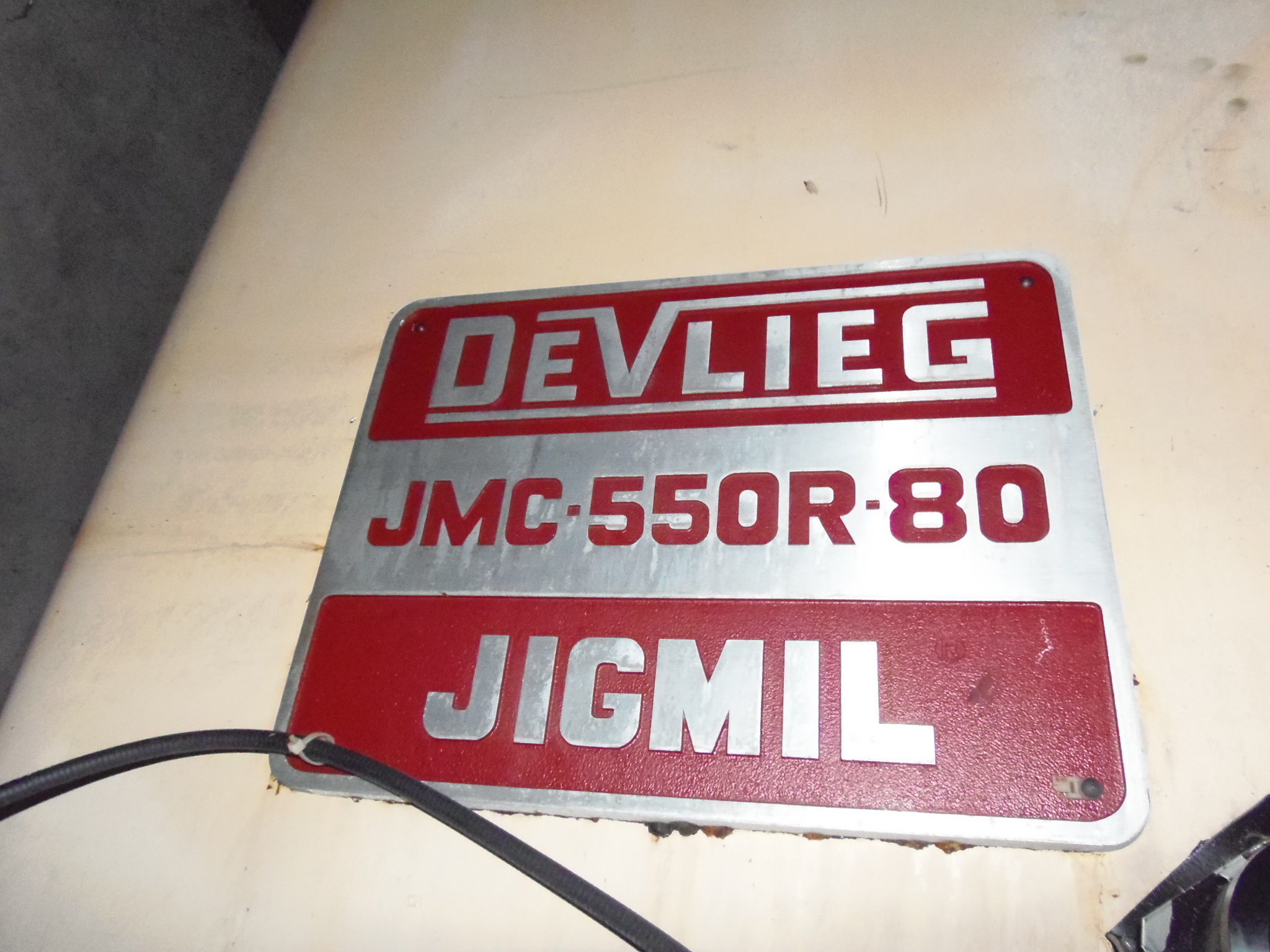

MODEL......................... JMC550R80
AGE APPROXIMATELY............. 1986
SPINDLE DIAMETER.............. 5"

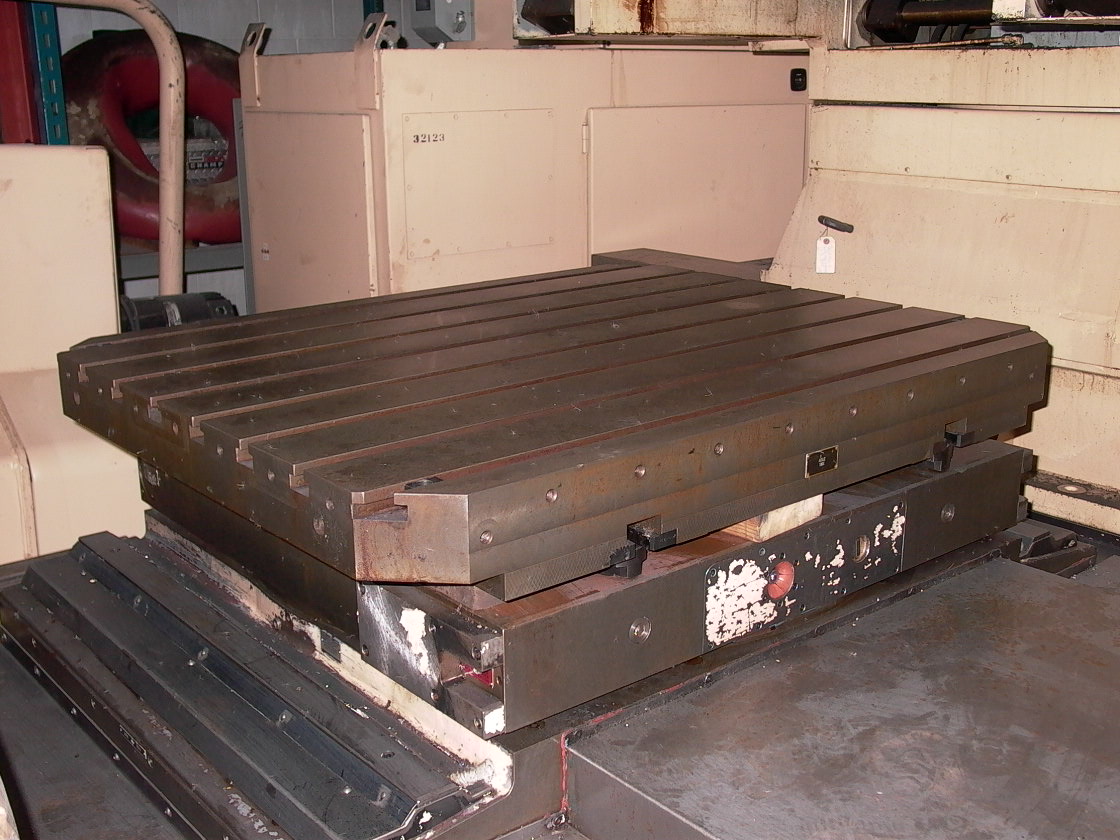

TABLE AREA.................... 40" X 50"
TABLE ROTATION (B AXIS)....... FULL 4TH AXIS (360,000)
TRAVELS (X)................... 80"
(Y)........................... 60"
(Z)........................... 40"
(W) QUILL..................... 24"
RAPID TRAVELS................. 300 IPM
SPINDLE TAPER................. NO. 50
SPINDLE SPEED................. 27-3,000 RPM
SPINDLE MOTOR................. 30 HP

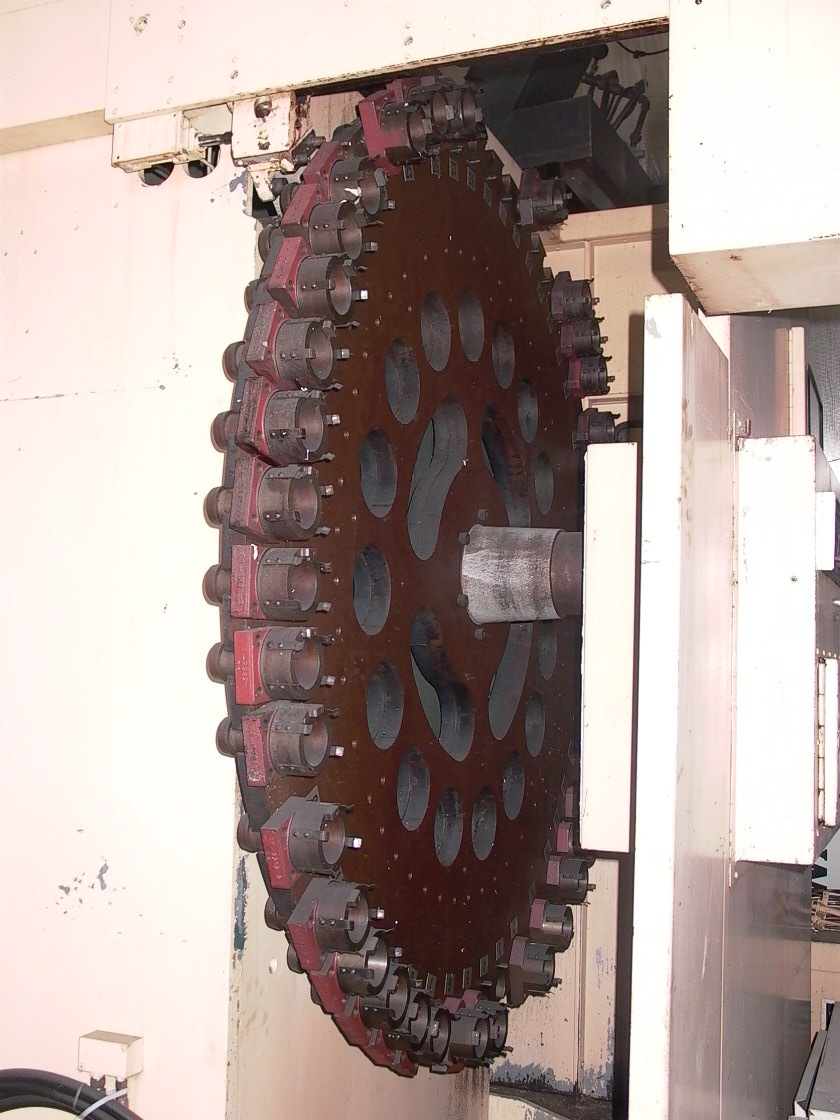

CONTINUOUS AUTO TOOL CHANGER.. 40 TOOLS
EQUIPPED WITH:
THRU SPINDLE & FLOOD COOLANT
DUAL PALLET SHUTTLE WITH LOADING STATION

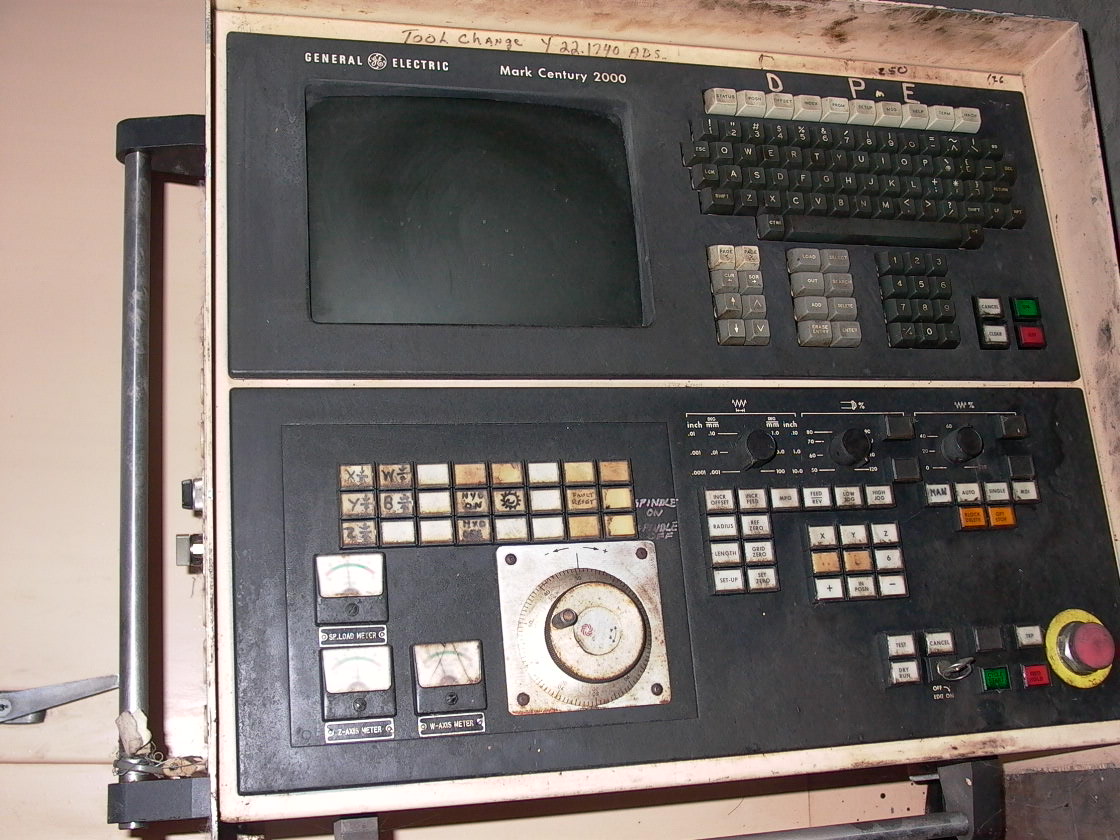

GENERAL ELECTRIC 2000 CNC CONTROL
TAPE READER,
RS232 SERIAL PORTS,
HELICAL PROGRAMMING,
TOOL TIME MONITOR,
MACHINE ERROR COMPENSATION,
SPINDLE ORIENTATION,
ADAPTIVE CONTROL, AND 500K STORAGE
