Specifications
Equipped With
GENERAL SPECIFICATIONS:
MODEL JMC55R80
AGE APPROXIMATELY 1986
SPINDLE DIAMETER 5"
TABLE AREA 40" X 50"
TABLE ROTATION (B AXIS) FULL 4TH AXIS (360,000)
TRAVELS (X) 80"
(Y) 80"
(Z) 40"
(W)QUILL 24"
RAPID TRAVELS 300 IPM
SPINDLE TAPER NO. 50
SPINDLE SPEED 27-3,000 RPM
SPINDLE MOTOR 30 HP CONTINUOUS
AUTO TOOL CHANGER 40 TOOLS
EQUIPPED WITH:
THRU SPINDLE & FLOOD COOLANT

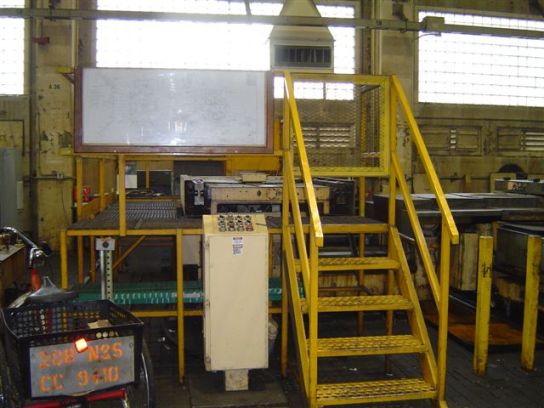

DUAL PALLET SHUTTLE WITH LOADING STATION

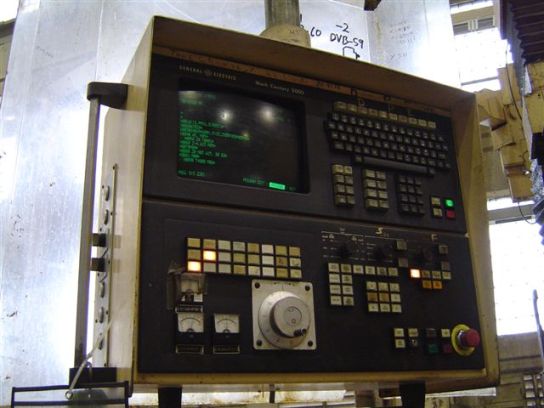

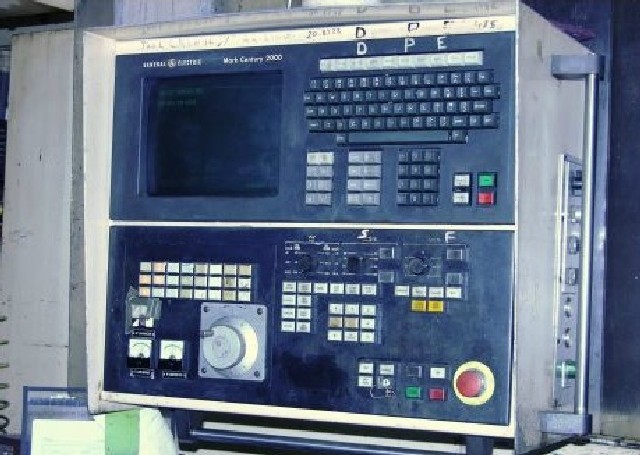

GENERAL ELECTRIC 2000 CNC CONTROL
TAPE READER, RS232 SERIAL PORTS, HELICAL PROGRAMMING,TOOL TIME MONITOR, MACHINE ERROR COMPENSATION, SPINDLE ORIENTATION, ADAPTIVE CONTROL, AND 500K STORAGE
2 MACHINES AVAILABLE
