Specifications
Equipped With
GENERAL SPECIFICATIONS:

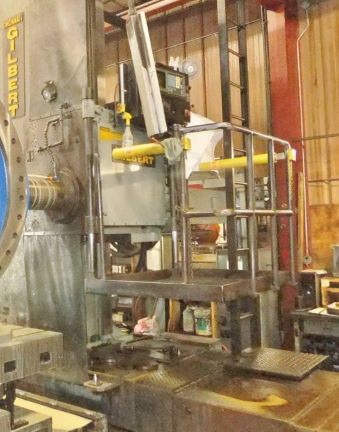

MAKE............................ CINCINNATI-GILBERT
MODEL........................... DF
AGE (YEAR)...................... 1993

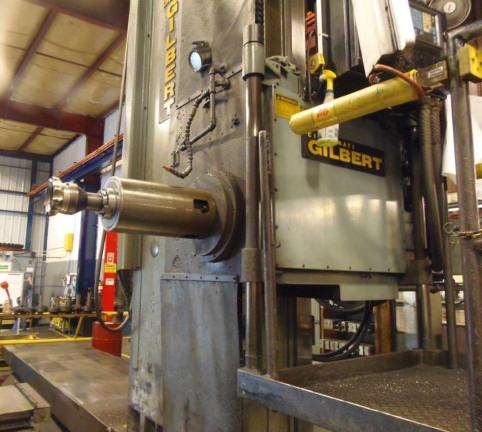

SPINDLE DIAMETER................ 5"
SPINDLE TAPER................... 50
VERT. TRAVEL HEADSTOCK (Y-AXIS). 72"
HORZ. TRAVEL COLUMN (X-AXIS).... 180"
SPINDLE TRAVEL (Z-AXIS)......... 36"
SPINDLE SPEED (MAX)............. 1800 RPM
SPINDLE MOTOR................... 30 HP
EQUIPPED WITH:

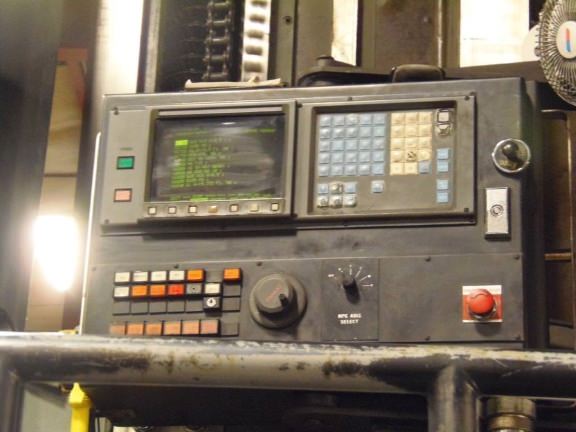

FANUC 15M CONTROL

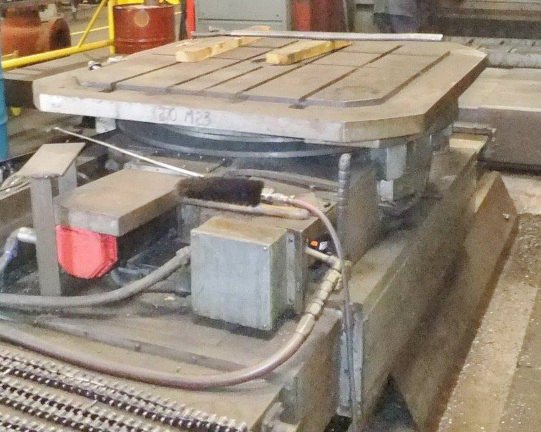

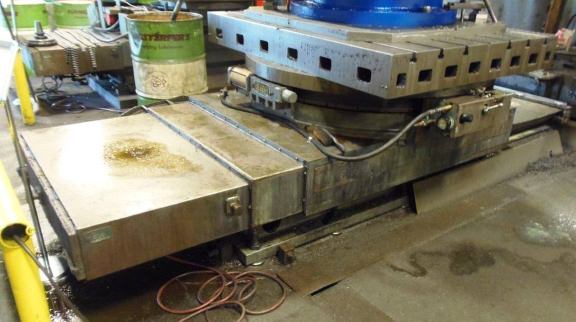

72" X 60" AIRLIFT ROTARY TABLE ON IN-FEEDING SIDE
42" X 42" 4-POS PROG. TABLE ON IN-FEEDING SIDE
POWER DRAW BAR
BALLSCREWS
RED CAP FANUC SERVO MOTOR

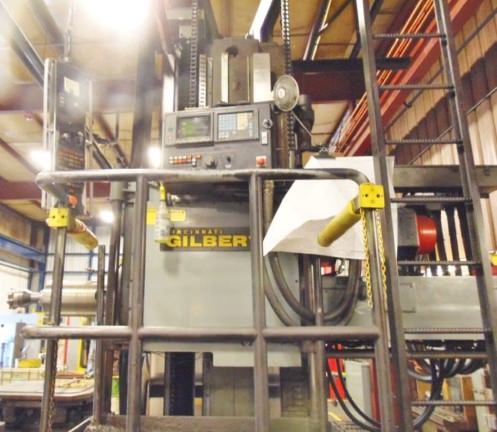

OPERATOR'S PLATFORM
TELESCOPING STEEL WAY COVERS ON X-AXIS
HARDENED & GROUND WAYS
CAN BE INSPECTED UNDER POWER - EAST COAST
SPECIFICATIONS SUBJECT TO VERIFICATION
