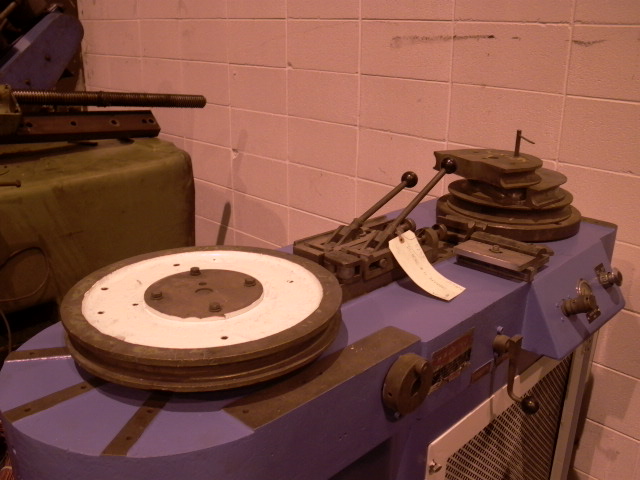

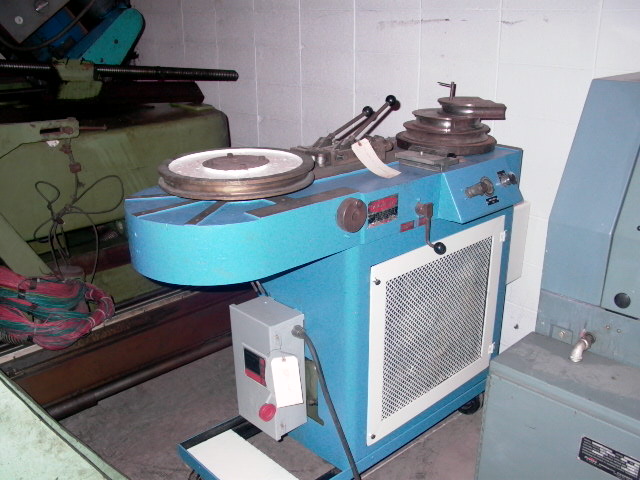

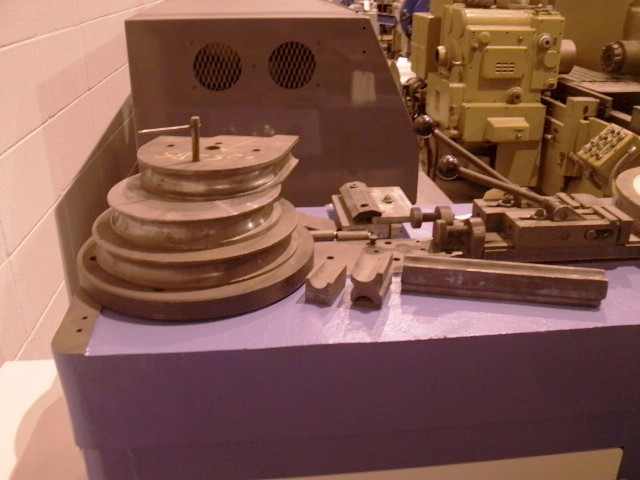

5/8", DI-ACRO, No. 6,3HP, 9" RADIUS CAPACITY, 1973

GENERAL SPECIFICATIONS:
MANUFACTURER DIACRO
MODEL 6
SERIAL # 156127337
NEW (APPROX.) 1973
RADIUS CAPACITY 9"
MAX. DEGREE OF BEND 280 DEG.
HYDRAULIC PRESSURE 1,000 PSI
MAX. 90 DEG. BEND PER MIN. 26
ROUND MILD STEEL (1/2" INSIDE DIA.) 5/8"
FLAT STEEL BAR (1/4" INSIDE DIA.) 1/4" x 2"
FLAT STEEL BAR (1" INSIDE DIA.) 1/4" x 1"
STEEL TUBING 16 GA. 1-1/4" OD
FLOOR SPACE 18" X 54"
WEIGHT (APPROX.) 1,150 LBS
MAIN MOTOR 3 HP
MACHINE WIRED 220V
EQUIPPED WITH:
CLAMP BLOCK
FOLLOW BLOCK
SPACER RODS
BENDING COLLAR
GROOVED RADIUS COLLAR FOR USE WITH QUIK-LOCK
GROOVEE RADIUS COLLAR FOR SWIVEL OR CLEVIS
FOLLOW BLOCK
RADIUS COLLAR
OTHER TUBE AND ROD COLLARS
