Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER SCHARMANN
MODEL WF132
SPINDLE DIAMETER 5.3"
TABLE LONGITUDINAL TRAVERSE 80"
HEAD STOCK VERTICAL TRAVEL 80"
SPINDLE LONGITUDINAL TRAVEL 32"
COLUMN CROSS TRAVEL 120"
ROTARY TABLE SIZE 64" x 50"
SPINDLE TAPER, POWER DRAW BAR #50 CAT
SPINLDE SPEEDS 4 - 1000 RPM
SPINDLE MOTOR POWER 20 HP
FACING HEAD DIAMETER 23"
FACING HEAD SPEEDS 2 - 105 RPM
FACING HEAD PLATE STORKE +/- 4"
WEIGHT (APPROX.) 60,000 LBS.
EQUIPPED WITH:

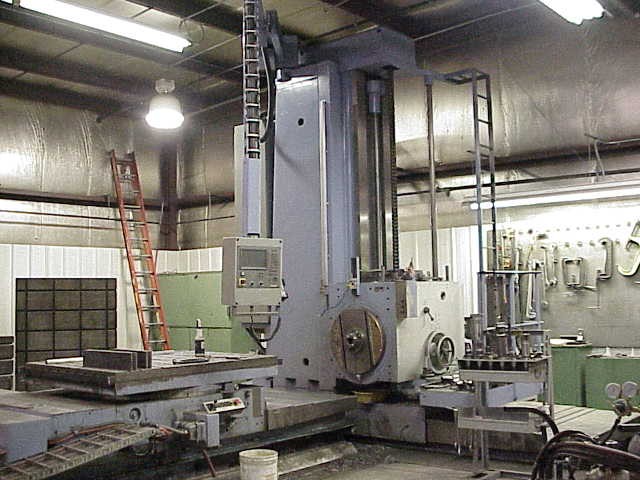

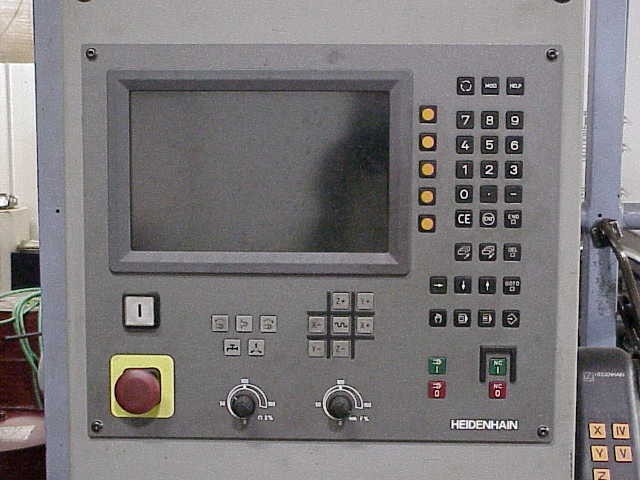

HEIDENHAIM NC CTRL TNC 310 (FOR 4-AXIS) W/ELECTRIC HAND WHEEL
HEIDENHAIM DIGITAL READOUTS

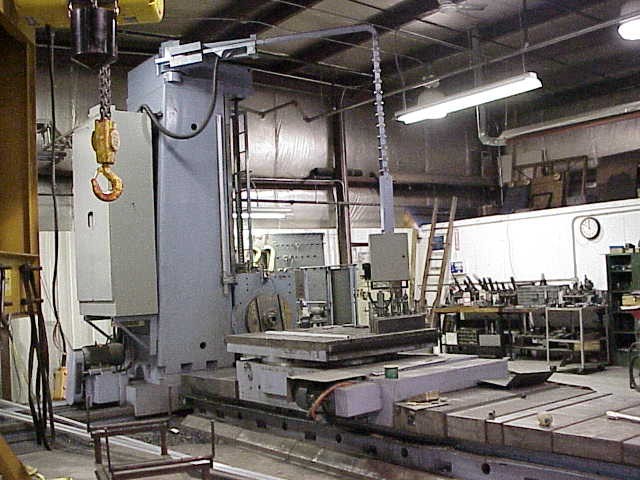

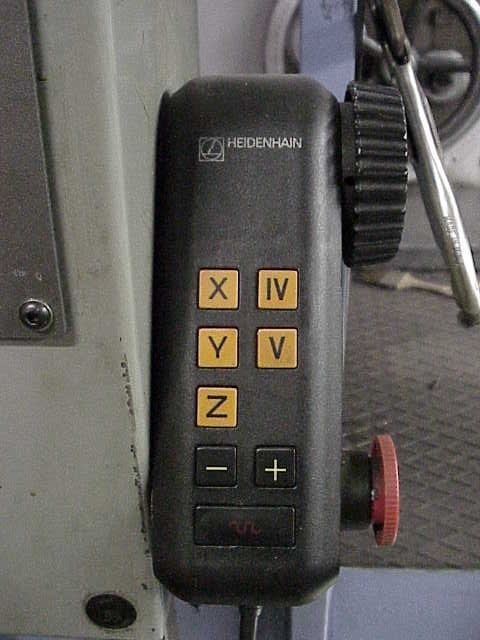

PENDANT CTRL (X & Y AXIS ALONG W/W-SPDL & Z-TURNTABLE IN/OUT)
BUILT IN FACING HEAD WITH INDIVIDUAL FEED DRIVE
TRAVERSING BORING SPINDLE
VARIABLE FEED & SPEED CONTROL
3 SPEED SPINDLE DRIVE
WAY COVERS
TRAVERSING MOTORIZED ROTARY TABLE WITH OPTICS
55" x 70" ANGLE PLATE W/T-SLOTS
32" x 40" ANGLE PLATE W/T-SLOTS
(2) 12" x 48" ANGLE PLATES W/T-SLOTS
REBUILT & RECONDITIONED 2001
NEW IN 2001: OPERATORS STATION, ELECTRICAL CABINET,
ELECTRICS, AXIS DRIVES & MOTORS AND SPINDLE DRIVE & MOTOR
