5.2" OLYMPIA CNC FLOOR BAR, 26' HORIZ, 9'10" VERT., FANUC 15M, 80 X 80 ROTARY, 2000 RPM, 50 TAPER

SPECIFICATIONS:
X-Axis Travel 26 ft, 3" (315") (8 meters)
Y-Axis Travel 9 ft, 10" (118") (3 meters)
Z-Axis Travel 17" work-head
W-Axis Travel 32" Spindle
Spindle Diameter 5.2" 150mm
Spindle Power 50 HP
Control Fanuc 18M

INCLUDES:

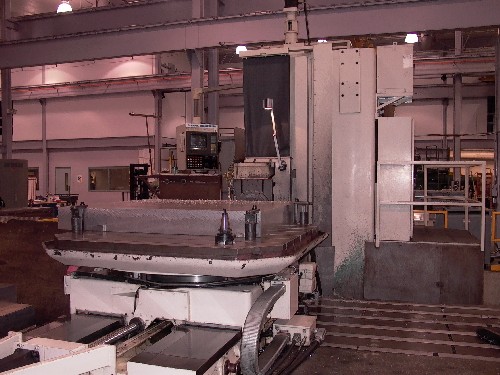

80" x 80" Rotary Table with Fanuc Drives AND 34" OF TRAVEL
3-Axis Glass Scale Feedback
Spindle RPM Range 20 to 3,800
Rapid TraversE 200 : IPM
Programmable Feed Rates 150 : IPM
Spindle Taper ISO 50

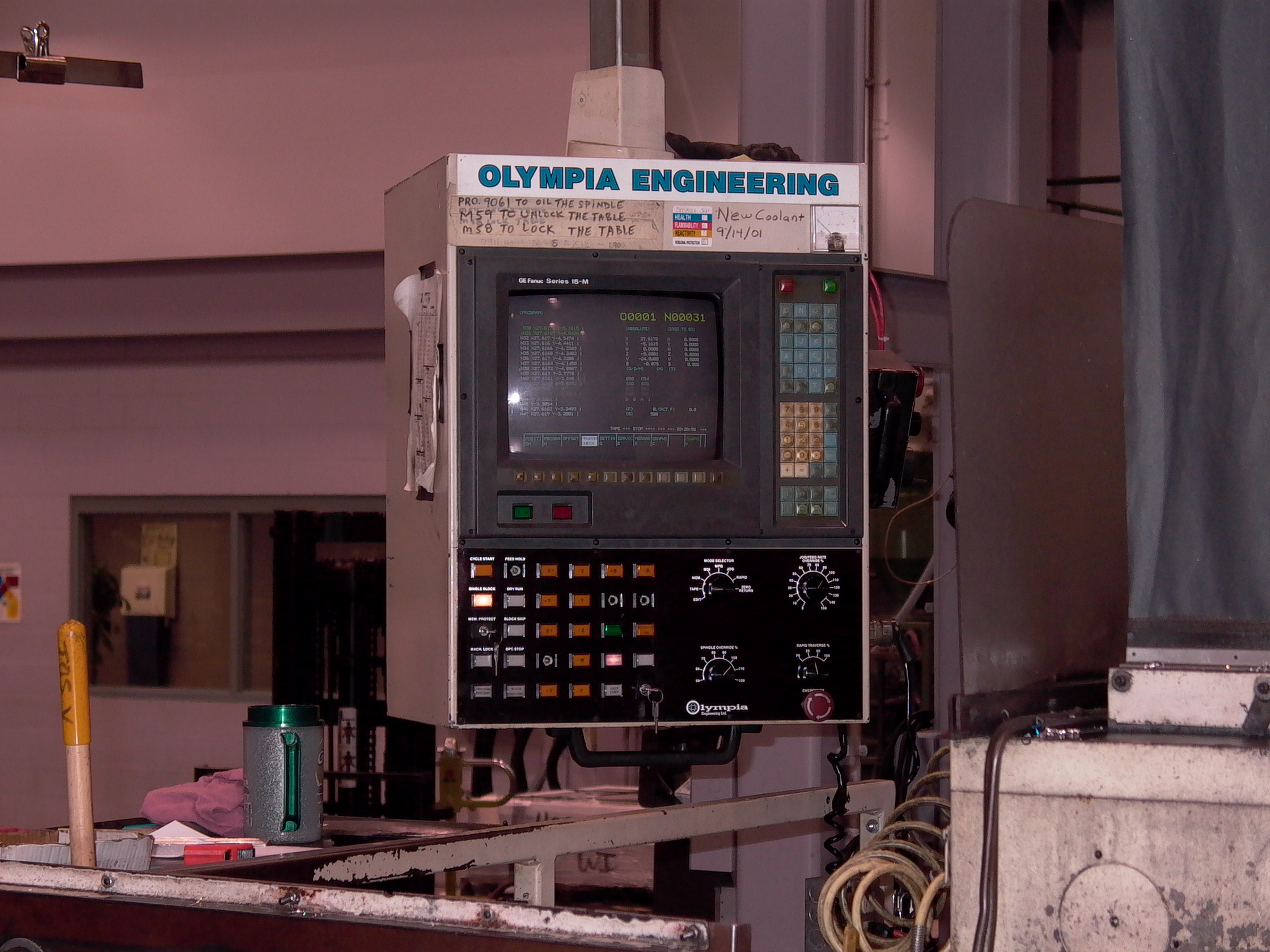

FANUC 15M CONTROL
TITAN CHIP CONVEYORS
