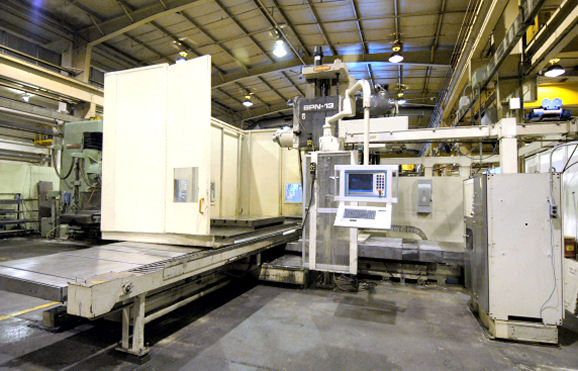

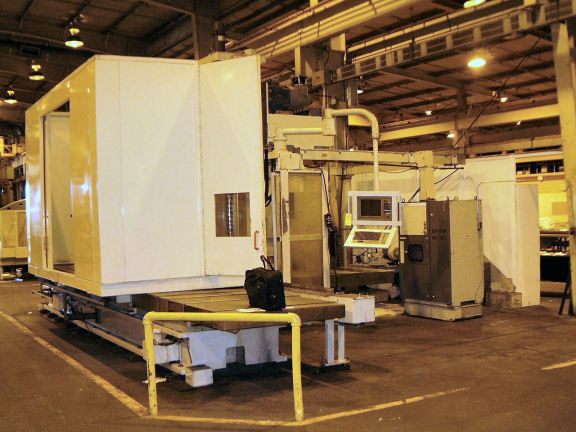

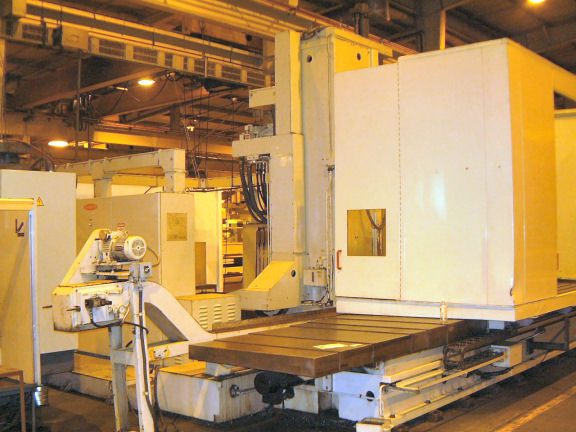

5.12" TOSHIBA BPN-13-P5, 59" x 118.1" TBL, ISO #50 TAPER, 80.6"-Y, 118"-X, 19.7"-Z1, 43.5"-Z2, CREATIVE EVOLUTION CNC CTRL, RETROFIT 2001

GENERAL SPECIFICATIONS:
MANUFACTURER TOSHIBA
MODEL BPN-13-P5
SERIAL # 230005
NEW (APPROX.) 1982 (RETROFIT 2001)
SPINDLE DIAMETER 5.12"
MILLING SPINDLE DIAMETER 8.86"
SPINDLE TAPER ISO NO. 50
Y TRAVEL (VERTICAL TRVL OF HEAD) 80.6"
X TRAVEL (TABLE) 118"
Z-1 TRAVEL (SPINDLE) 19.7"
Z-2 TRAVEL (COLUMN) 43.5"
TABLE SIZE 59" x 118.1"
RAPID TRAVERSE (UPGRADED) 400 IPM
SPINDLE SPEEDS (UPGRADED) 10 - 2500 RPM
TABLE LOAD CAPACITY 22,000 LBS.
SPINDLE DRIVE 30 HP

EQUIPPED WITH:
CREATIVE EVOLUTION CNC CONTROL (2001)
HARDENED WAYS ON ALL AXIS
BALLSCREWS & INDEPENDANT SERVO DRIVES
COOLANT THRU TOOL
COOLANT SYSTEM W/SPLASH GUARD ENCLOSURE
HEIDENHAIN GLASS SCALES ON X,Y & Z AXES
WAY COVERS ON X & Z-2 AXIS
