GENERAL SPECIFICATIONS:

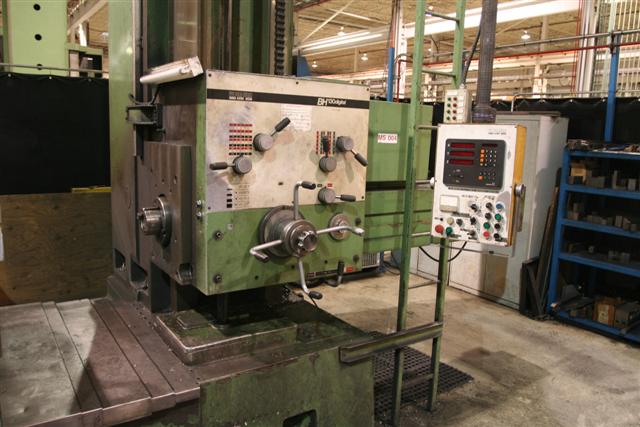

MANUFACTURER IVO LOLA RIBAR
MODEL BH130D
NEW 1986
SERIAL NUMBER 140.37.90.07
SPINDLE DIAMTER 5.11" (130 MM)
TABLE SIZE-ROTARY 60" x 67" (1520 X 1700)
TABLE LOAD CENTERED 17,600 (8000 KG)
TABLE LOAD OVER ONE OUTRIGGER 13,200 (6000 KG)
X TRAVEL 86" (2200)
Y TRAVEL 78.7" (2000)
Z TRAVEL 63" (1600)
W TRAVEL 39" (990)
MOTOR 20 HP
SPEED 2.5-1000 RPM
FEED RANGE (27 STEPS) .001-.47 IPR (.03-12MM/REV)
SPINDLE TAPER 50
OVERALL HEIGHT TO TOP OF PENDENT 17'4" (5250)
FLOOR SPACE 177" L/R X 175" IN/OUT
MACHINE WEIGHT 55,000 LBS
EQUIPPED WITH:

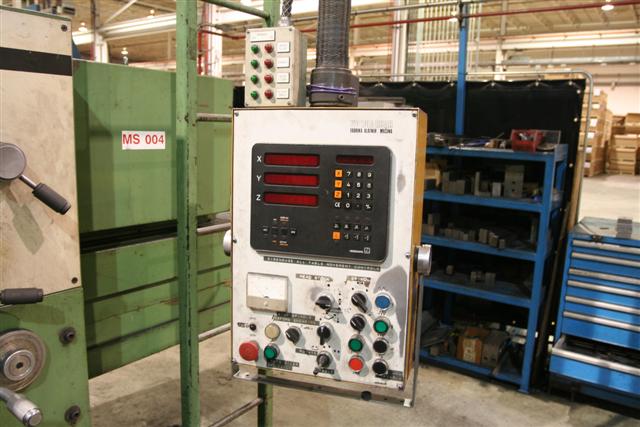

PENDENT CONTROL WITH BUILT IN DIGITAL READOUTS

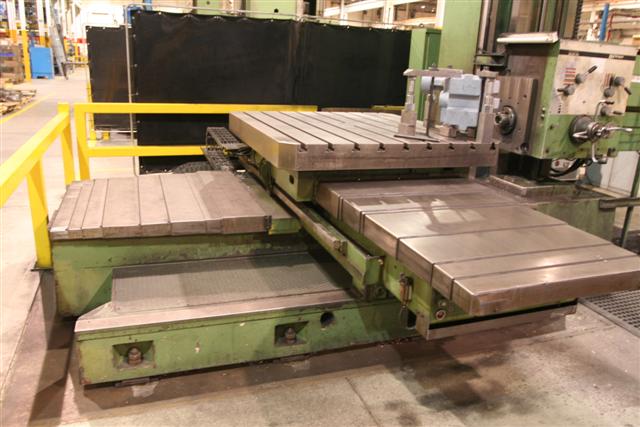

POWER ROTARY TABLE
MANUALS
OUTRIGGER SUPPORTS

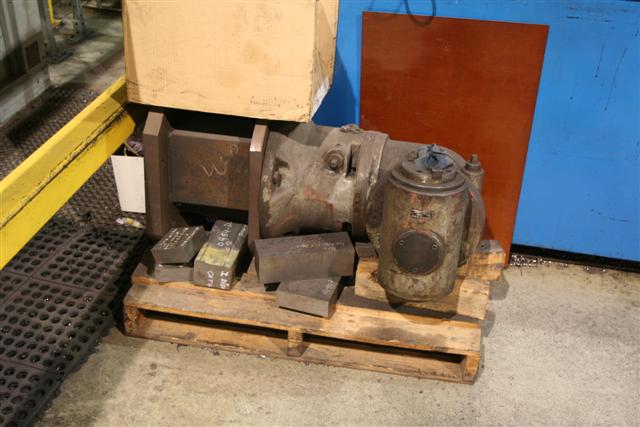

UNIVERSAL RIGHT ANGLE HEAD. TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
