Specifications
Equipped With
GENERAL SPECIFICATIONS:

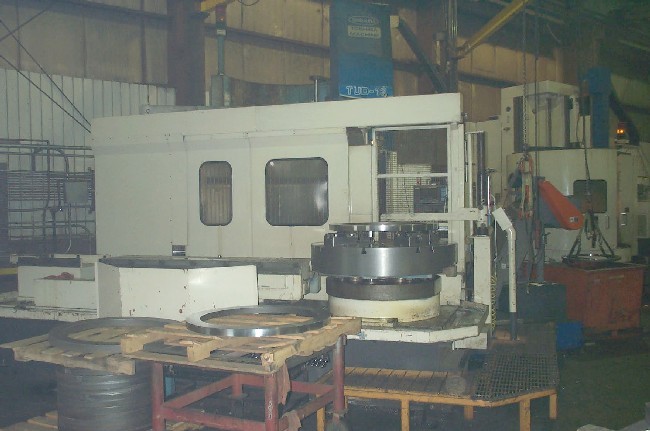

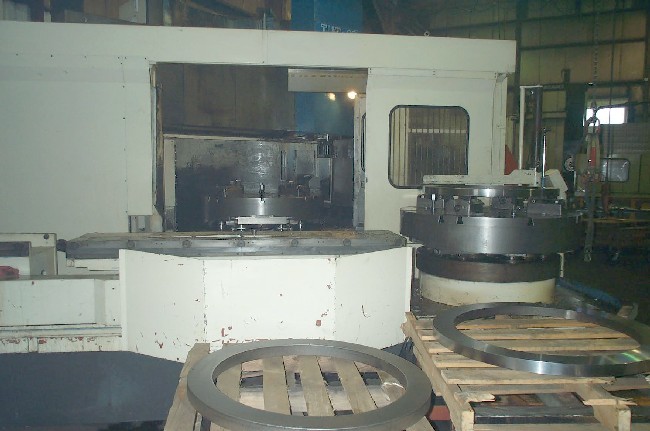

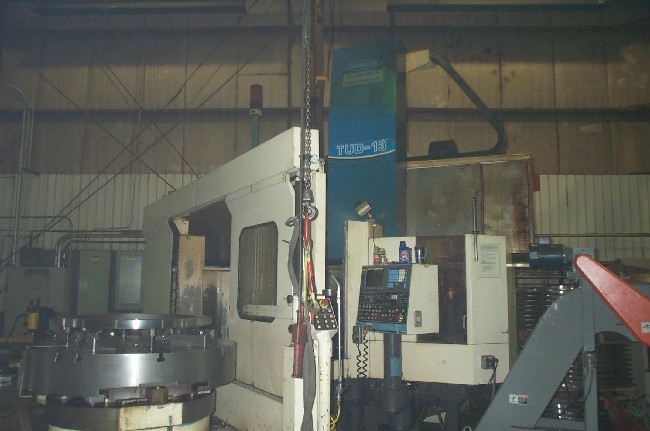

MANUFACTURER TOSHIBA
MODEL TUD-13
NEW (APPROX.) 1992
TABLE DIAMETER 49"
# OF PALLETS 2
MAX. SWING 63"
MAX. HEIGHT UNDER RAM 50"
MAX. TURNING HEIGHT 43"
VERTICAL RAM TRAVEL 31.5"
VERTICAL CROSS RAIL TRAVEL 19.5"
SPINDLE MOTOR 50/40 HP
TABLE SPEEDS (INFINATELY VARIABLE) 2 - 360 RPM
TABLE WEIGHT CAPACITY 17,600 LBS
EQUIPPED WITH:
FANUC 15T-A CNC CONTROL
12 STATION AUTOMATIC TOOL CHANGER W/RAM
49" (2) PALLET SCHUTTLE SYSTEM
4 JAW MANUAL CHUCKS
CHIP CONVEYOR
HARDENED & GROUND WAYS
COOLANT THRU THE RAM
TOOL HOLDERS
FULL ENCLOSURE
SOME TOOLING
2852 POWER ON HOURS, 1958 OPERATING HOURS, 784 CUTTING HOURS
