SPECIFICATIONS

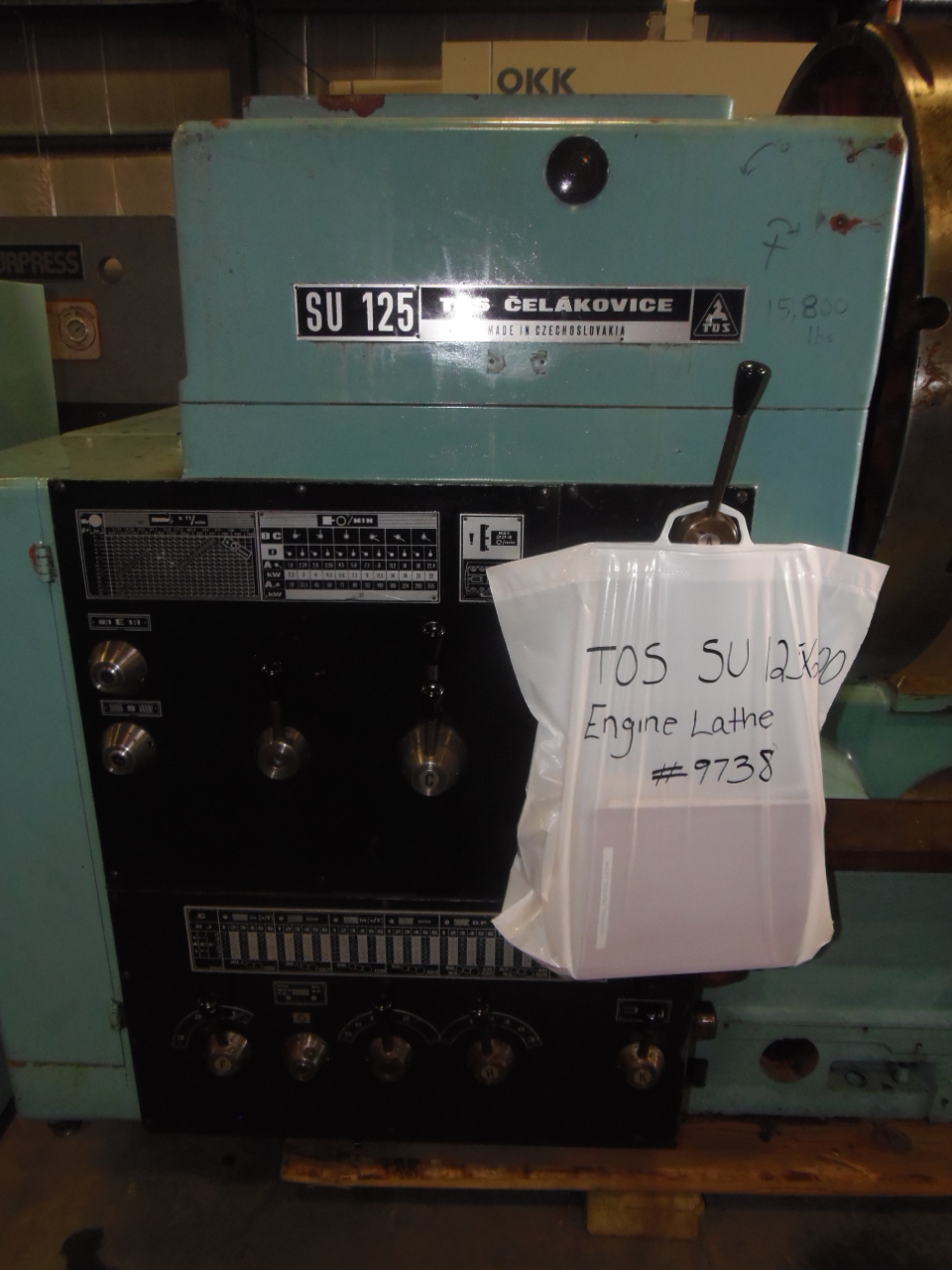

MANUFACTURER.................................... SIGMA TOS
MODEL........................................... SU125

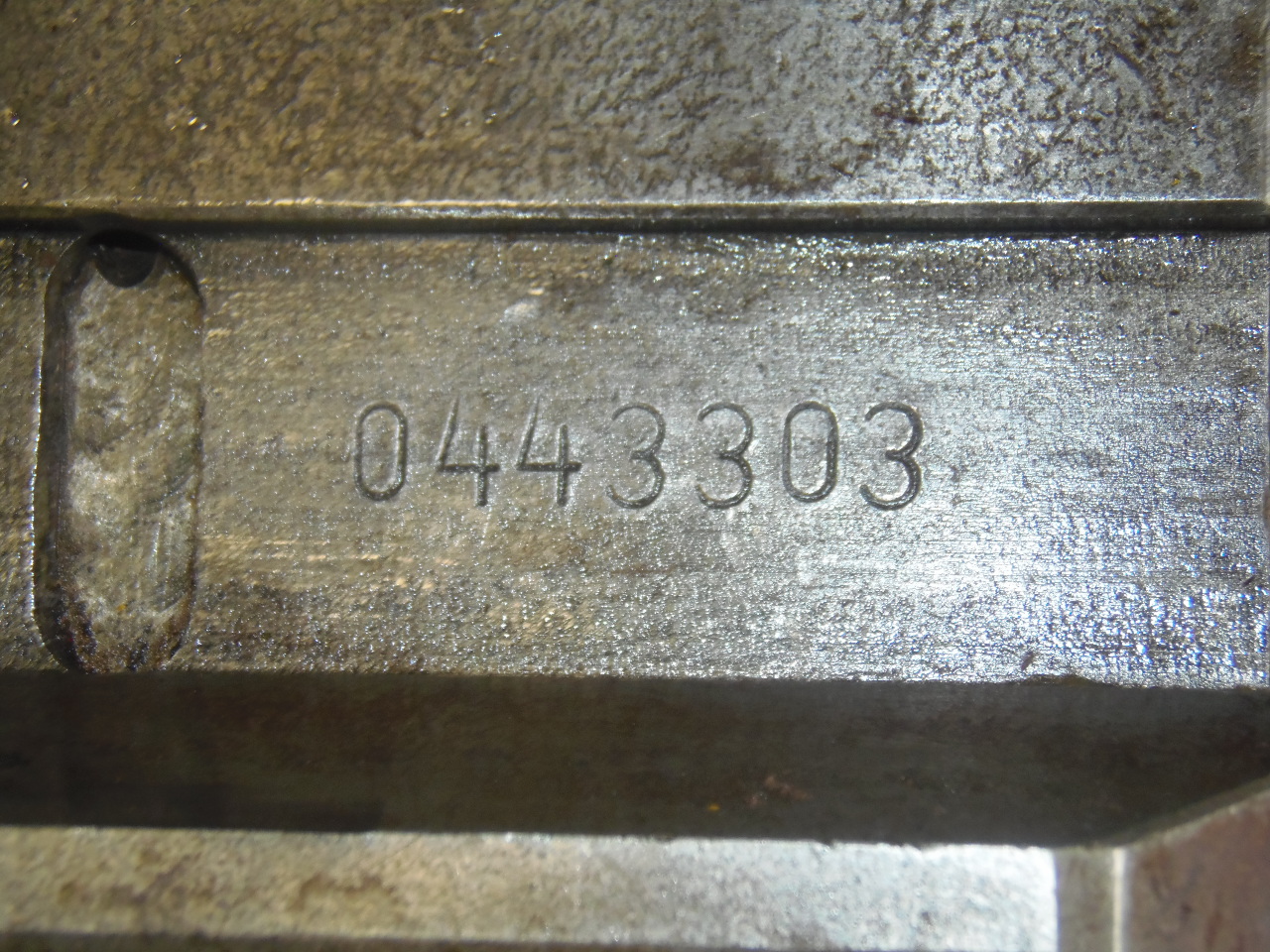

SERIAL NUMBER................................... 0443303
AGE............................................. 1987
SWING OVER BED.................................. 49.2" (1250mm)
SWING OVER CARRIAGE............................. 37" (940mm)
DISTANCE BETWEEN CENTERS........................ 315" (8000mm)
WIDTH OF BED.................................... 31.5" (800)
MAX WEIGHT OF WORKPIECE BETWEEN CENTERS......... 11,000 LBS
MAX WEIGHT WITH STEADY REST..................... 13,200 LBS.
SPINDLE SPEEDS (24)............................. 1.8 - 355 RPM

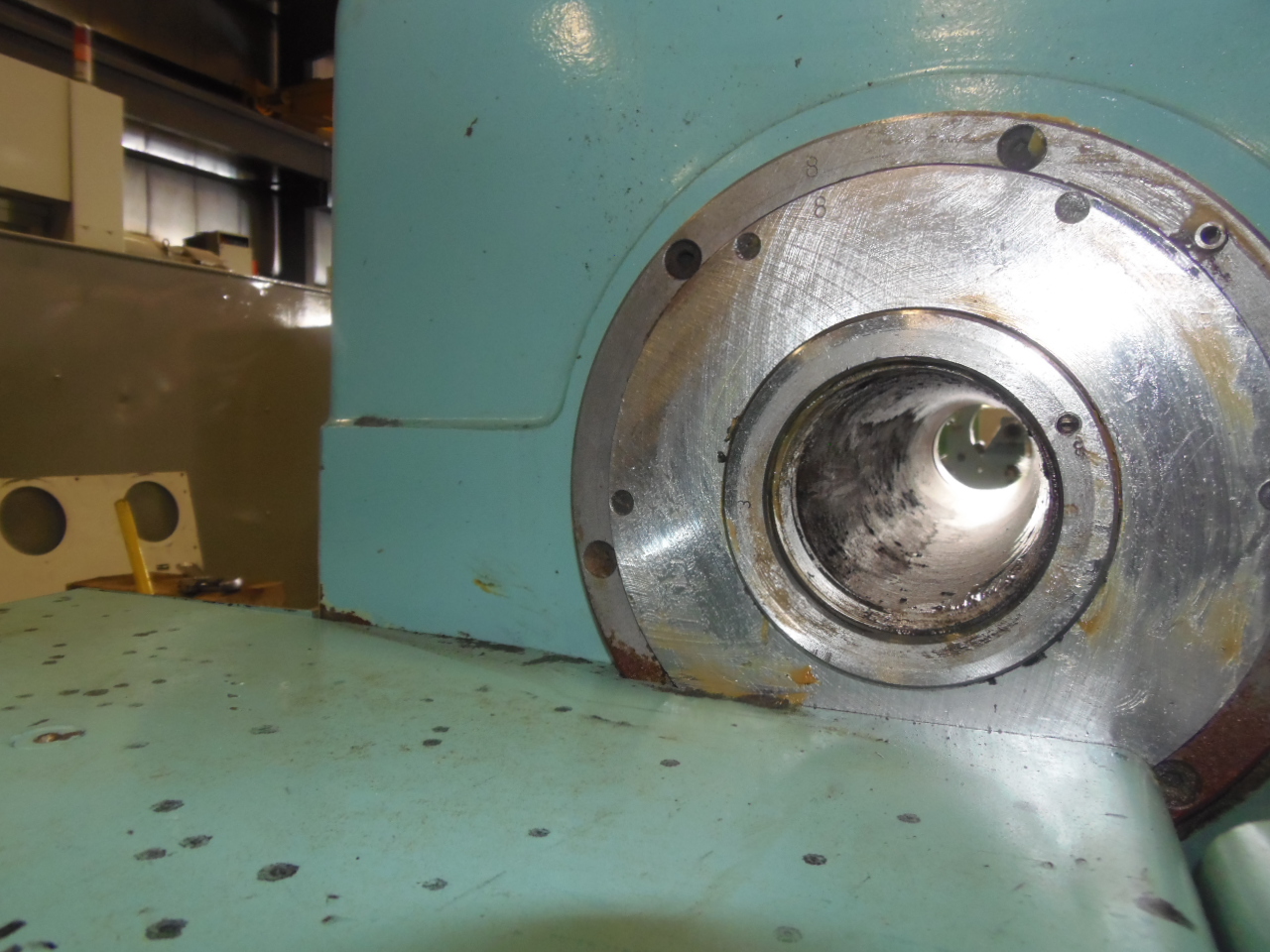

SPINDLE BORE.................................... 4" (100mm)
SPINDLE NOSE.................................... D1-11
MAIN MOTOR...................................... 22 KW (approx 30 HP)
ELECTRICS....................................... 480V/3/60
APPROXIMATE WEIGHT.............................. 25,000 LBS.
EQUIPPED WITH:

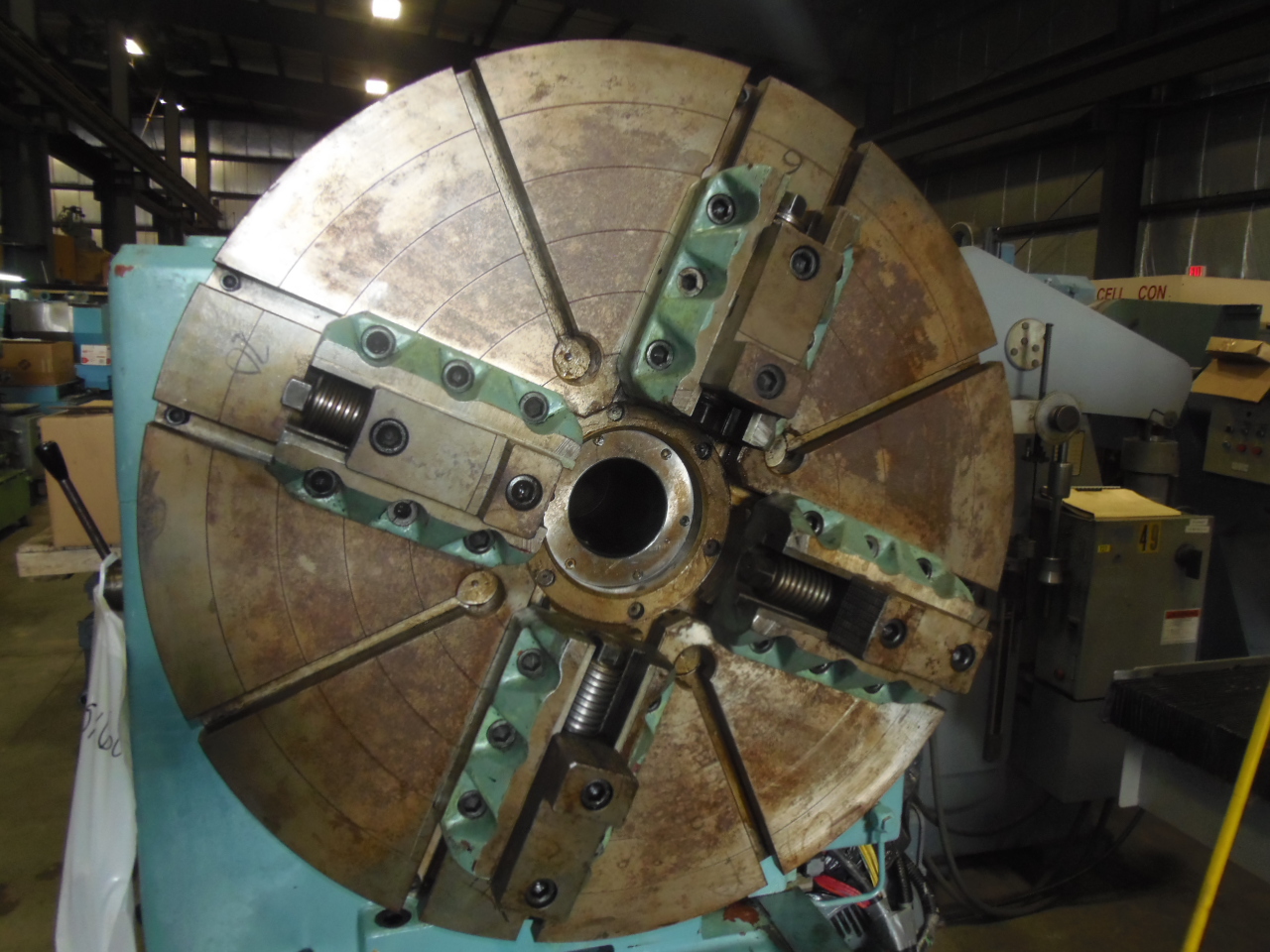

40" 4 JAW CHUCK (1016mm)

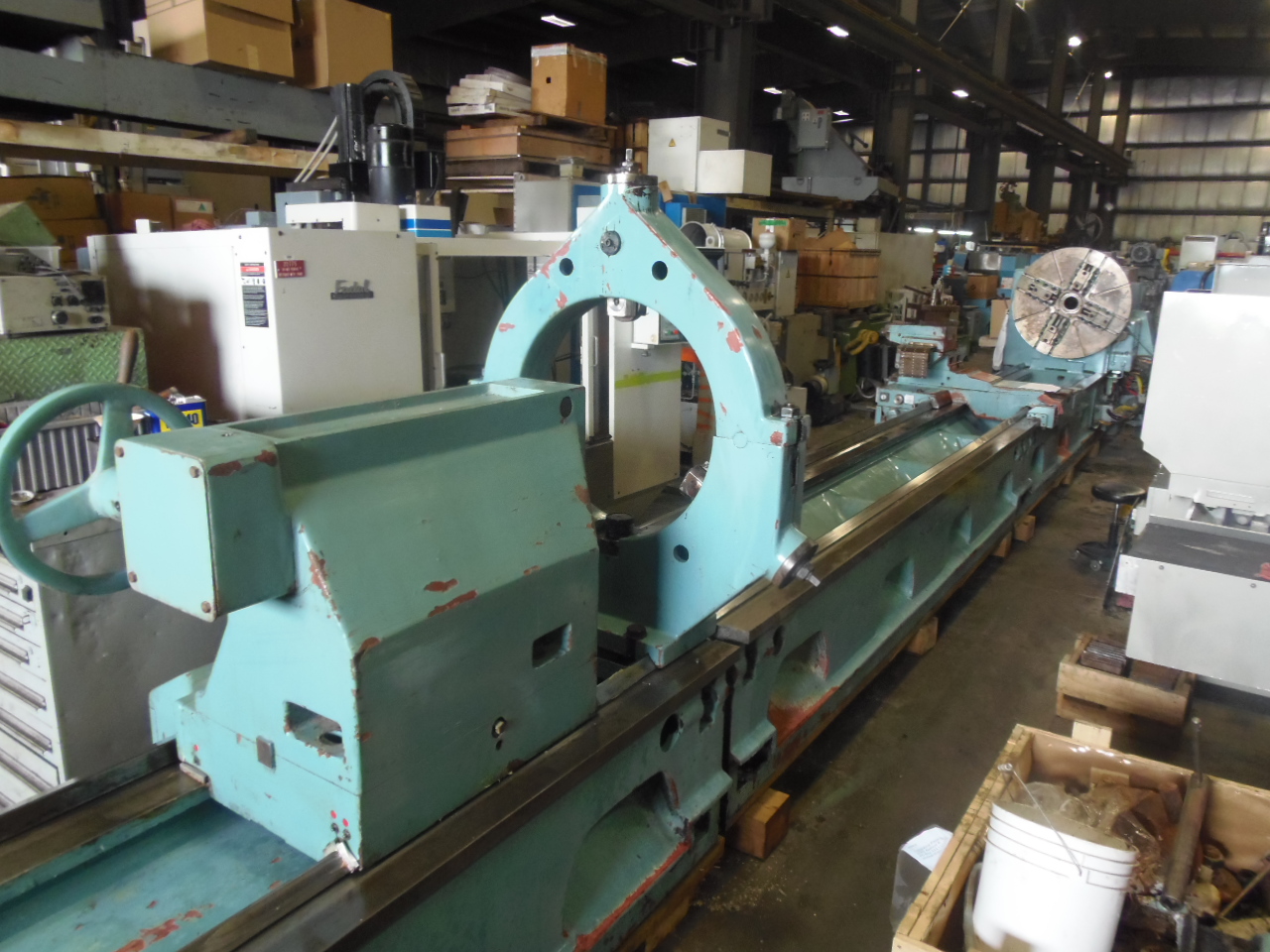

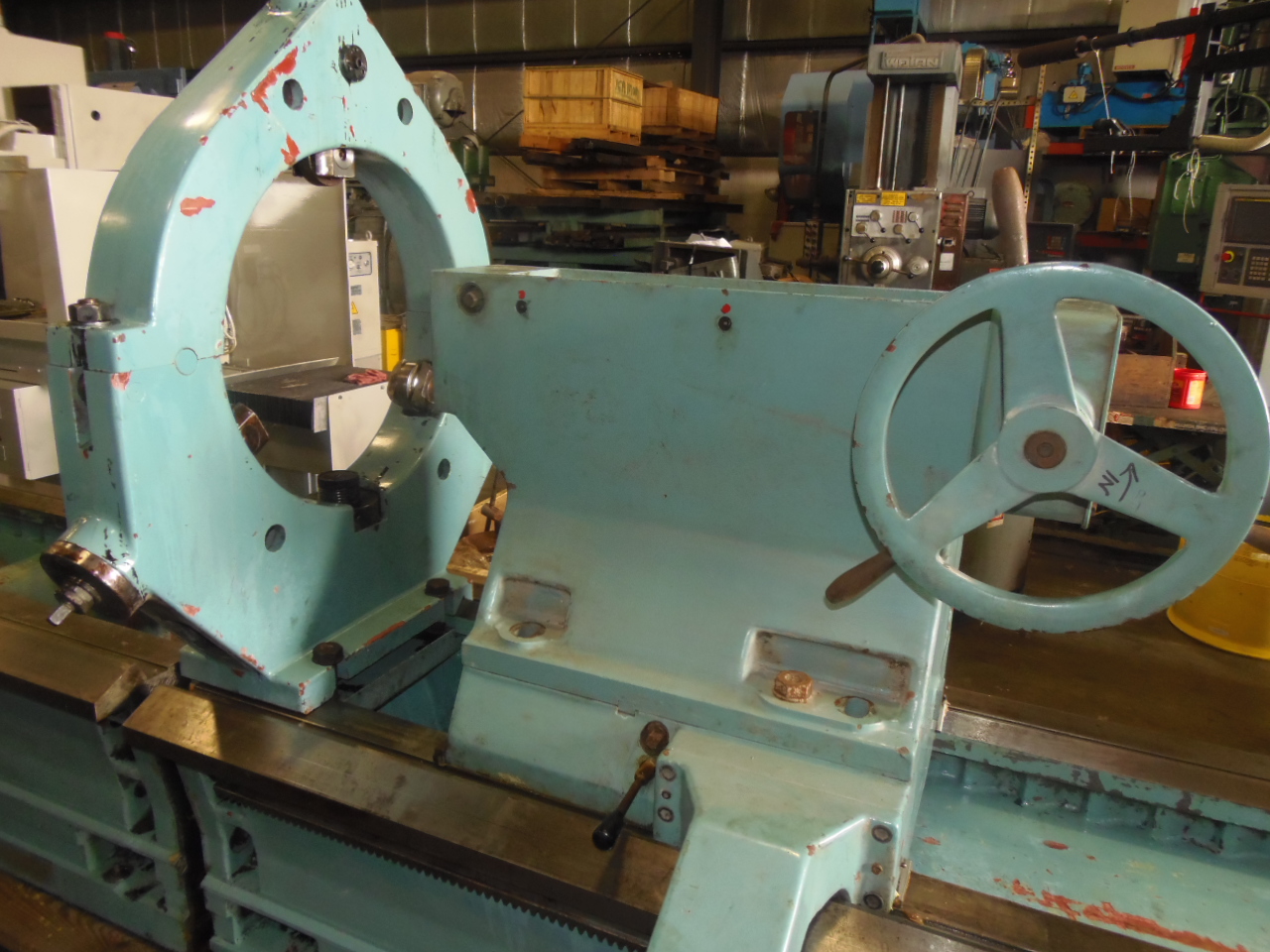

16 - 25" STEADY REST (406 - 635mm)
INCH/METRIC THREADING

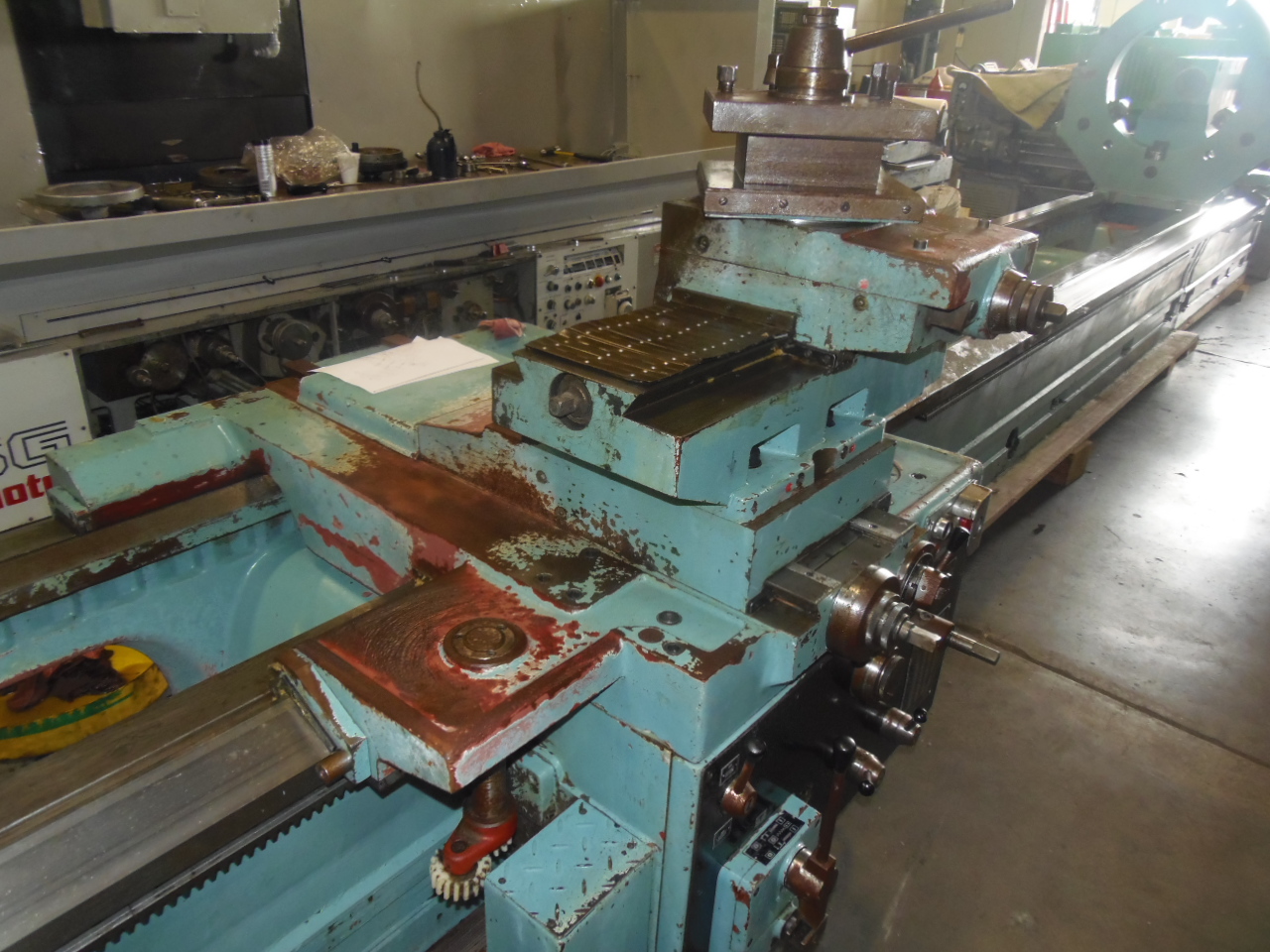

POWER COMPOUND
4 WAY TOOL POST
