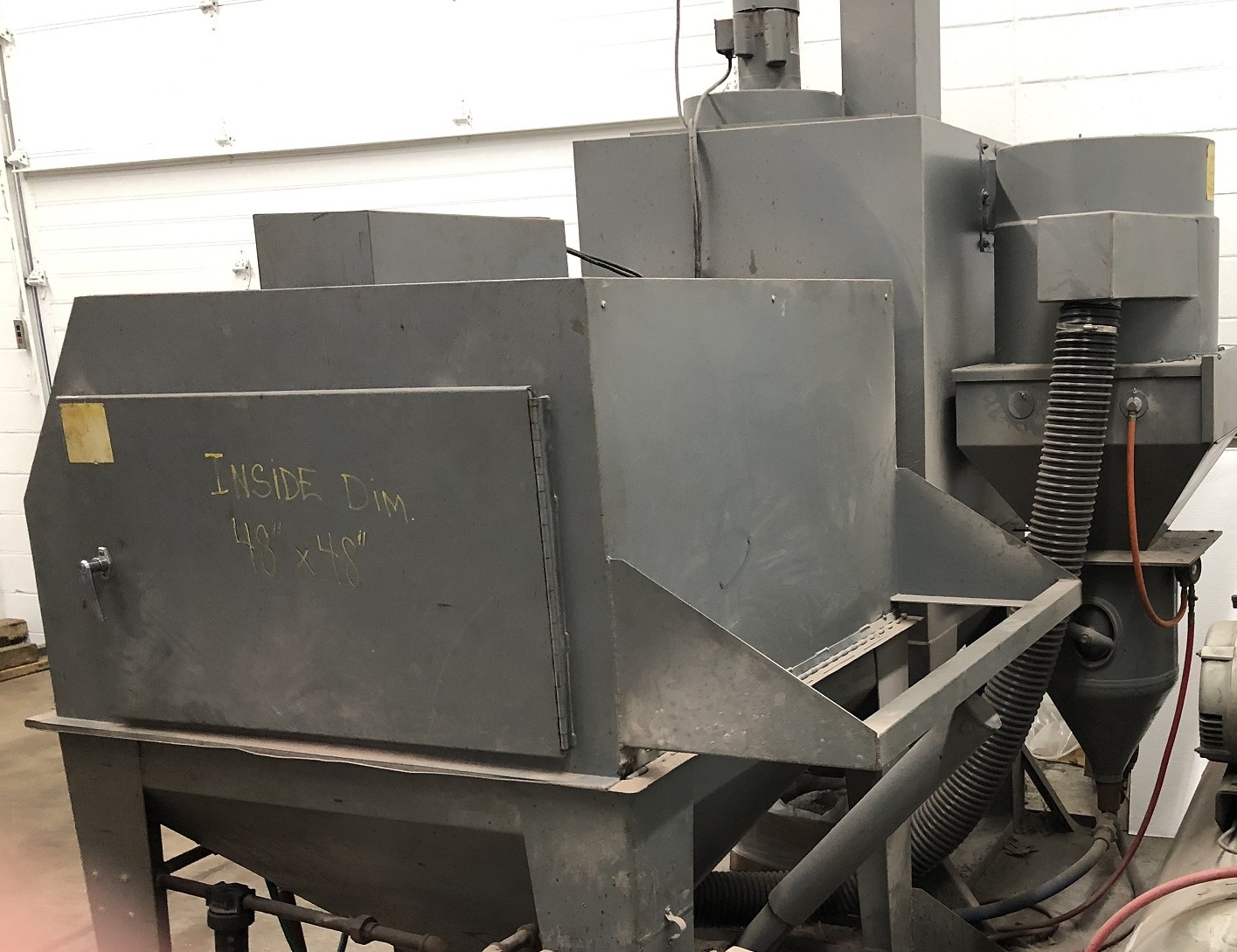

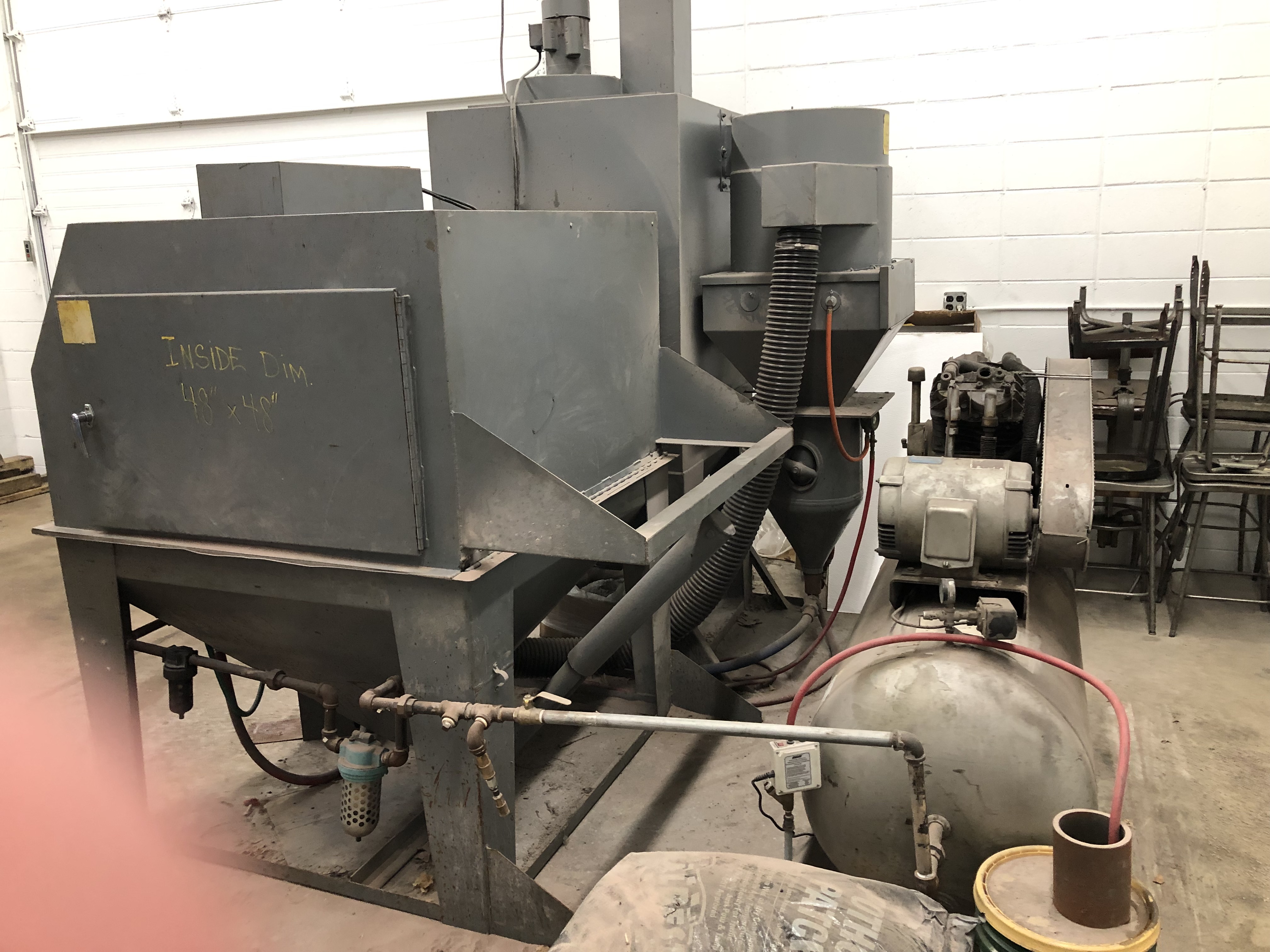

CATALOG SPECIFICATIONS:

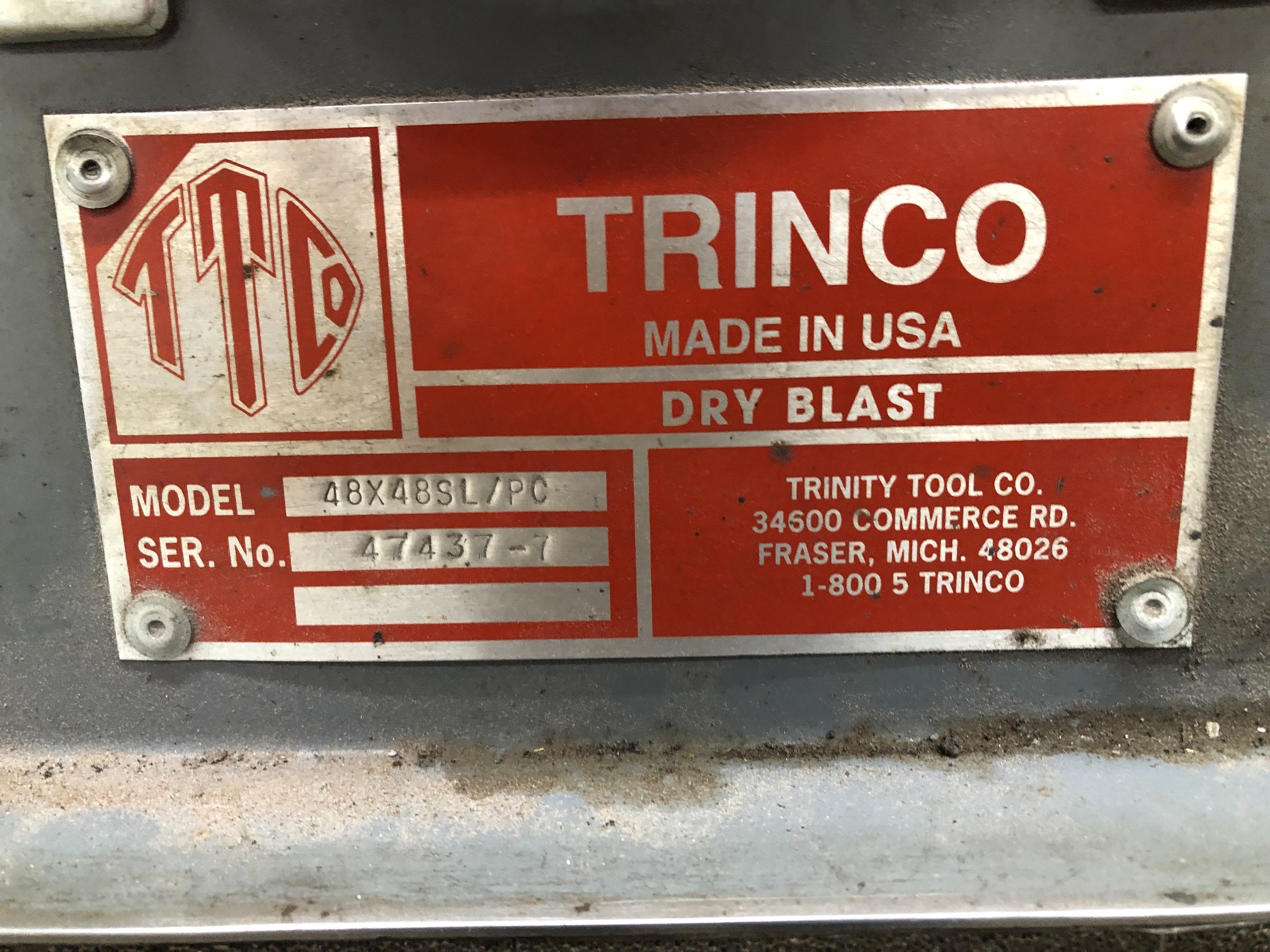

Manufacturer Trinco
Model 48x48 SL/PC
Serial number 47437-7

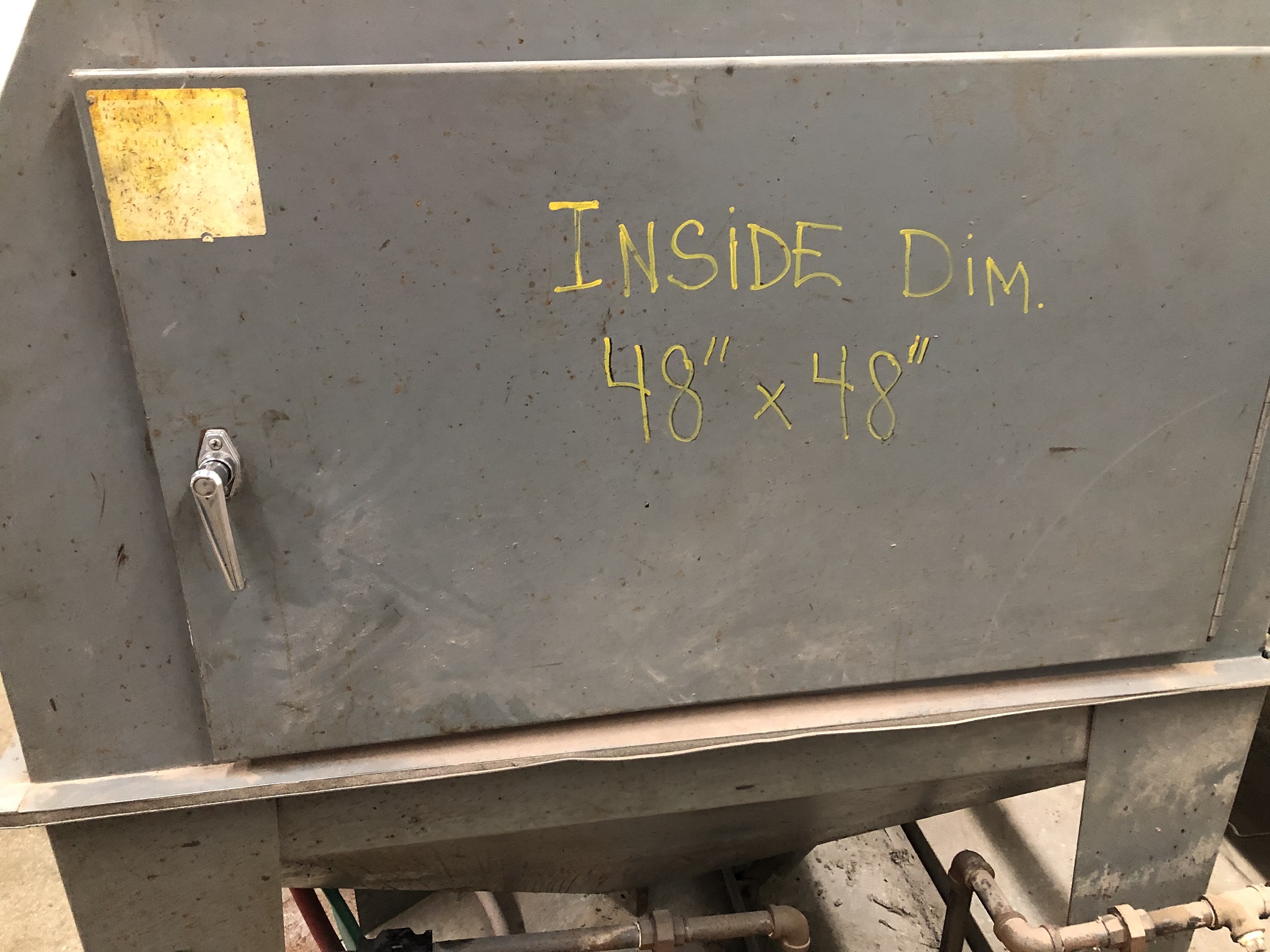

Inside Dimensions, Width 48"
Inside Dimensions, Depth 48"
Inside Dimensions, Height 31"
Side Door Opening, L x W 36" x 20"
Abrasive Capacity 100 LBS
Pressure Range 30 to 120 PSI
Overall Dimensions, D x W 74" x 52"
Overall Height 71"
Weight Approximately 1500 LBS
EQUIPPED WITH:

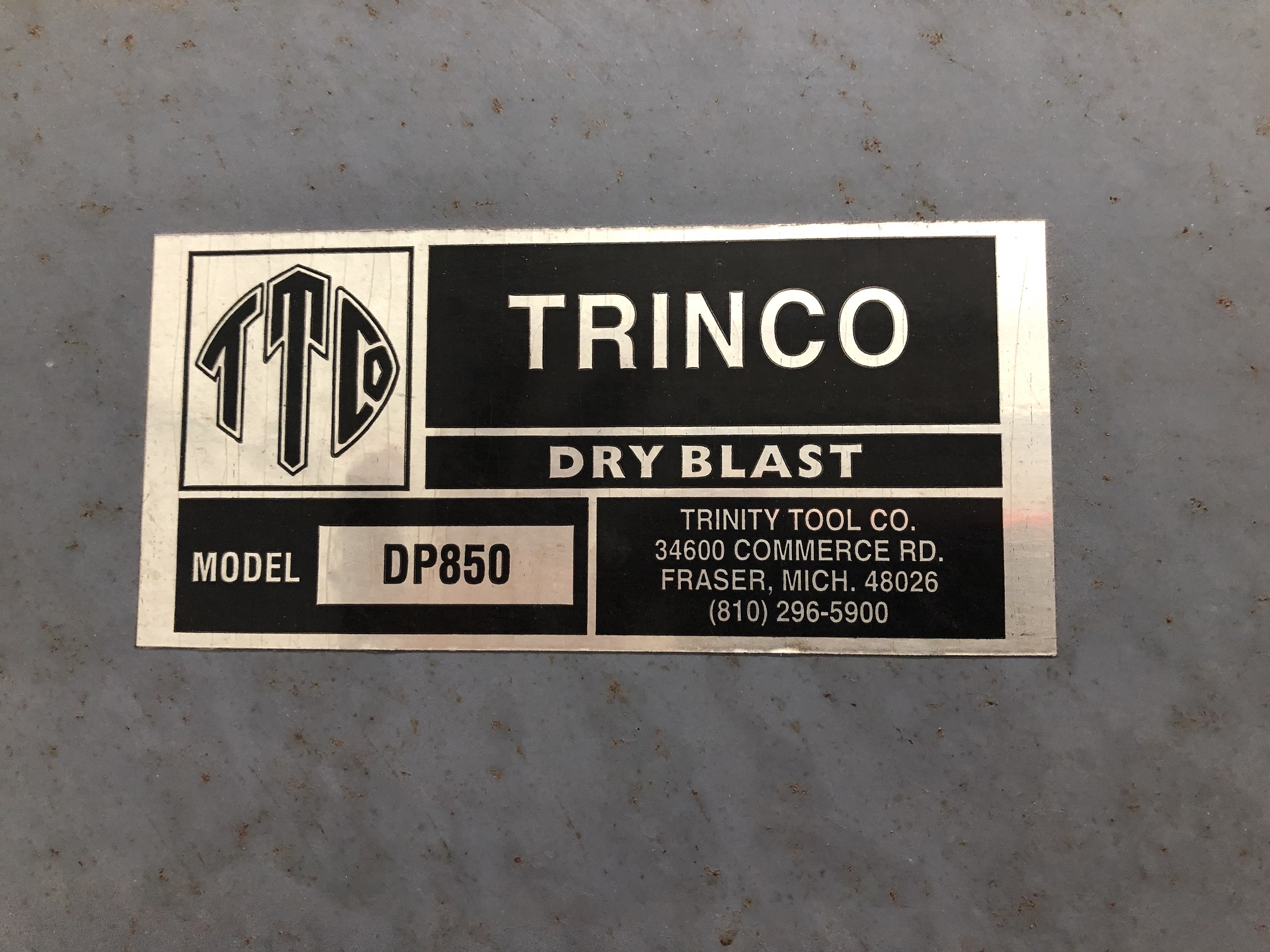

DP850 Trinco Pull Through Dust Collector w/Trinco Tubular Filter Bags, Trinco Abrasive Separator w/2 HP Motor and 850 CFM Rating
Neoprene Blast Gloves
NOTE: A Trinco Direct Pressure Cabinet Utilizes An A.S.M.E. Coded Pressure Pot To Hold Abrasive Media. Most Trinco Pressure Blast Cleaning Is Done At 40 to 60 PSI. Due To These Lower Pressures Abrasive Media Breakdown Is Greatly Reduced Even Though A High Volume Of Media Is Being Directed At The Part To Be Cleaned. Most Of The Media Is Recovered Through The Recycling Process.
Trinco Direct Pressure Blast Cleaning Is Ideal For The Very
Tough Jobs, Where Large Surfaces Must Be Cleaned Quickly,
For Production Blast Cleaning Or When The Job Requires Use
Of Heavy Mesh Sizes Of Silicon Carbide, Aluminum Oxide,
Garnet, ETC. Other Popular Medias That Are Used In Trinco
Cabinets Are Glass Beads, Trin-Mixes, Rad-Mix, And Plastic
Cleaning Media.
