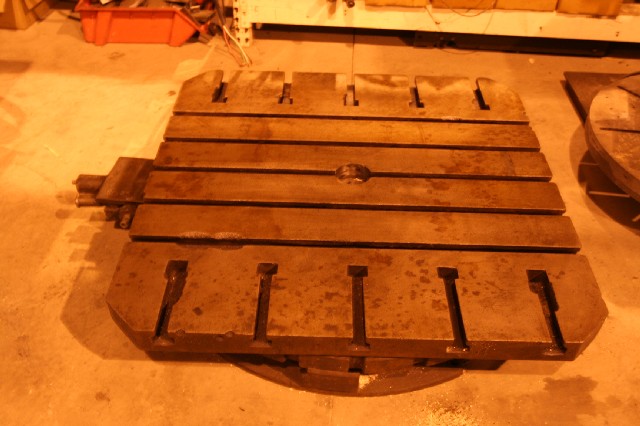

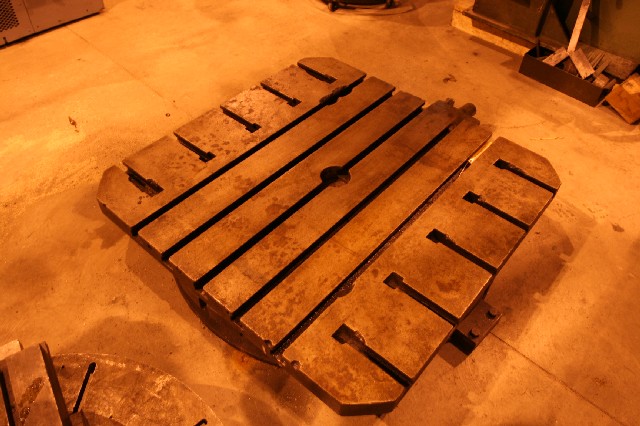

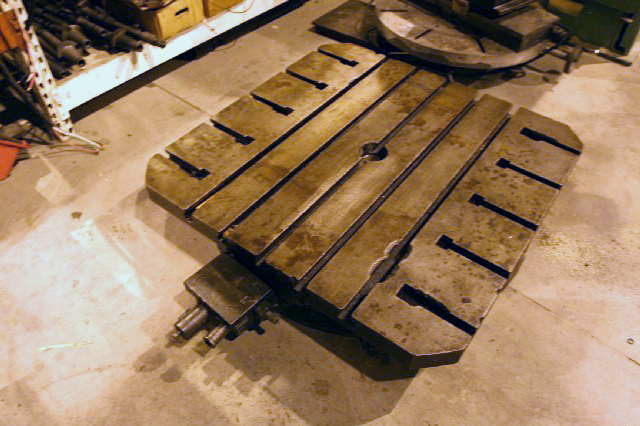

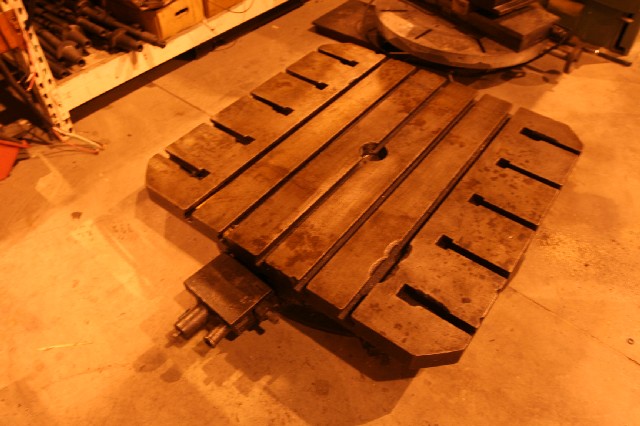

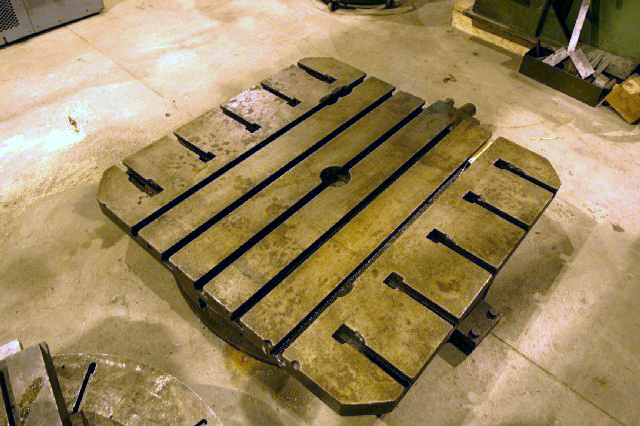

GENERAL SPECIFICATIONS:
SIZE........................... 48" X 48"
THICKNESS OF TABLE TOP......... 3"
HEIGHT......................... 10"
NUMBER OF T-SLOTS.............. 5
DISTANCE BETWEEN T-SLOTS....... 5"
INDEX POSITIONS................ 24 (EVERY 15 DEGREES)
CLAMPING....................... SHOT PIN
WEIGHT:........................ 2500 lbs.
EQUIPPED WITH:
MANUAL SHOT PIN OPERATION
MANUAL ROTATION

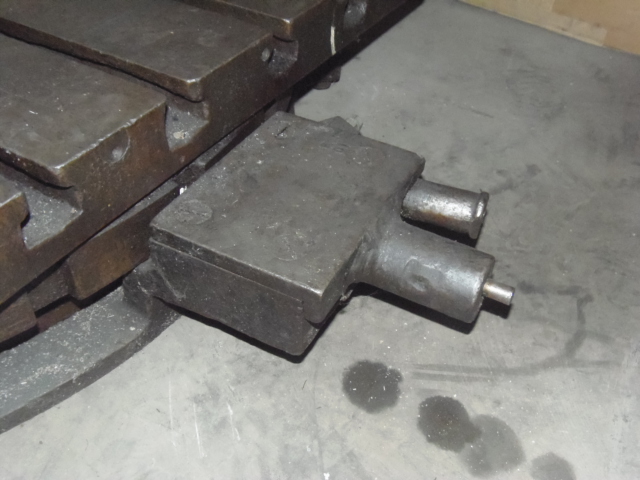

TO OPERATE THIS TABLE YOU PULL A HANDLE WHICH DISENGAGES A SPRING LOADED PIN.

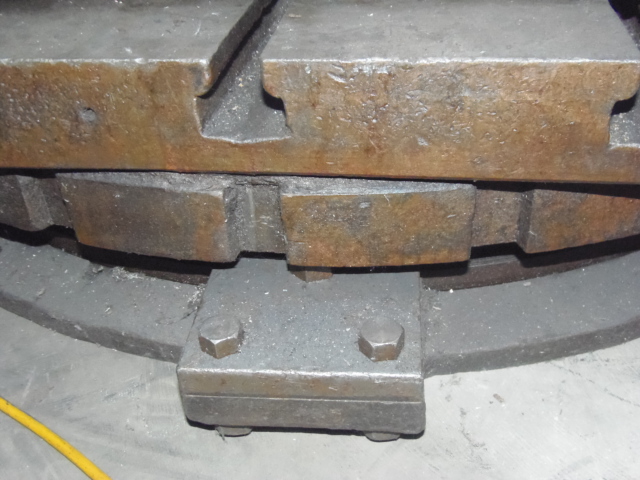

THIS PIN FITS INTO ONE OF 24 SLOTS AROUND THE OUTSIDE OF THE TABLE (EVERY 15 DEGREES).
YOU THEN MANUALLY TURN THE TABLE TO ONE OF THE POSITIONS
AND RELEASE THE PIN TO LOCK IT.
WE HAVE TESTED THE TABLE WITH A 6,400 LB MACHINE ON IT. WE HAVE NOT TRIED IT WITH MORE WEIGHT THAN THAT, BUT WILL IF REQUESTED.
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
