Specifications
Equipped With

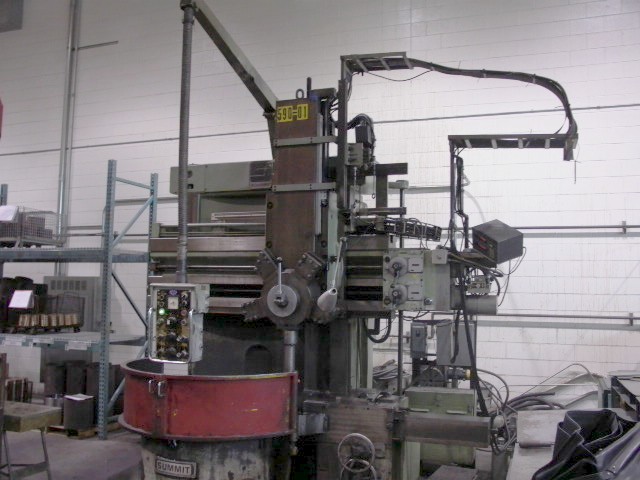

GENERAL SPECIFICATIONS:
MANUAFACTURER SUMMIT
AGE 1978
MAX. DIA. SWING W/VERTICAL HEAD 55"
MAX. DIA. SWING W/SIDE HEAD 51"
MAX. WEIGHT OF WORKPIECE 13,230 LBS.
TABLE DIAMETER 47"
MAX. MACHINING HGT OVER TABLE 39-3/8"
MAX. VERT. TRVL OF PENTAGONAL TURRET 30"
VERT. ADJ. RANGE OF SIDE HEAD ON COLUMN 35-7/16"
HORIZ. ADJ. RANGE OF SIDE HEAD ON COLUMN 25-1/2"
VERT. ADJ. RANGE OF CROSS RAIL ON COLUMN 31-1/2"
# OF SPEEDS INF. VAR.
SPEED RANGES (3) 5 - 252 RPM
# OF FEEDS 16
RANGE OF FEEDS .002 - .200 IPR
MOTOR 74 HP
WEIGHT (APPROX.) 35,500 LBS.
EQUIPPED WITH:
HYD. TRACER SIDE HEAD & RAM HEAD

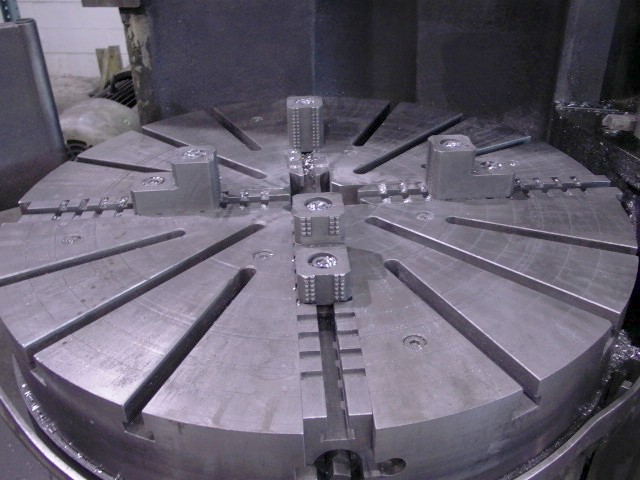

4-JAW CHUCK

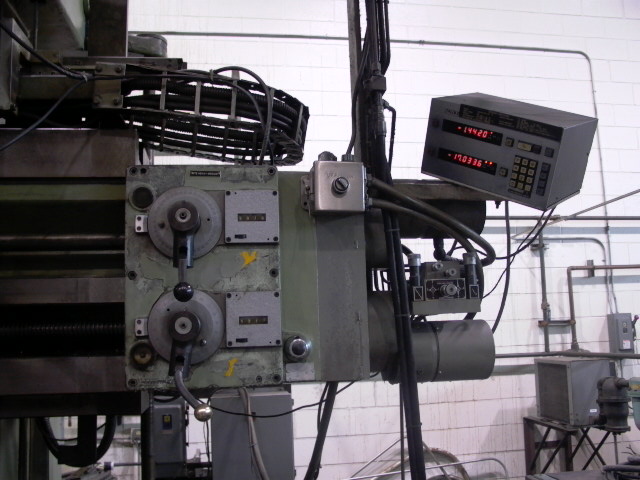

2 AXIS SONY DRO
