Specifications
Equipped With

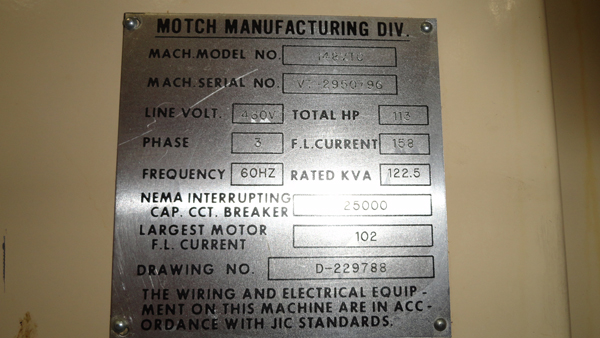

MANUFACTURER...................... MOTCH
MODEL............................. 148 VTC

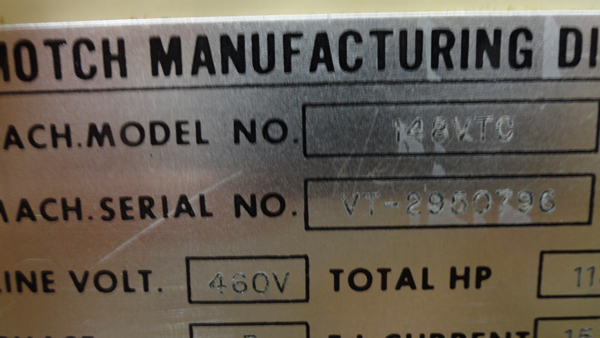

SERIAL NUMBER..................... VT-2950796
AGE............................... 1995
SWING............................. 49.2" (1250mm)
SPINDLE SPEED RANGE
LOW RANGE...................... 0 - 400 RPM
HIGH RANGE..................... 400 - 900 RPM
SPINDLE HORSEPOWER................ 75
LIVE TOOLING HORSEPOWER........... 25
CHUCK INDEXING POSITIONS.......... 360,000 (4th axis)
X AXIS STROKE..................... 51" (1300mm)
Z AXIS STROKE..................... 31.5" (800mm)

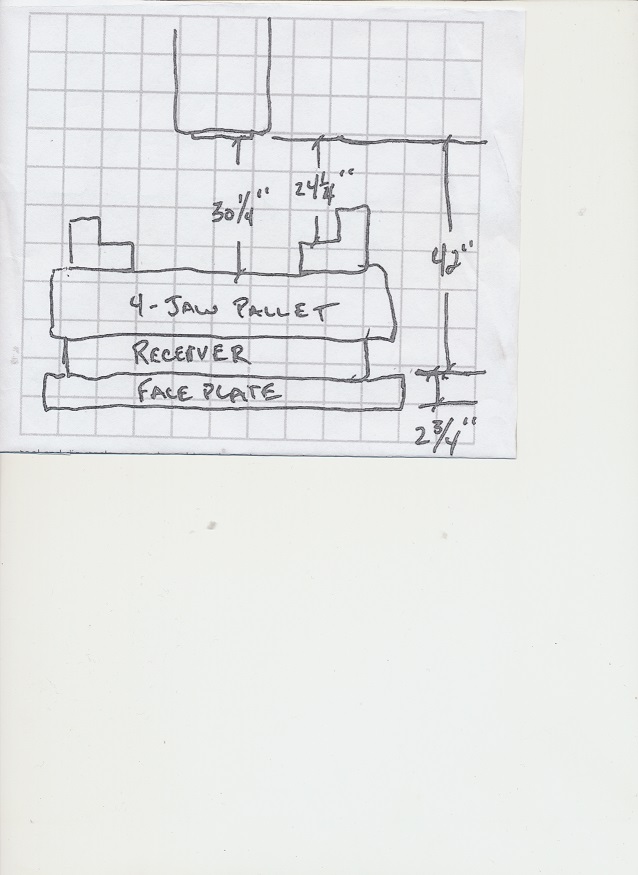

SPINDLE FACE TO 4 JAW PALLET TOP.. 30.25"
SPINDLE FACE TO TABLE TOP......... 42"

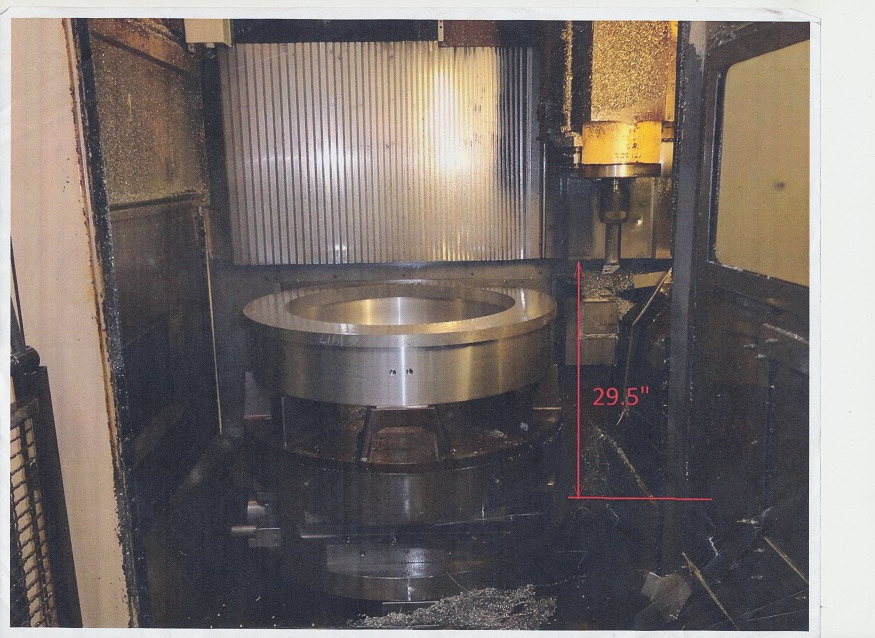

OD TOOL TIP TO TABLE TOP.......... 29.5"
RAPID TRAVERSE.................... 630 IPM (16000mm/min)
SPINDLE TAPER..................... CAT 50

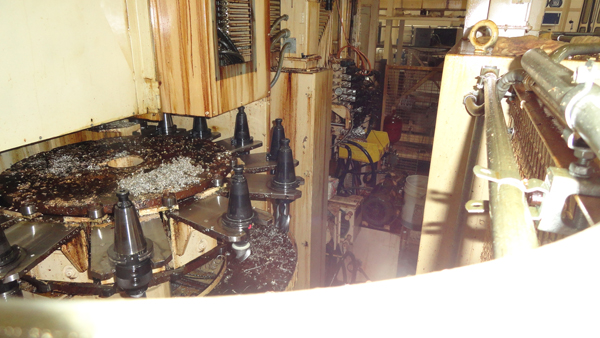

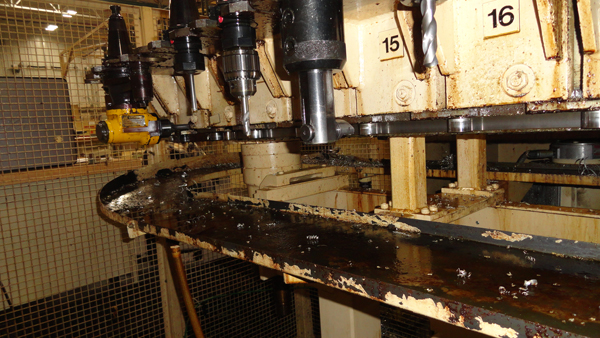

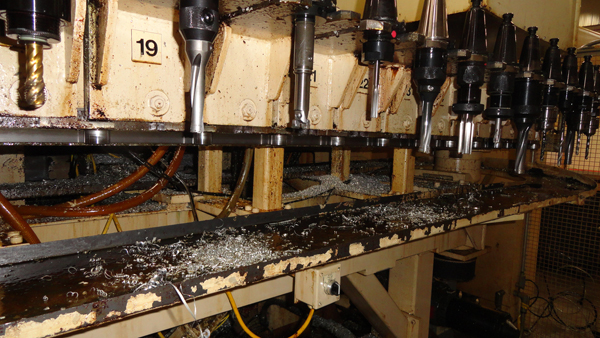

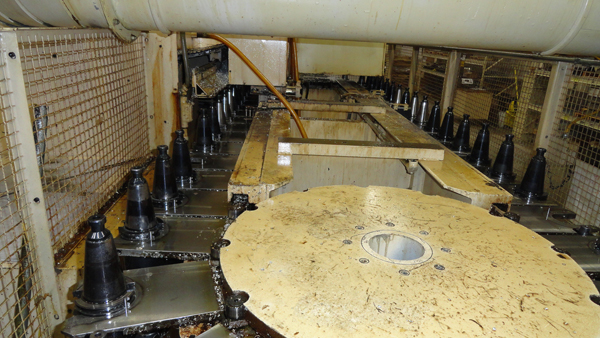

TOOL CHANGER CAPACITY............. 48 TOOLS
RPM RANGE OF LIVE TOOLING......... 0 - 2500 RPM
MACHINE HEIGHT.................... 16'
FLOOR SPACE....................... 8'6" X 12'
TOTAL MACHINE WEIGHT.............. 61,600 LBS
EQUIPPED WITH:
FANUC 16-T CONTROLLER
LIVE MILLING CAPABILITY WITH THRU TOOL COOLANT

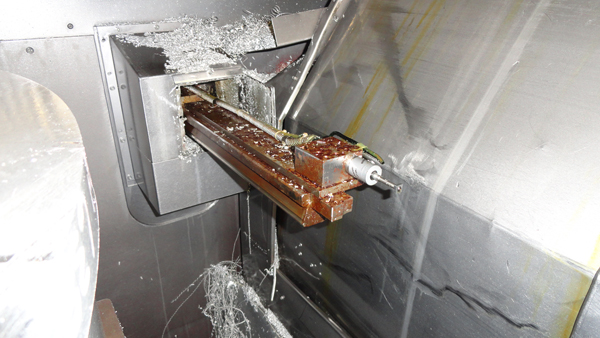

4 RIGHT ANGLE HEADS
MISC. END MILL HOLDERS, COLLET CHUCKS, AND BORING BAR HOLDERS

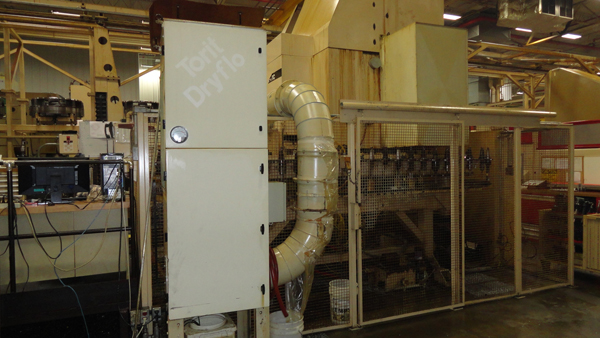

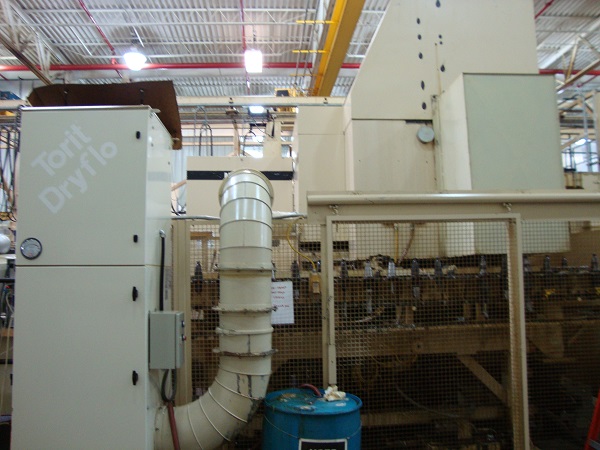

TORIT DRYFLO MIST COLLECTOR
