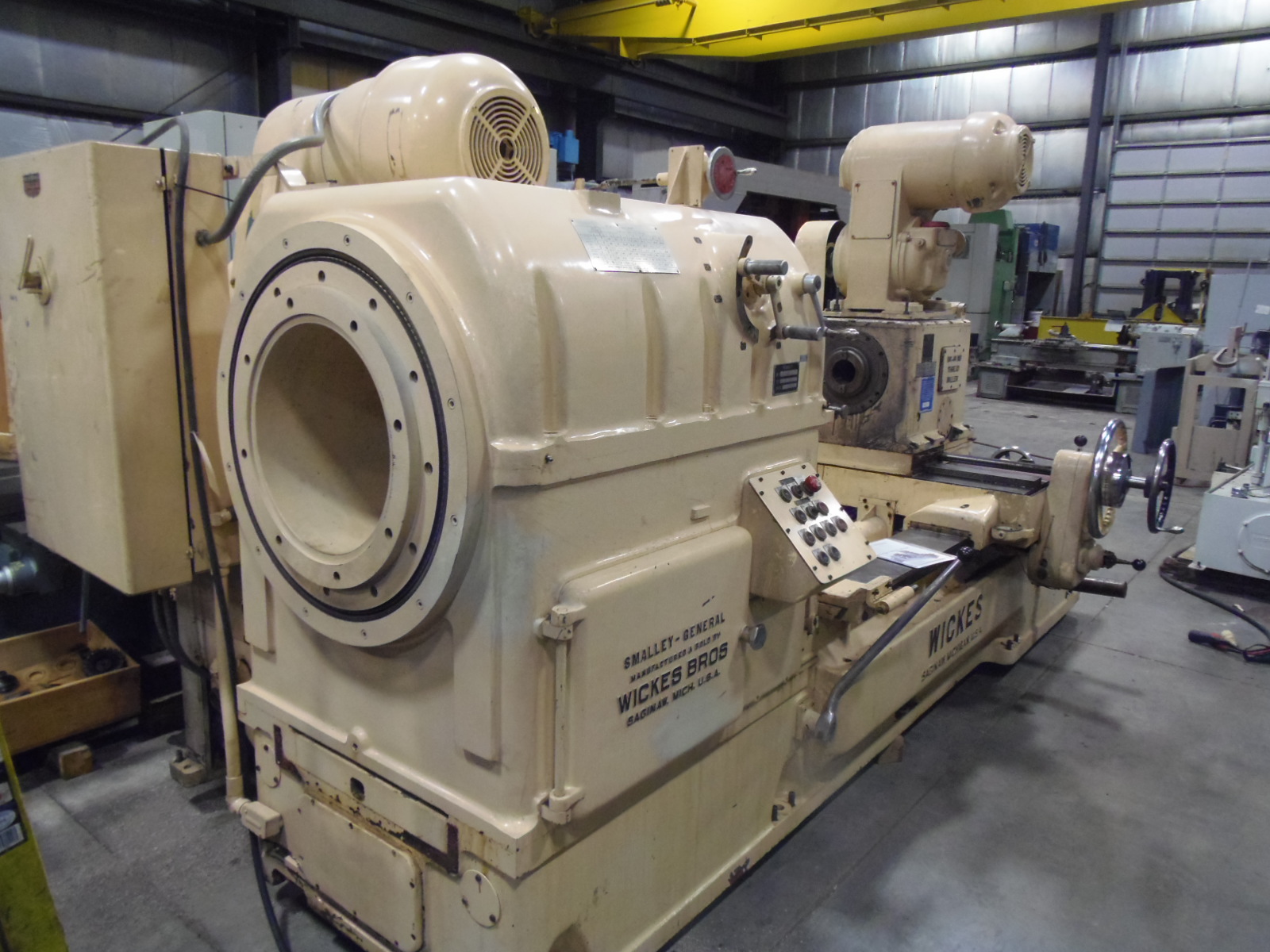

47.5" SWING, 18.5" HOLE, WICKES #44 MASTER THREAD MILLER, 67" BED, 1 -14 TPI, UP TO 14" LENGTH OF THREAD,

Brand
WICKES

Model
44

Type
Lathes, Oil Field & Hollow Spindle

Stock #
9487

Condition
Used

Year
1957

Request a Quote

Specifications

Equipped With

MANUFACTURER........................... WICKES
AGE.................................... 1957 GOVT. REBUILD 1985
SWING.................................. 47.5"
MAX. DISTANCE FACE TO SPINDLE FLANGE... 67.75"

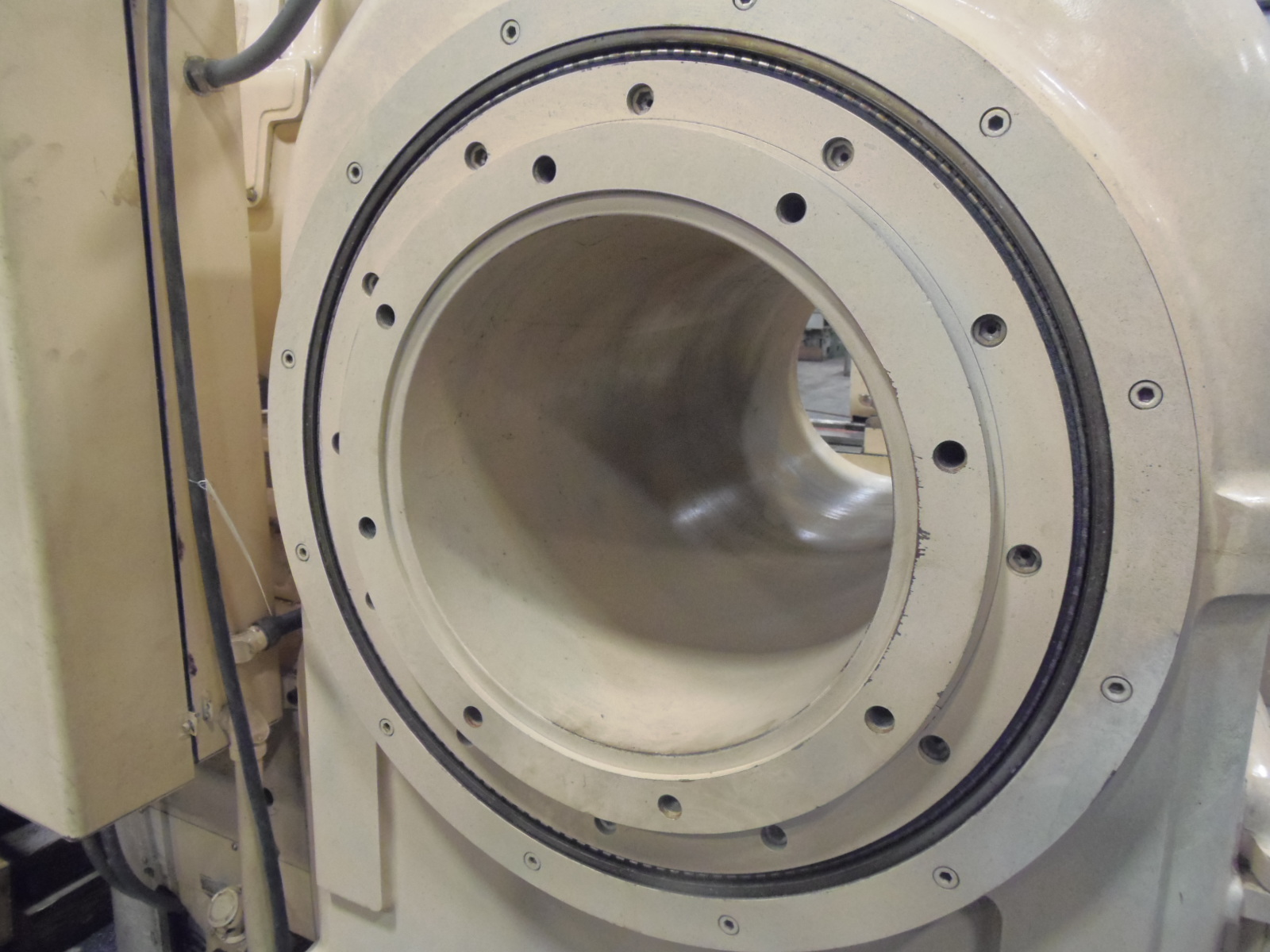

HOLE THRU SPINDLE...................... 18.5"

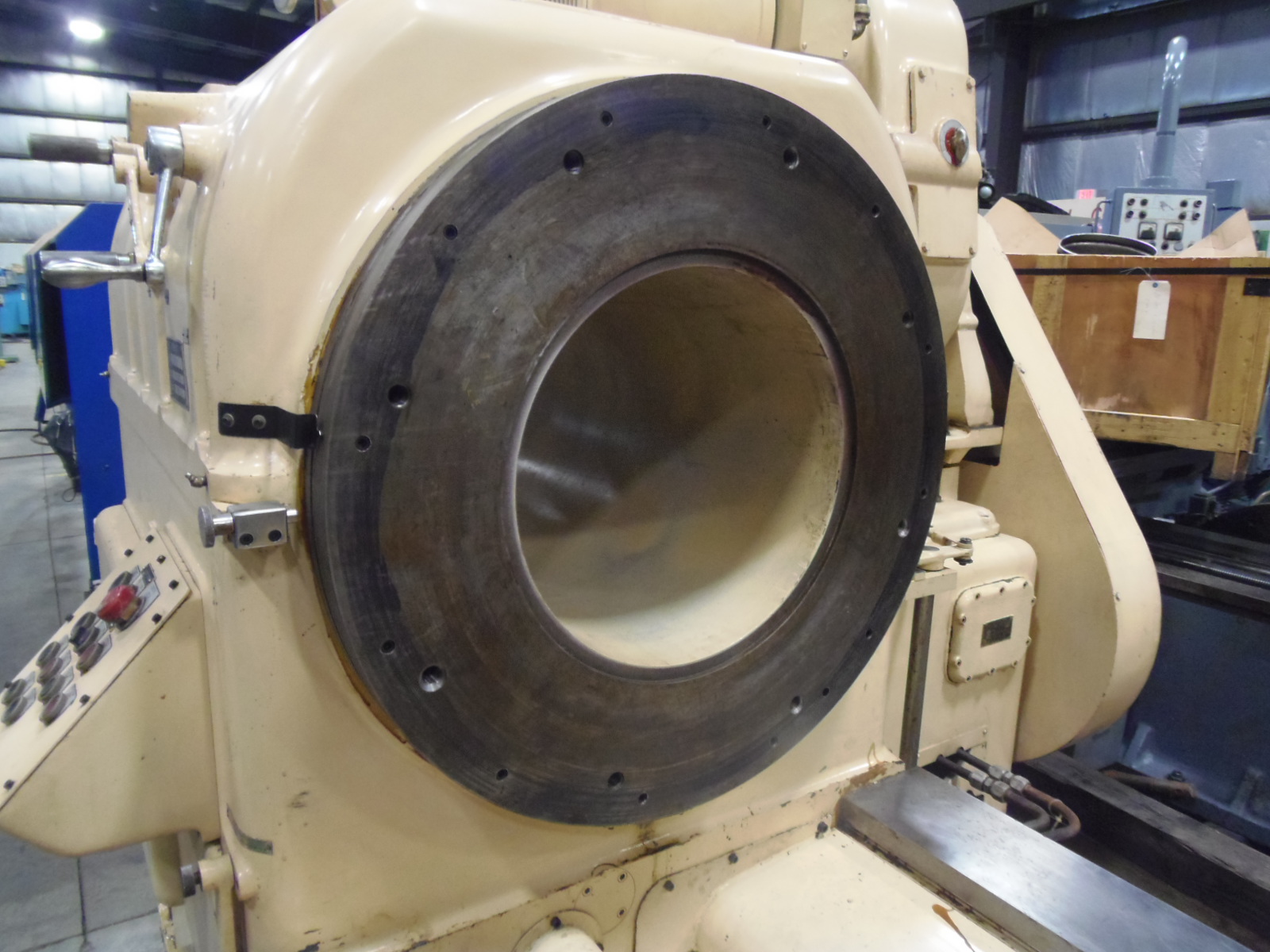

DIA. MAIN SPINDLE FLANGE............... 34"
THREADS NORMALLY MILLED................ 1 TO 14 THREADS PER INCH
MAX THREAD LENGTH...................... 14"

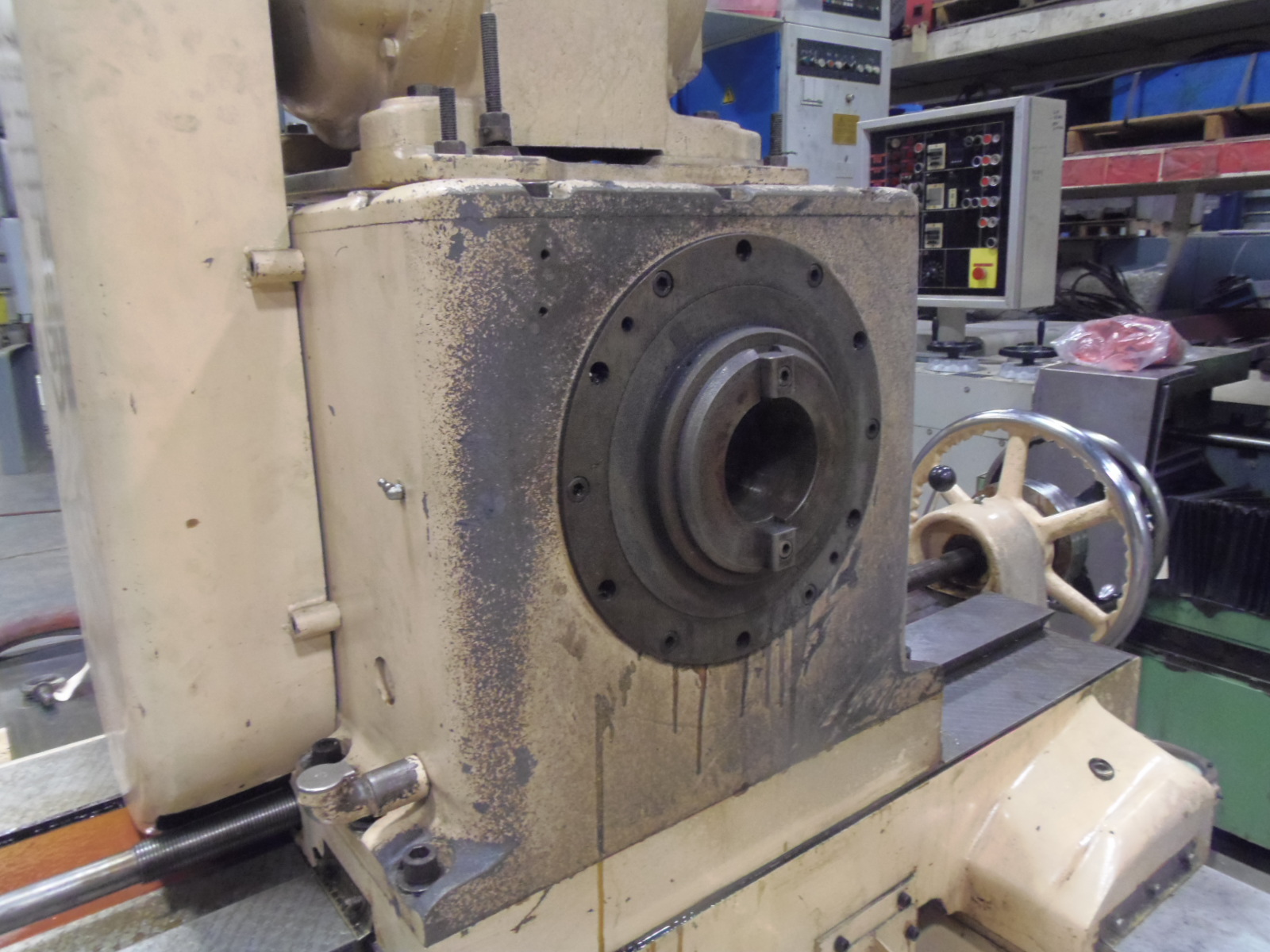

MILLING SPEEDS (TAIL STOCK)............ 1 - 100 RPM

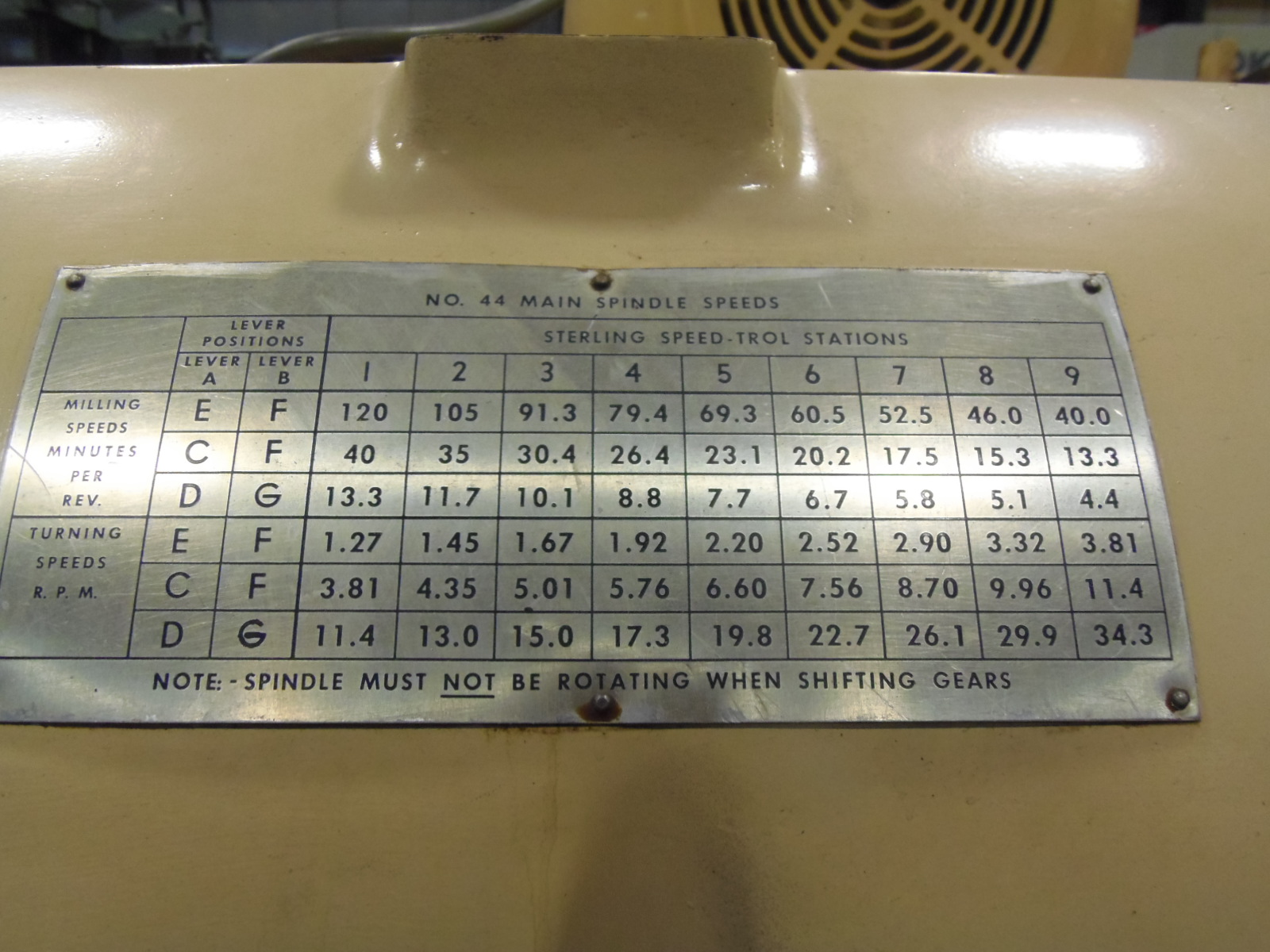

MAIN SPINDLE SPEED FOR MILLING......... 1.27 TO 34 RPM

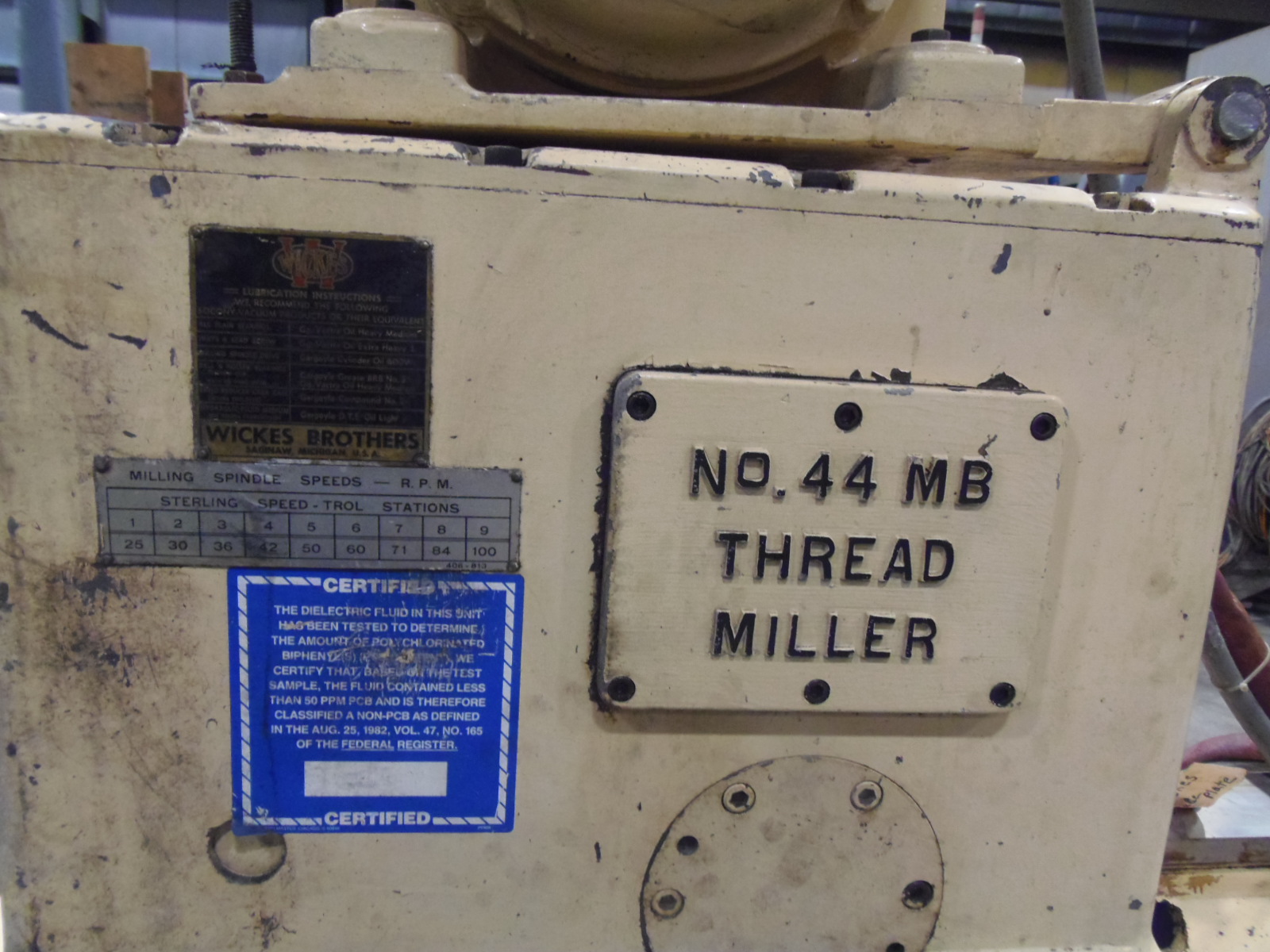

MILLING SPINDLE SPEEDS................. 44 TO 120 RPM
DIAMETER OF THREAD WITH 5.5"DIA. HOB... 24" EXTERNAL
                                    ... 34" INTERNAL

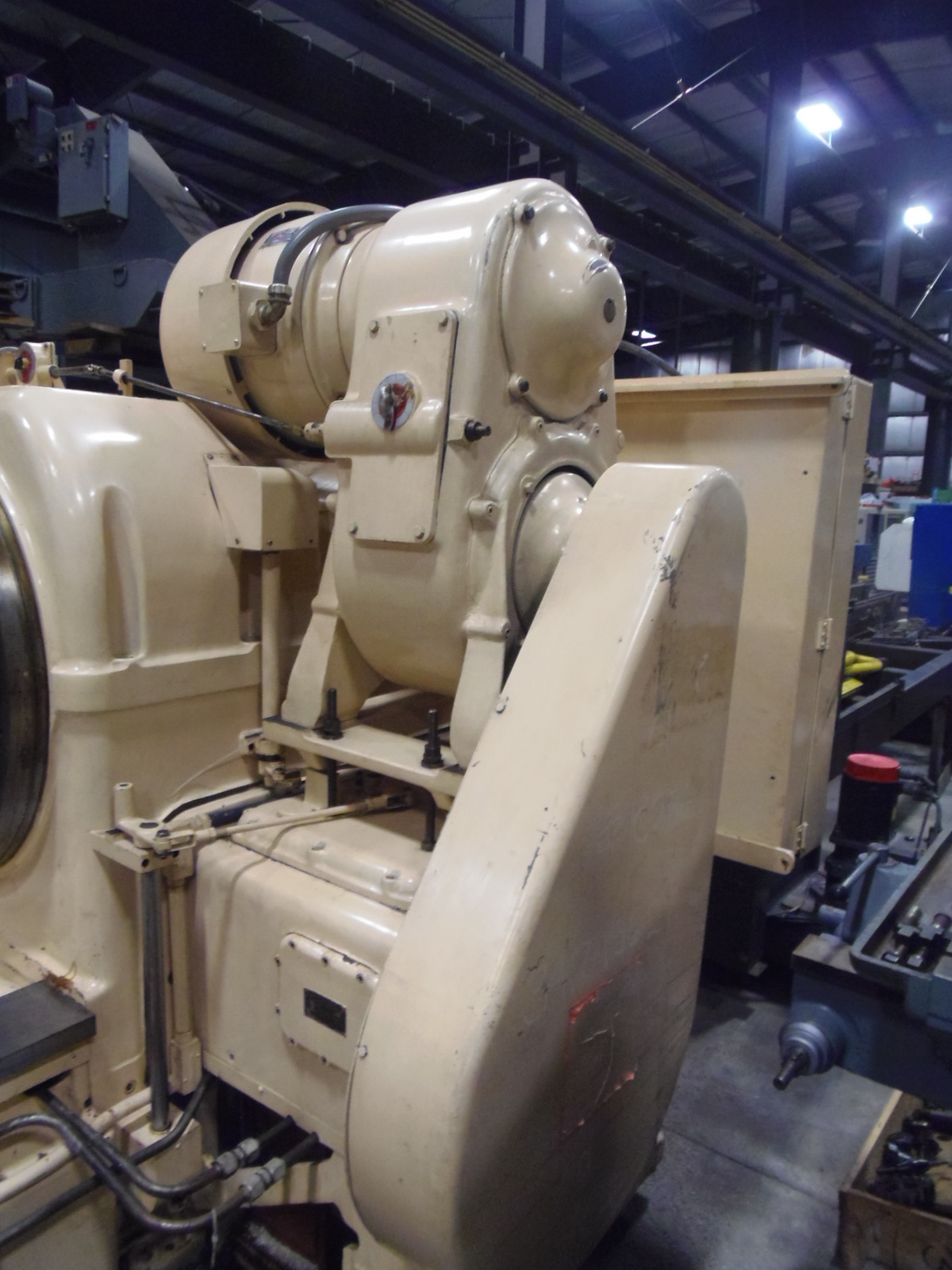

MAIN SPINDLE MOTOR..................... 15 HP
LARGE PITCH GEAR....................... 50-16
SMALL PITCH GEARS...................... 32, 33, AND 127 TEETH

SPECIFICATIONS SUBJECT TO VERIFICATION
