Specifications
Equipped With

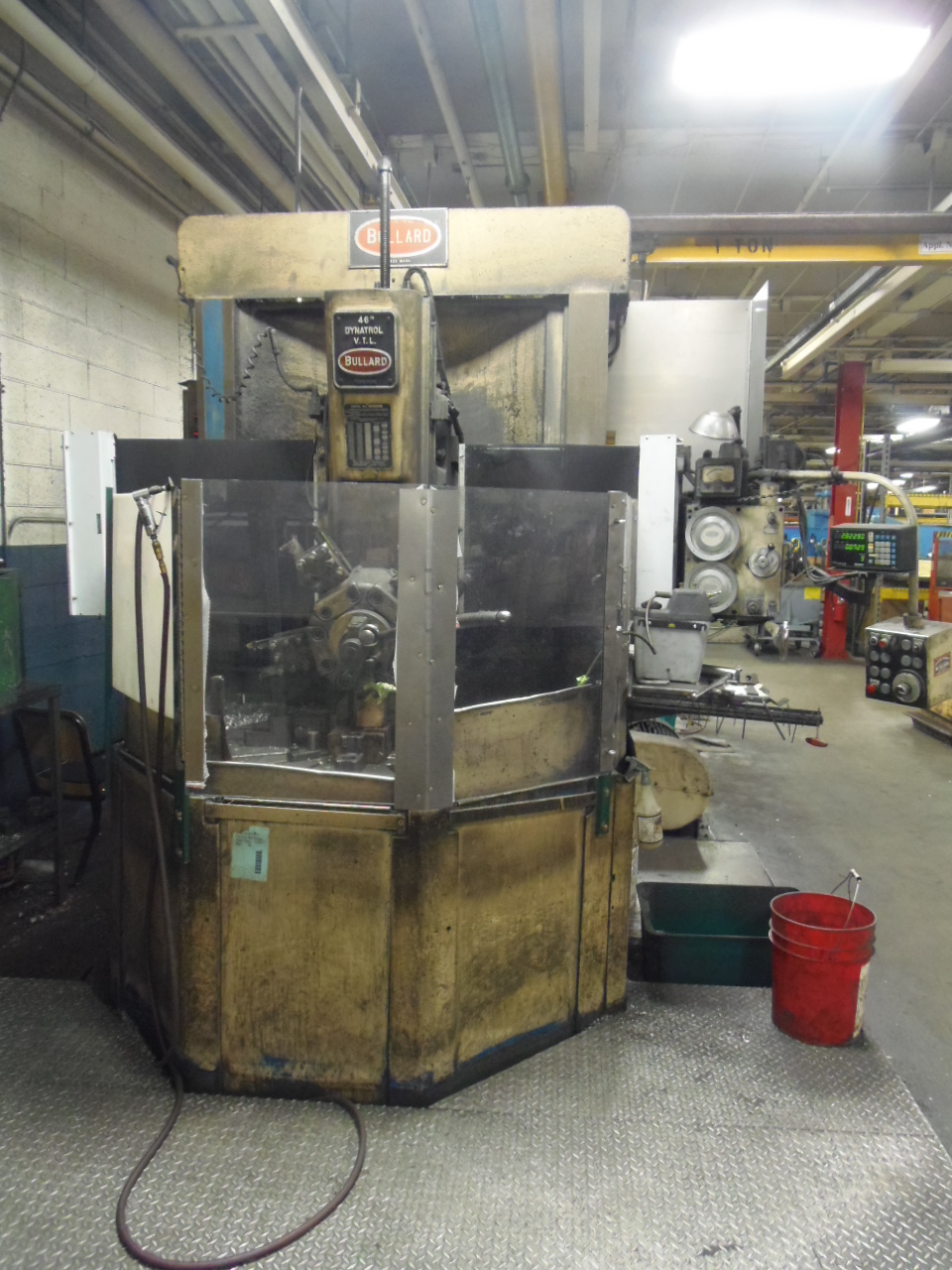

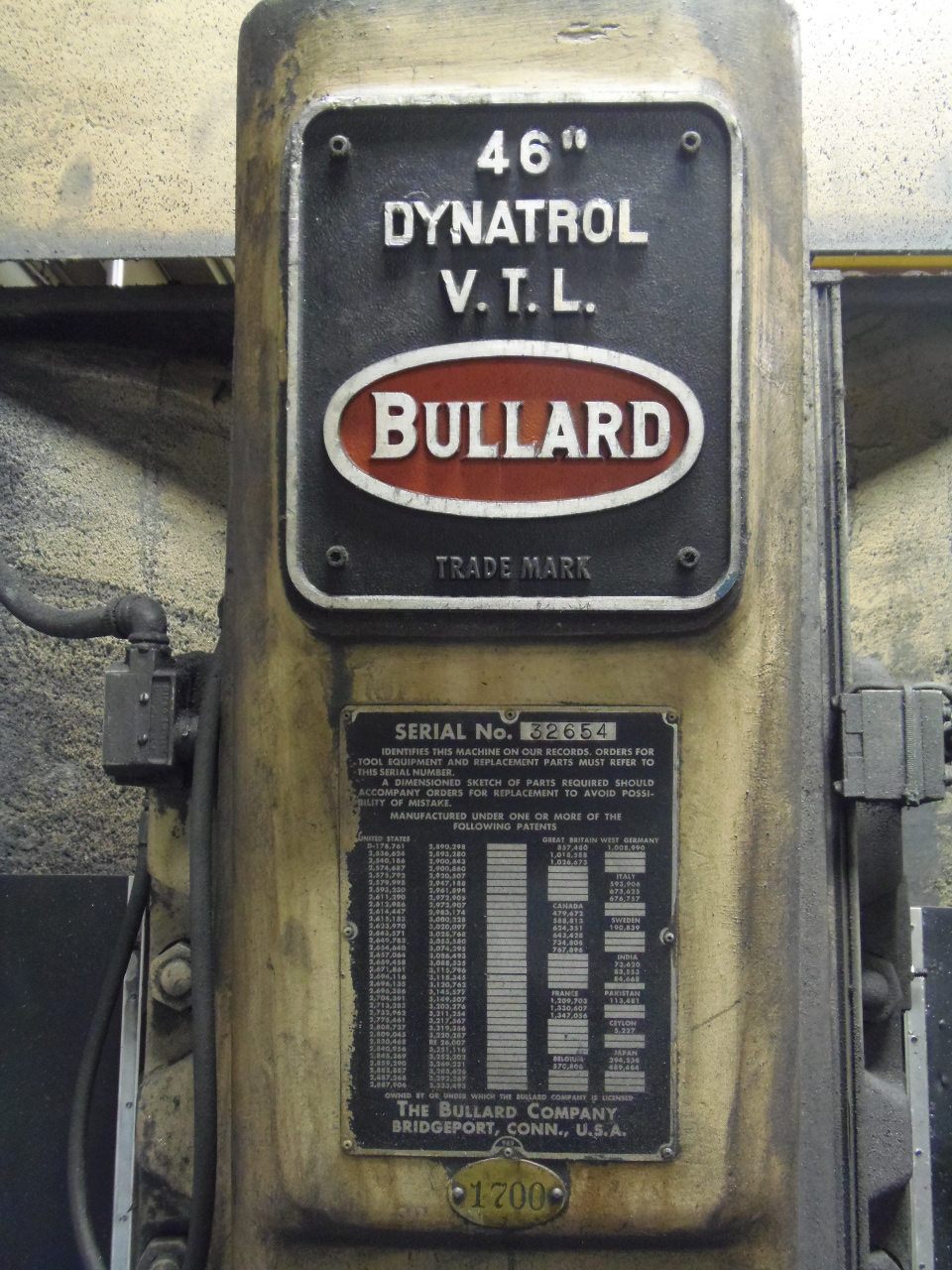

MODEL ............................... 46 "DYNATROL"
YEAR ................................ 1972
MAXIMUM SWING ....................... 58"
DIAMETER OF 4-JAW CHUCK ............. 48"
TABLE SPEED ......................... (20) 9 TO 313 RPM
MAXIMUM UNDER RAIL .................. 38"
FEEDS ............................... .001 TO .250 IPM
VERTICAL TRAVEL OF RAIL ............. 40"
VERTICAL TRAVEL OF RAM .............. 26"
HORIZONTAL TRAVEL ON RAIL ........... 70"
TURRET HEAD ON CROSS RAIL ........... YES
5 POSITION TURRET HEAD .............. YES
PENDANT CONTROL ..................... YES
MOTOR ............................... 40 HORSEPOWER
ELECTRICS............................ 480V /3PH / 60HZ
FLOOR SPACE.......................... 155" x 104" x 115" H
EQUIPPED WITH:

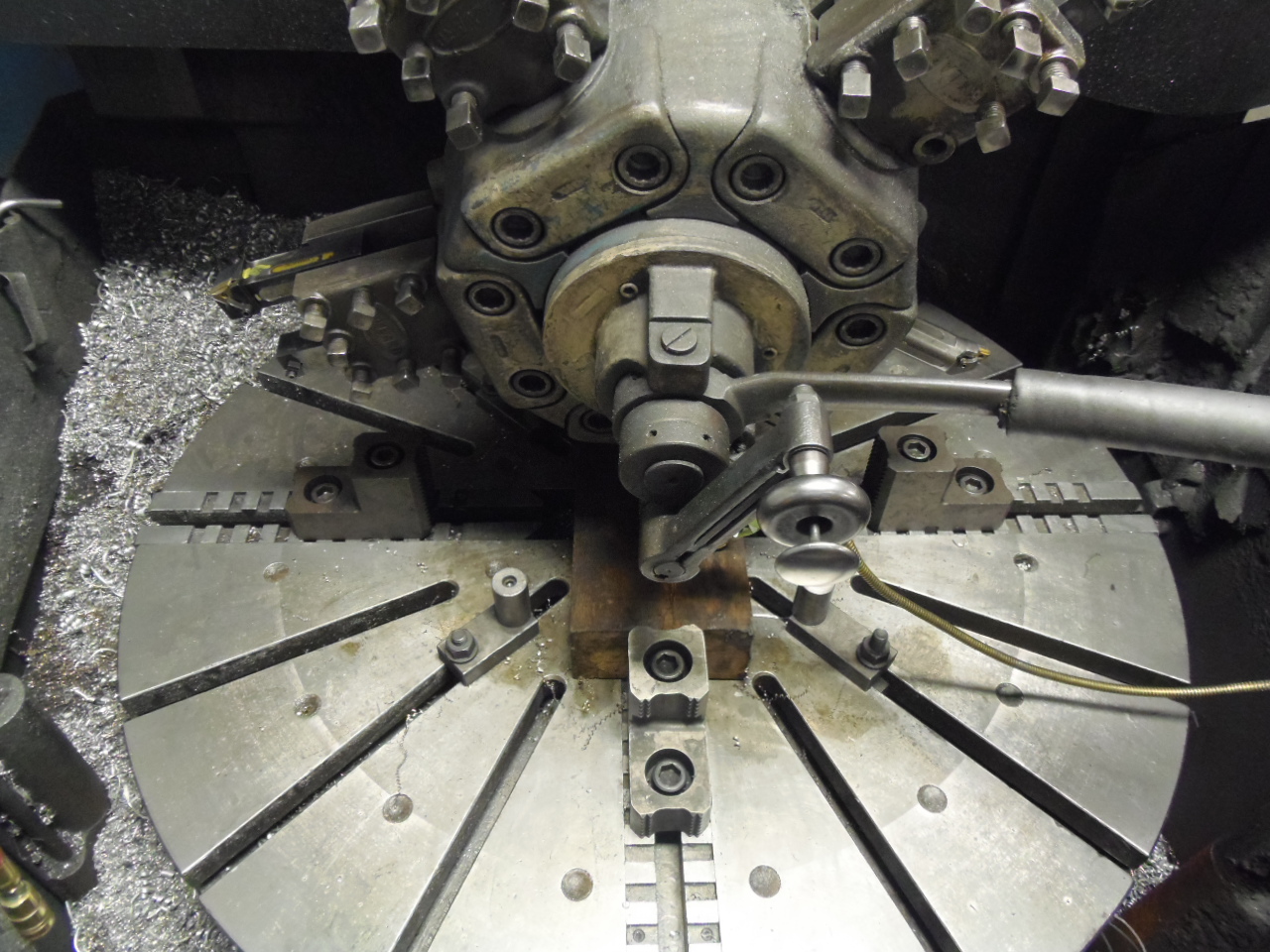

5 POSITION TURRET HEAD
ADJUSTABLE RAIL

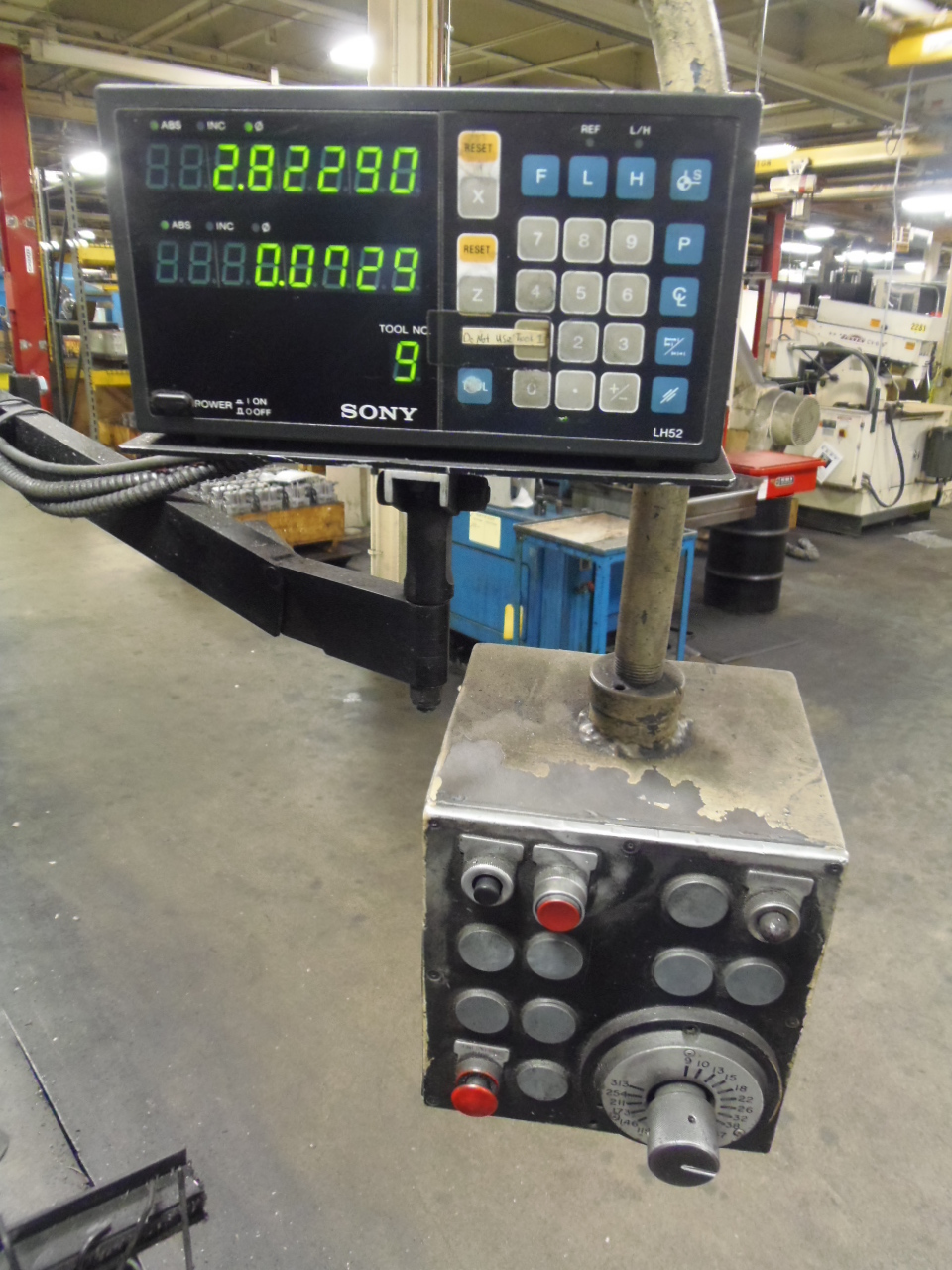

SONY DIGITAL READOUT
PENDENT CONTROL
