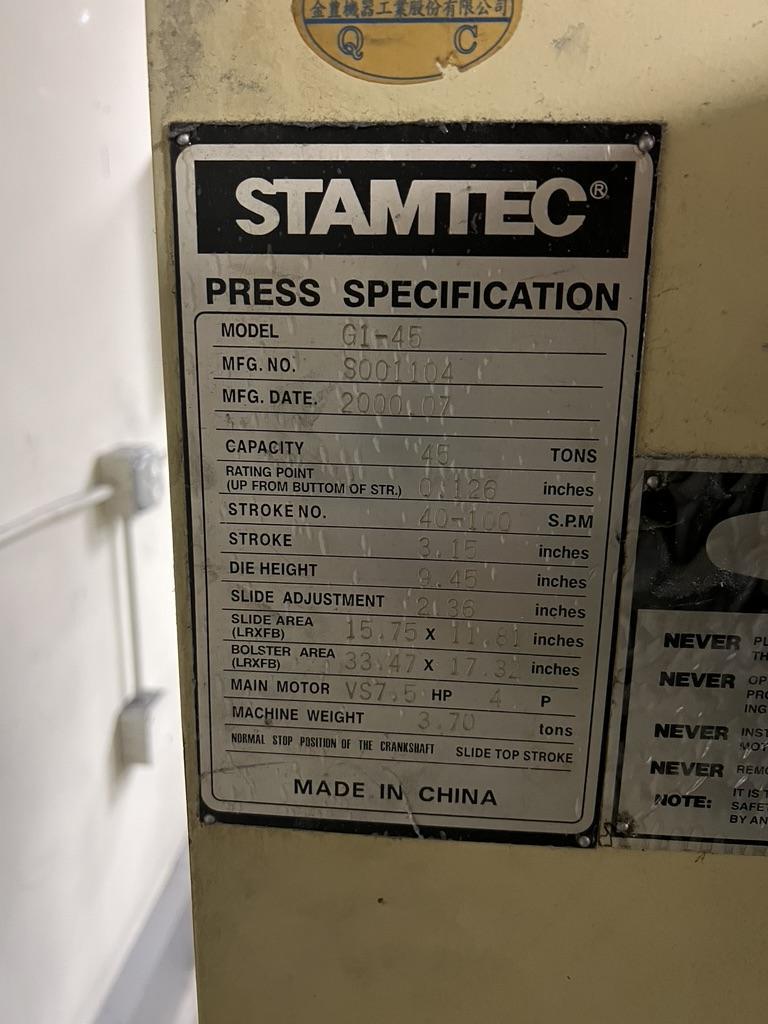

Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER........................ STAMTEC
MODEL............................... G1-45
SERIAL NUMBER....................... S001104
AGE................................. 2000
CAPACITY............................ 45 TONS
STROKES............................. 40 - 100 SPM
STROKE.............................. 3.15"
DIE HEIGHT.......................... 9.45"
SLIDE ADJUSTMENT.................... 2.36"
SLIDE AREA.......................... 15.75" X 11.81"
BOLSTER AREA........................ 33.47" X 17,32"
MAIN MOTOR.......................... 7.5 HP VARY SPEED
WEIGHT.............................. 7,400 LBS
EQUIPPED WITH:
LIGHT CURTAINS
DUAL PALM BUTTONS
FOOT PEDAL
