Specifications
Equipped With
GENERAL SPECIFICATIONS:

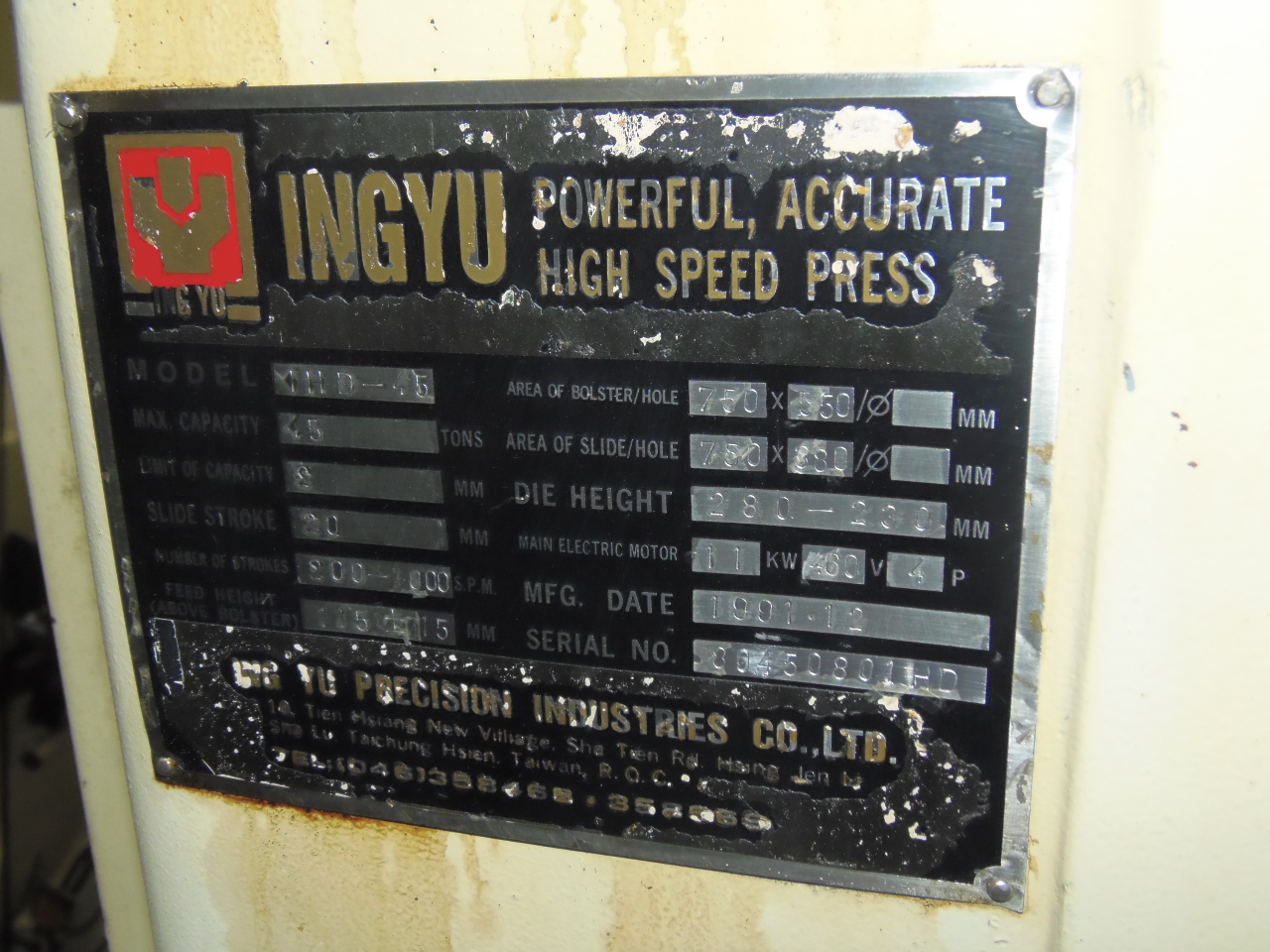

MANUFACTURER...................... INGYU
MODEL............................. IHD-45
TONNAGE........................... 45
SERIAL NUMBER..................... 8045080 IHD
NEW............................... 1991
STROKE............................ .78" (20mm)
SLIDE ADJUSTMENT.................. 1.96" (50mm)
STROKES PER MIN................... 200 - 1000 SPM
DIE HEIGHT........................ 11" (280mm)
BOLSTER SIZE...................... 29.5" X 21.65" (750mm X 550mm)
BOLSTER THICKNESS................. 4.72" (120mm)
RAM SIZE.......................... 29.5" X 14.96" (750mm X 380mm)
VOLTAGE........................... 460V 3 PHASE 60 CYCLE
EQUIPPED WITH

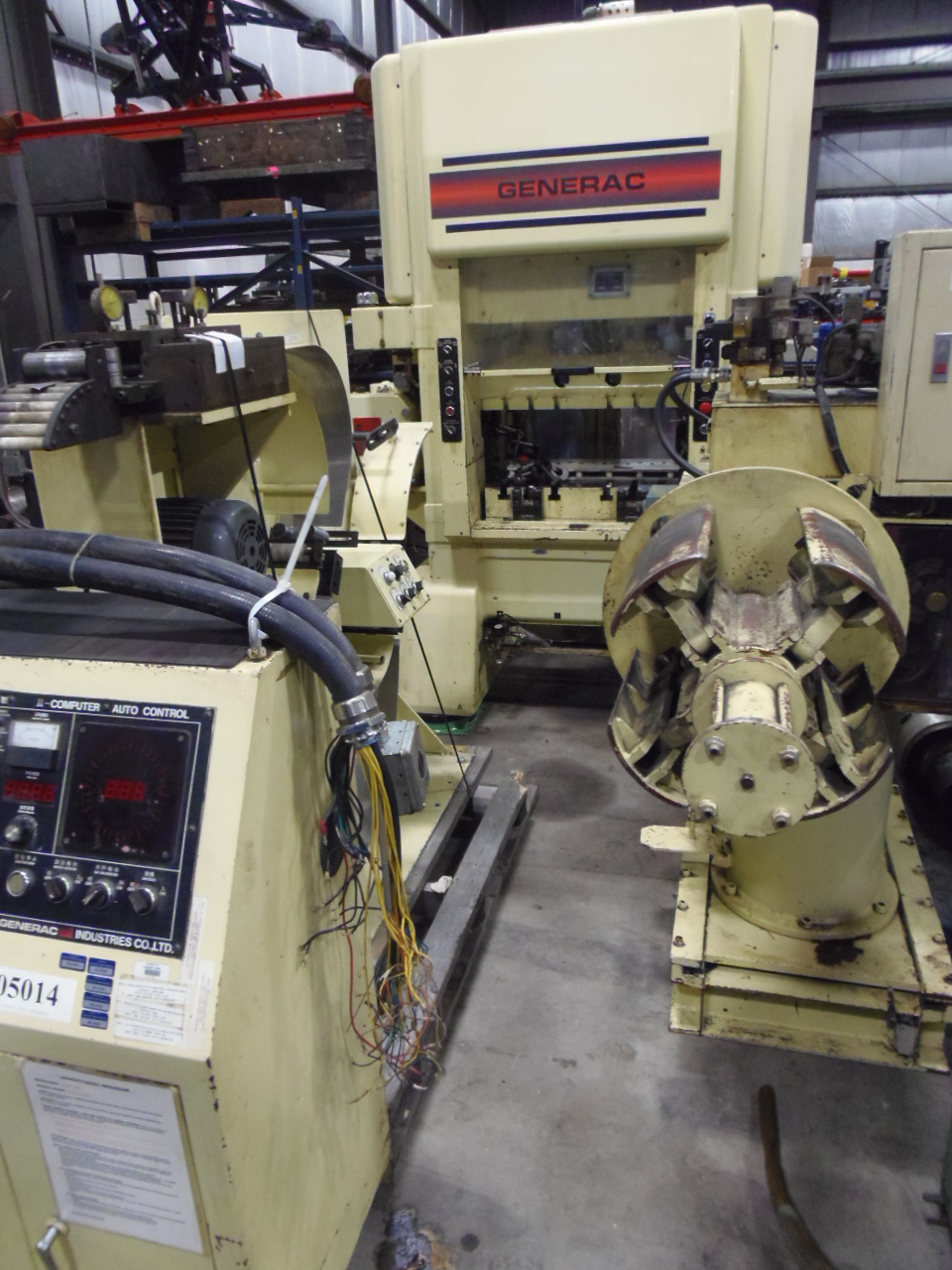

SYNCHRONOUS FEEDING SYSTEM

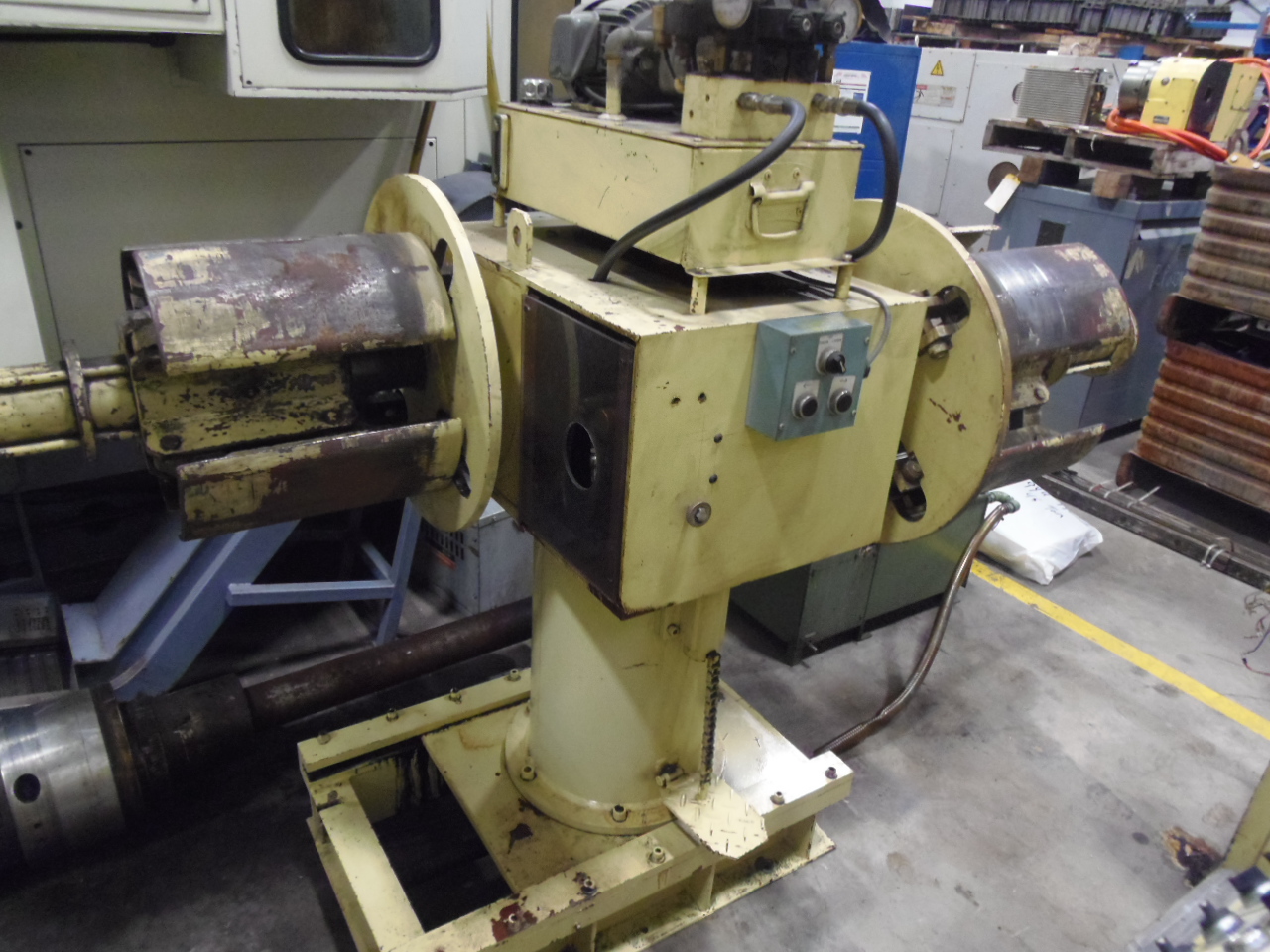

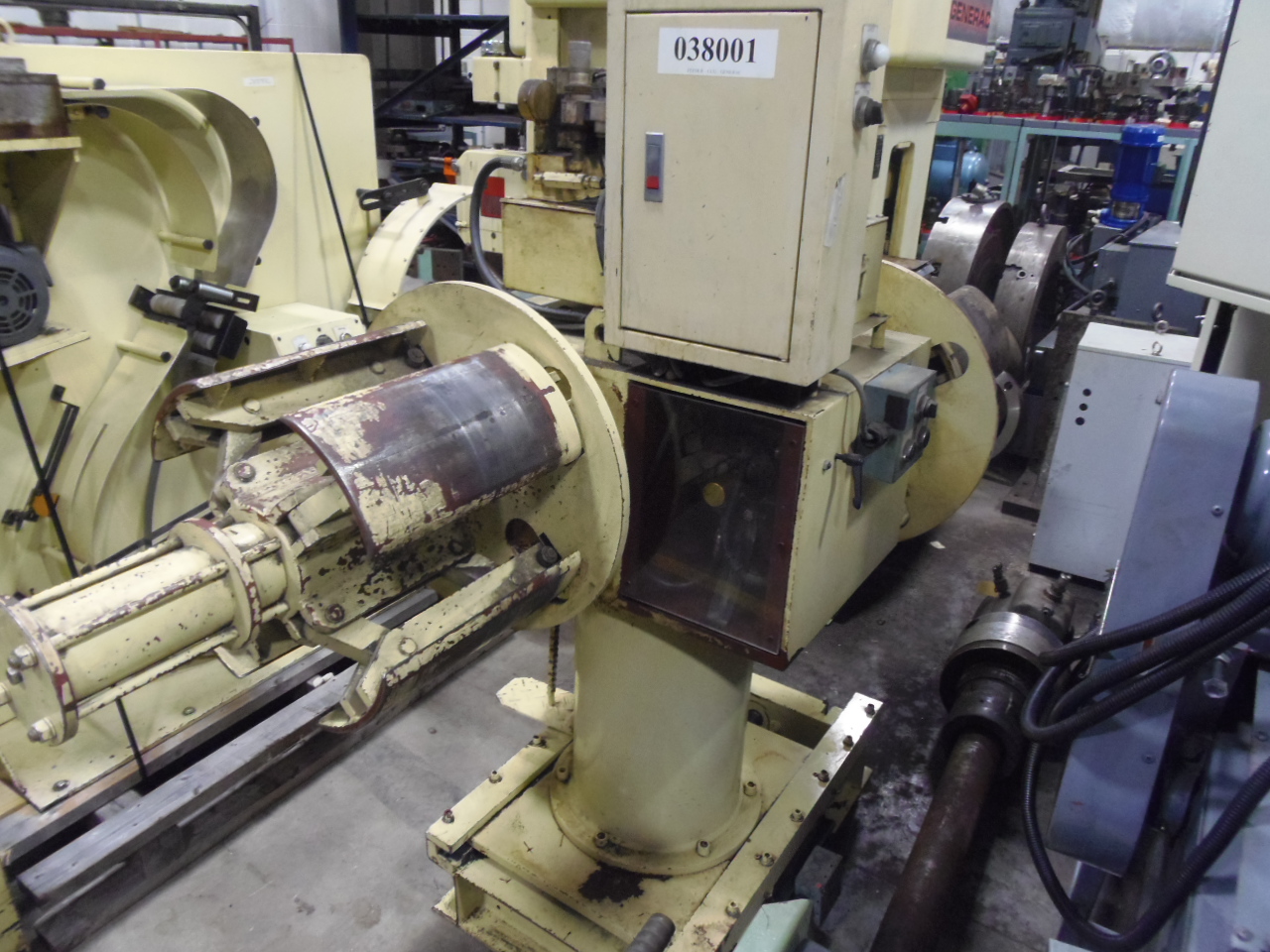

DOUBLE HEAD UNCOILER

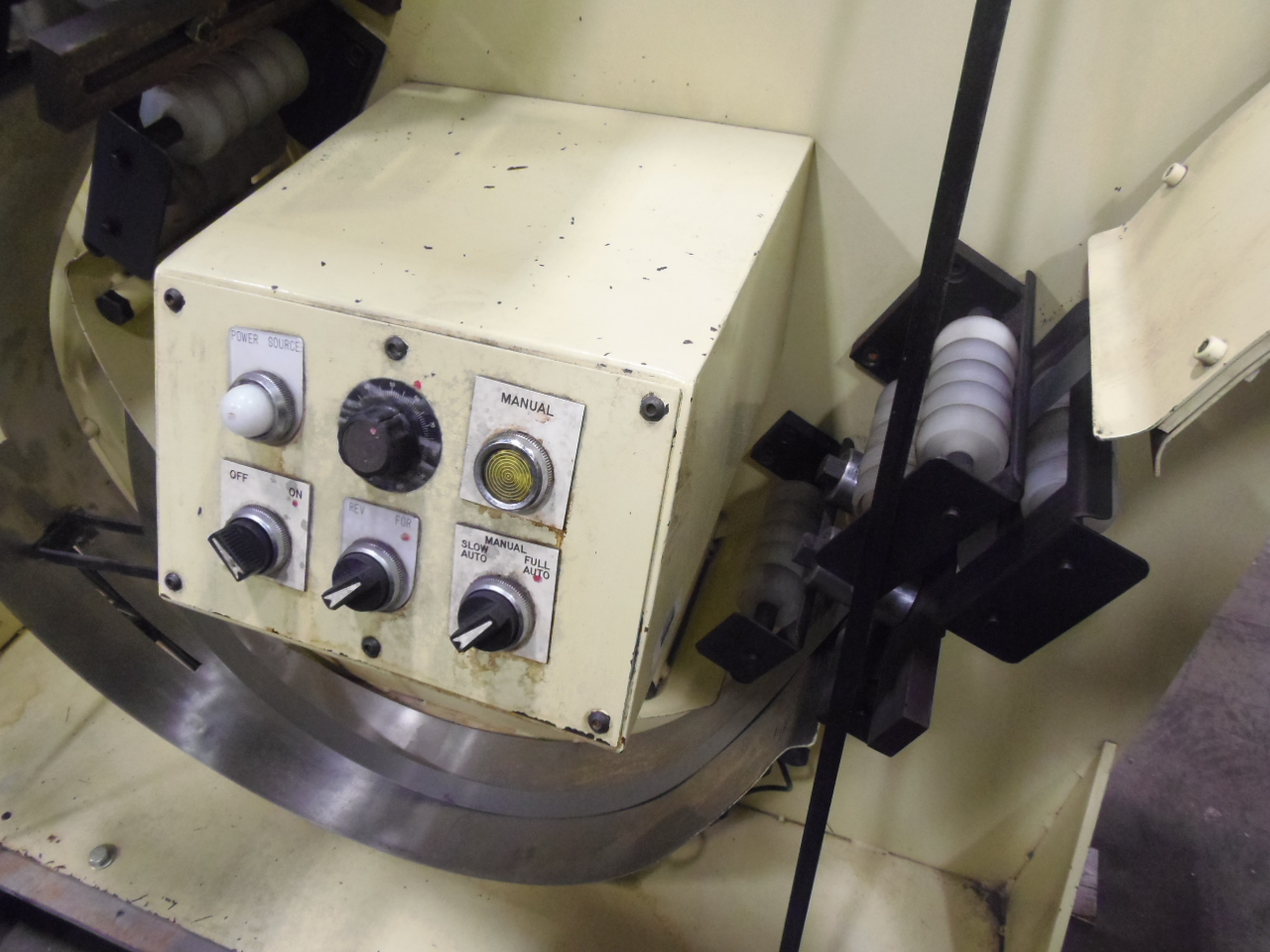

LOOP CONTROL

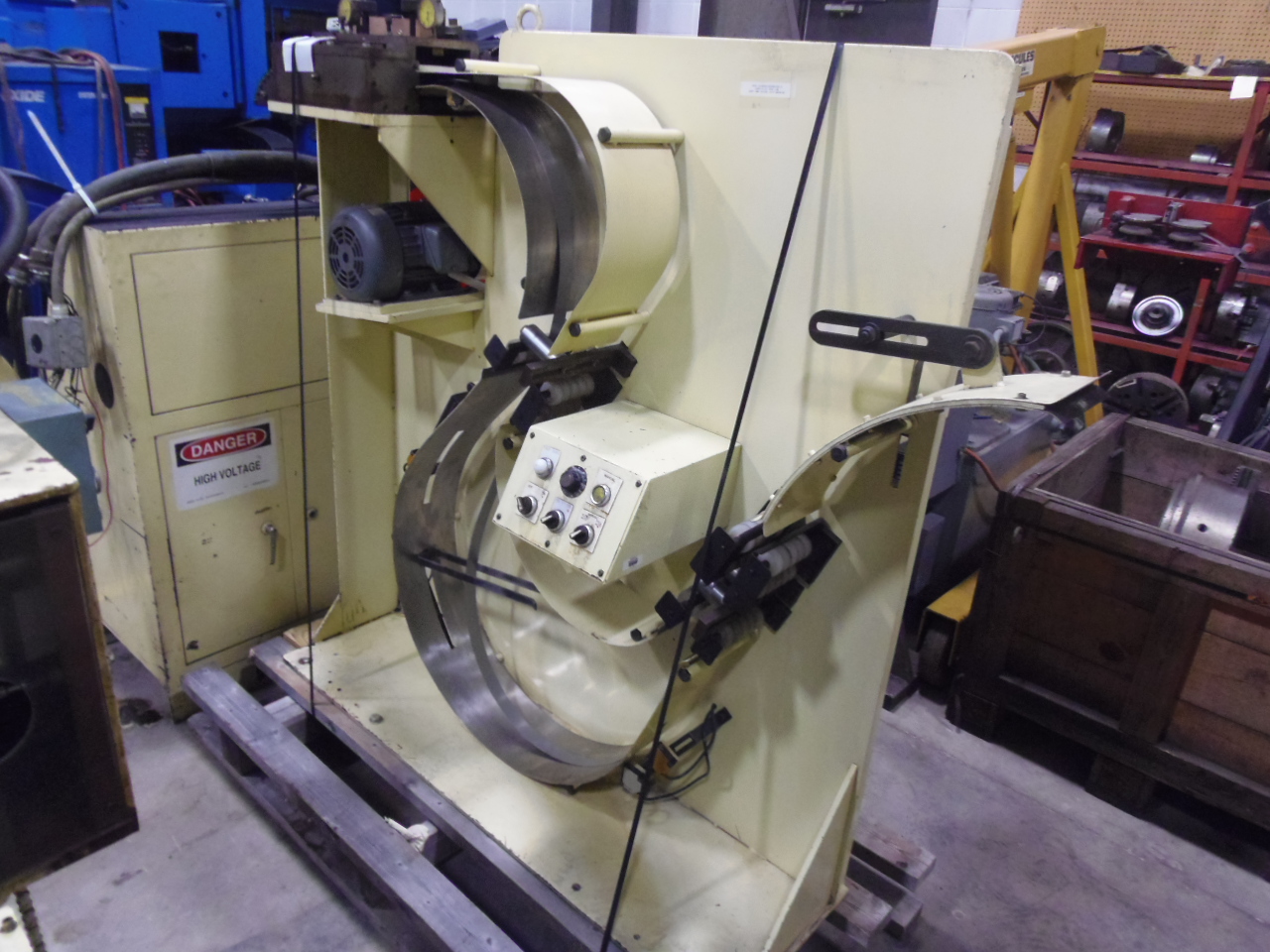

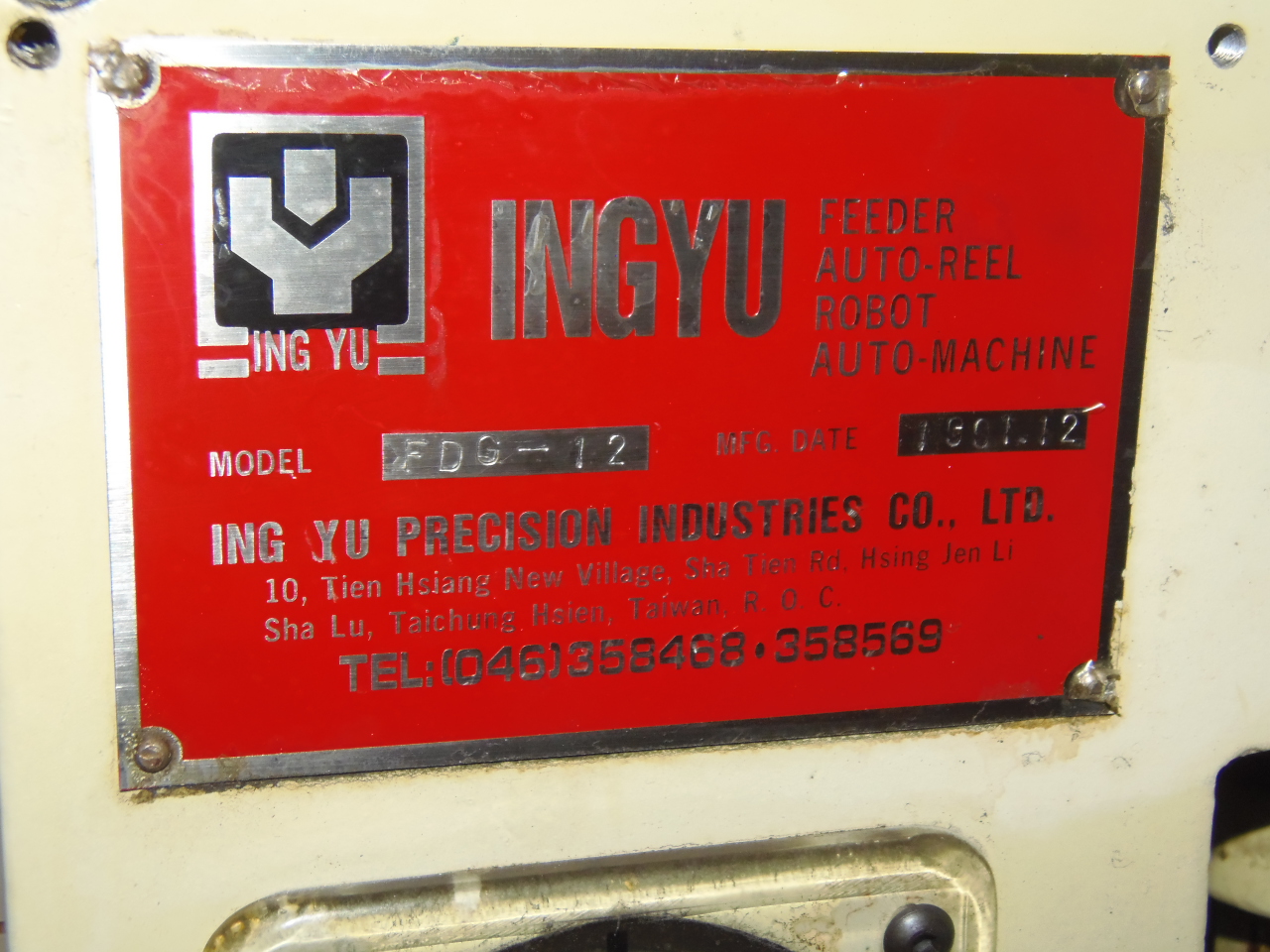

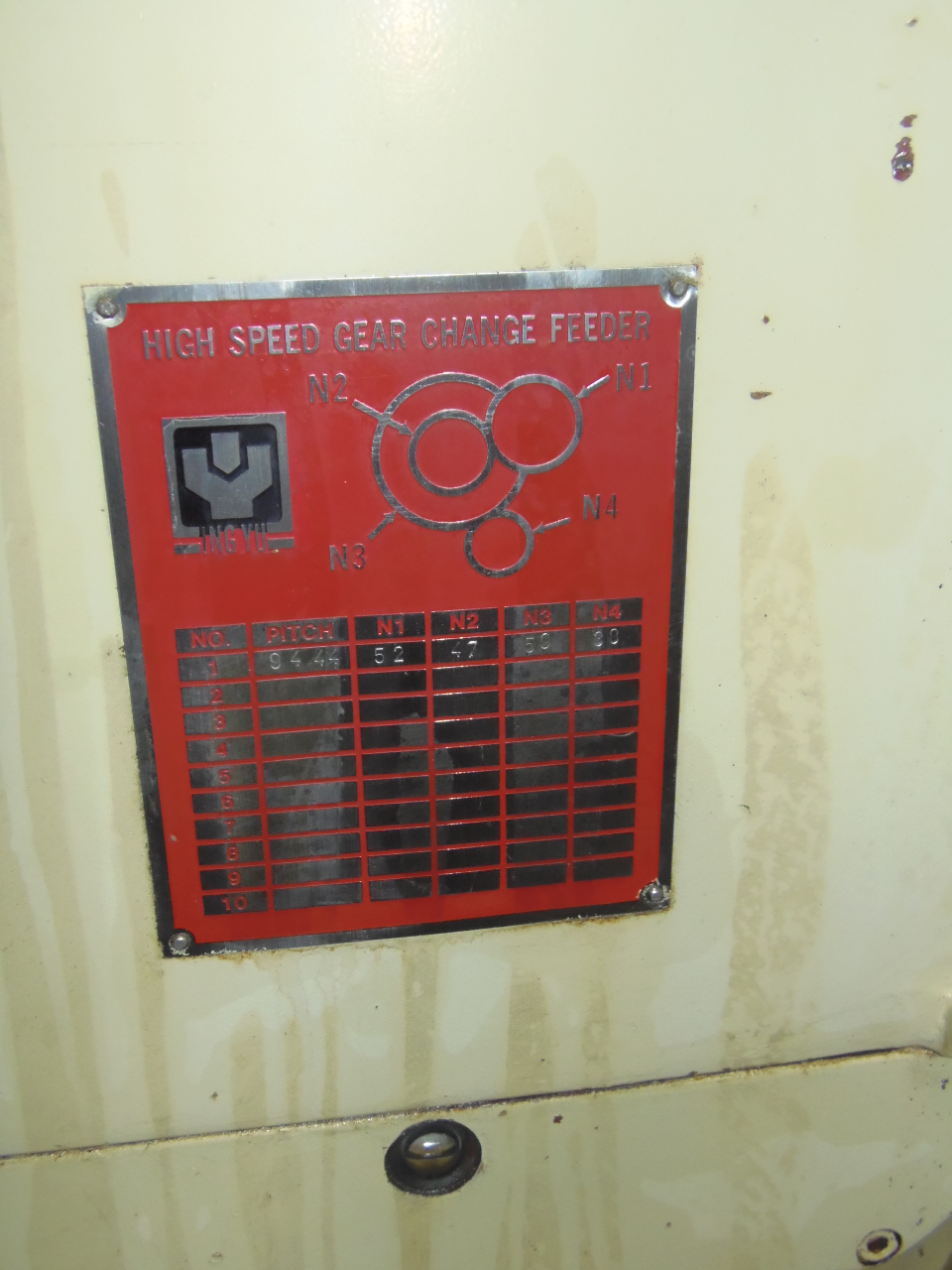

HIGH SPEED FEEDER WITH S LOOP AND STRAIGHTENER
MAX. WORK WIDTH 4.72" (120mm)
MAX. WORK THICKNESS .09" (2.3mm)
MAX. FEED SPEED (60 meters/min.)

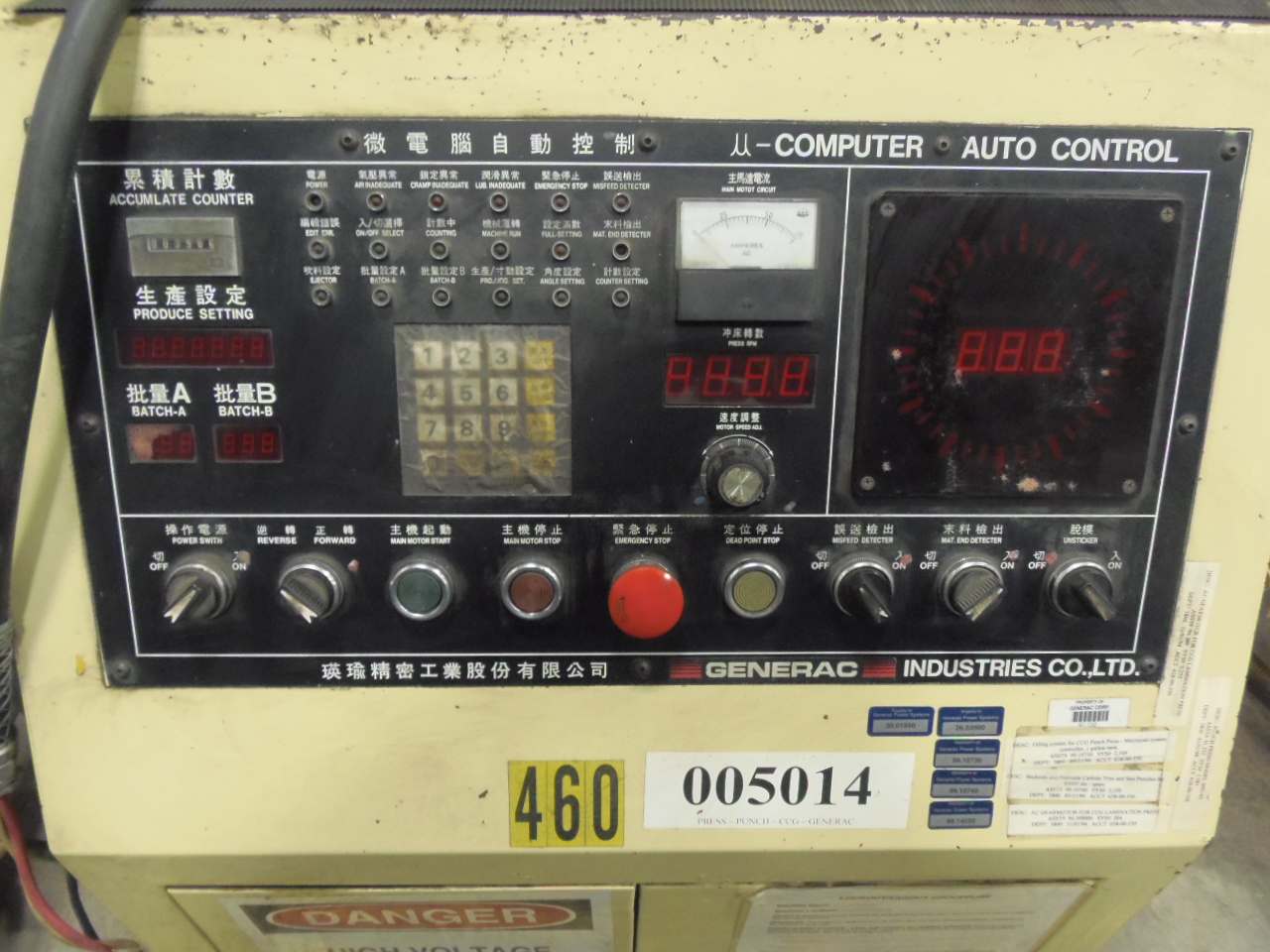

CNC CONTROL WITH READOUT
CRANK ANGLE INDICATOR
SPEED METER
WORK COUNTER

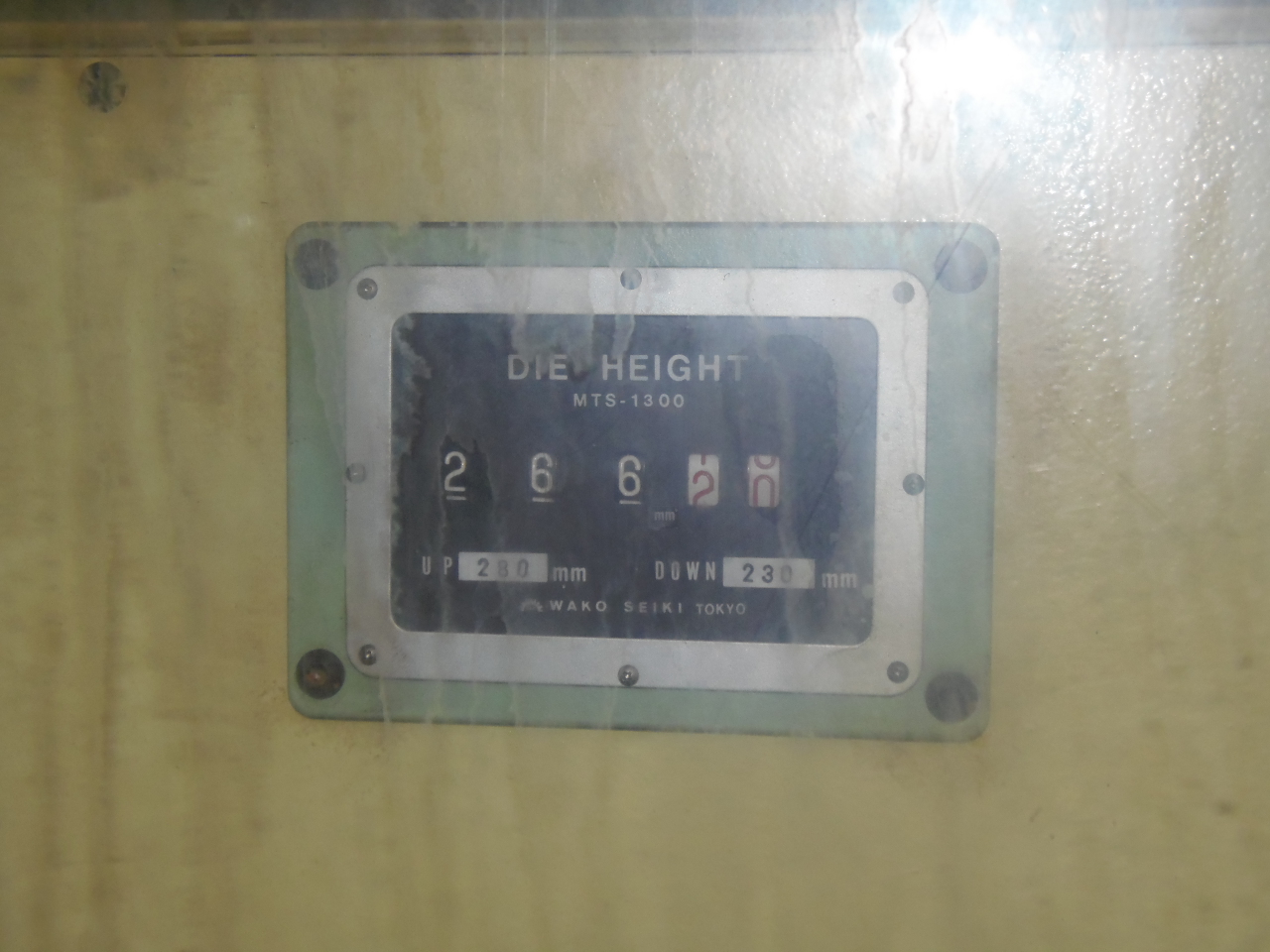

DIGITAL DIE HEIGHT INDICATOR
MISSFEED PLUG SOCKET
VARIABLE SPEED MOTOR
FORCED CIRCULATING LUBRICATION SYSTEM
SEPARATE TYPE CLUTCH BRAKE
PNEUMATIC MOUNTS
