GENERAL SPECIFICATIONS:

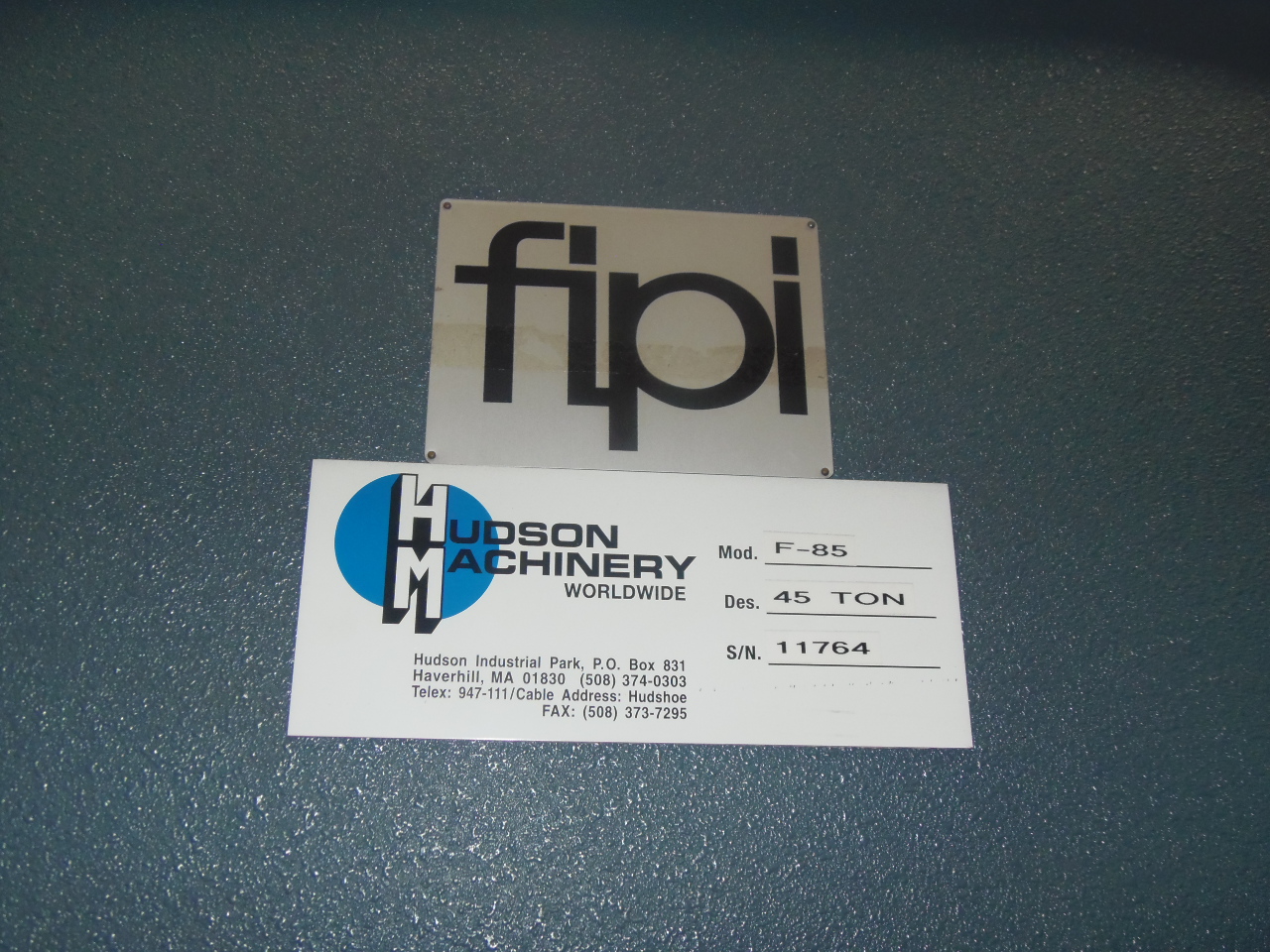

MANUFACTURER....................... HUDSON (FIPI)
MODEL.............................. F-85
SERIAL NUMBER...................... 11764

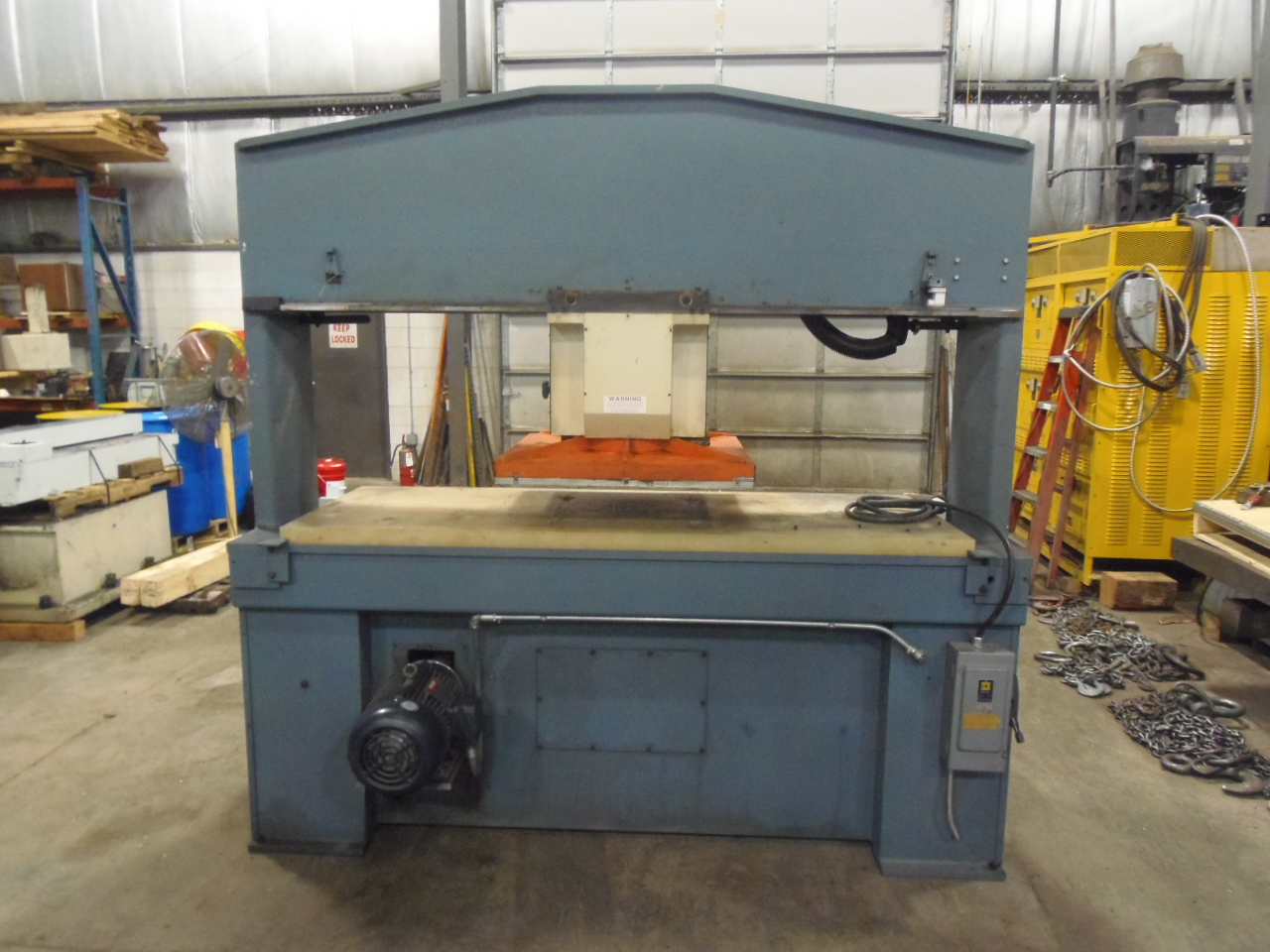

TYPE............................... TRAVELING HEAD
TABLE AREA......................... 29.5" x 84"

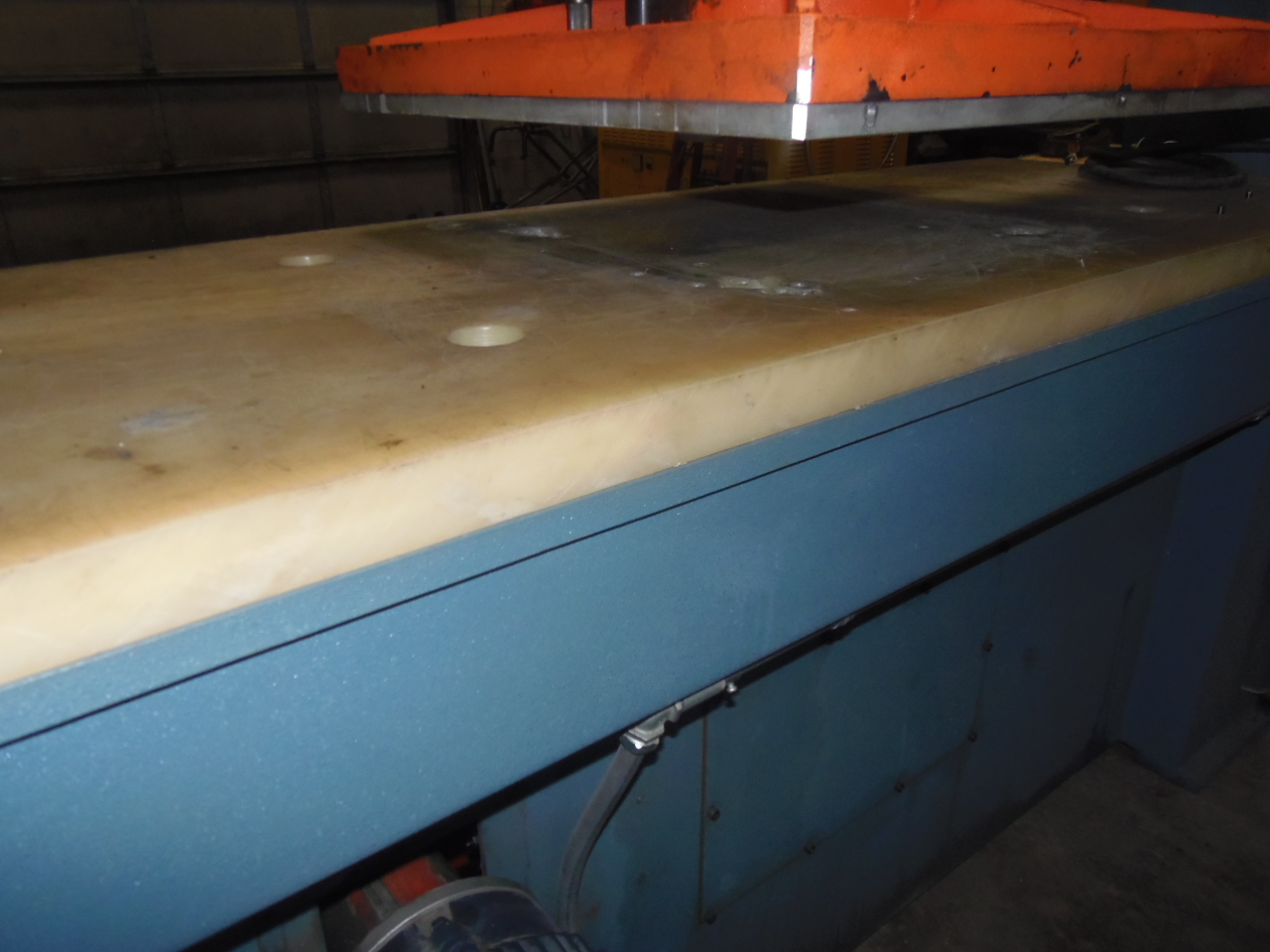

NYLON BOLSTER AREA................. 29.5" X 79.5" X 2" THICK

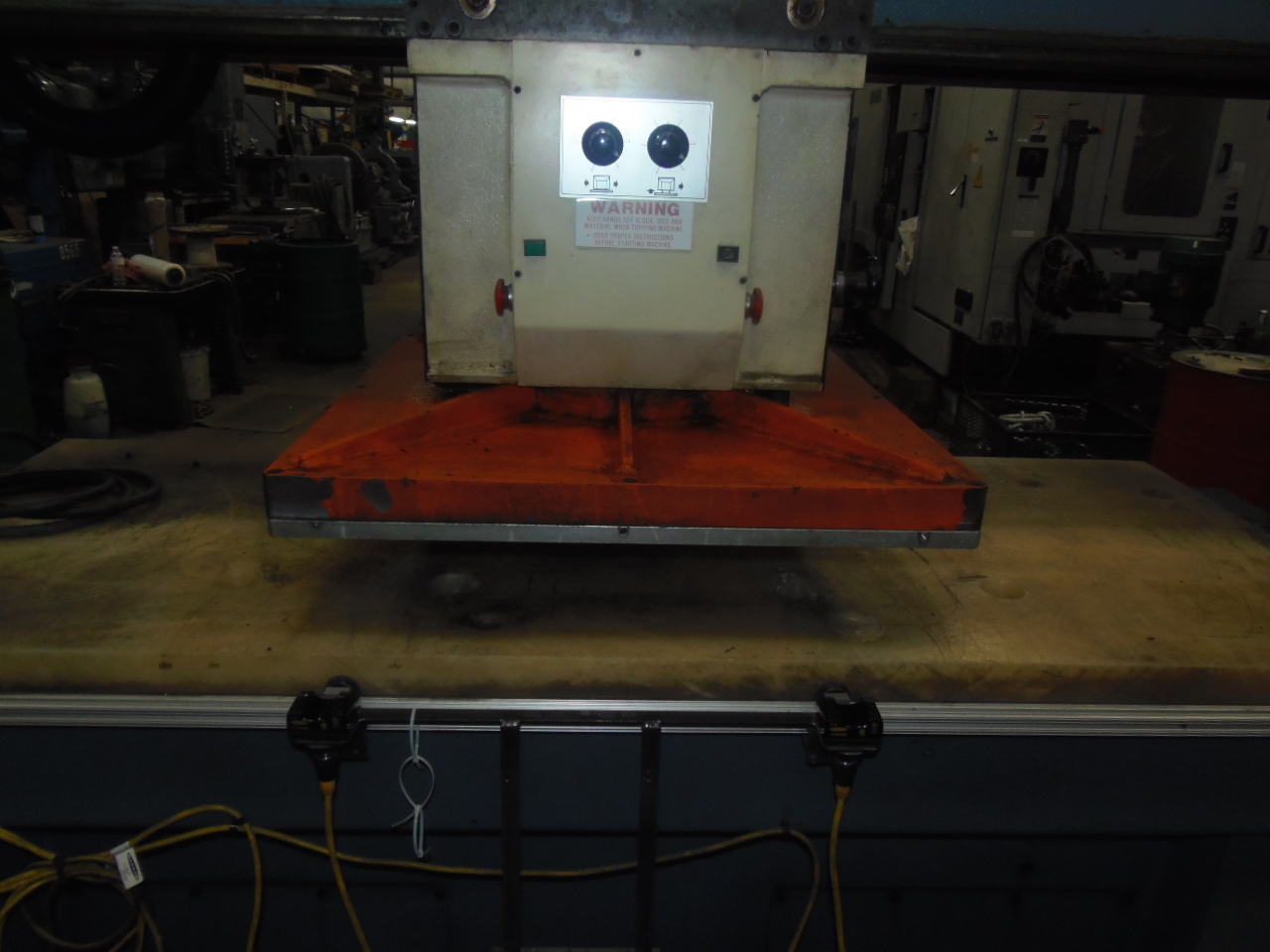

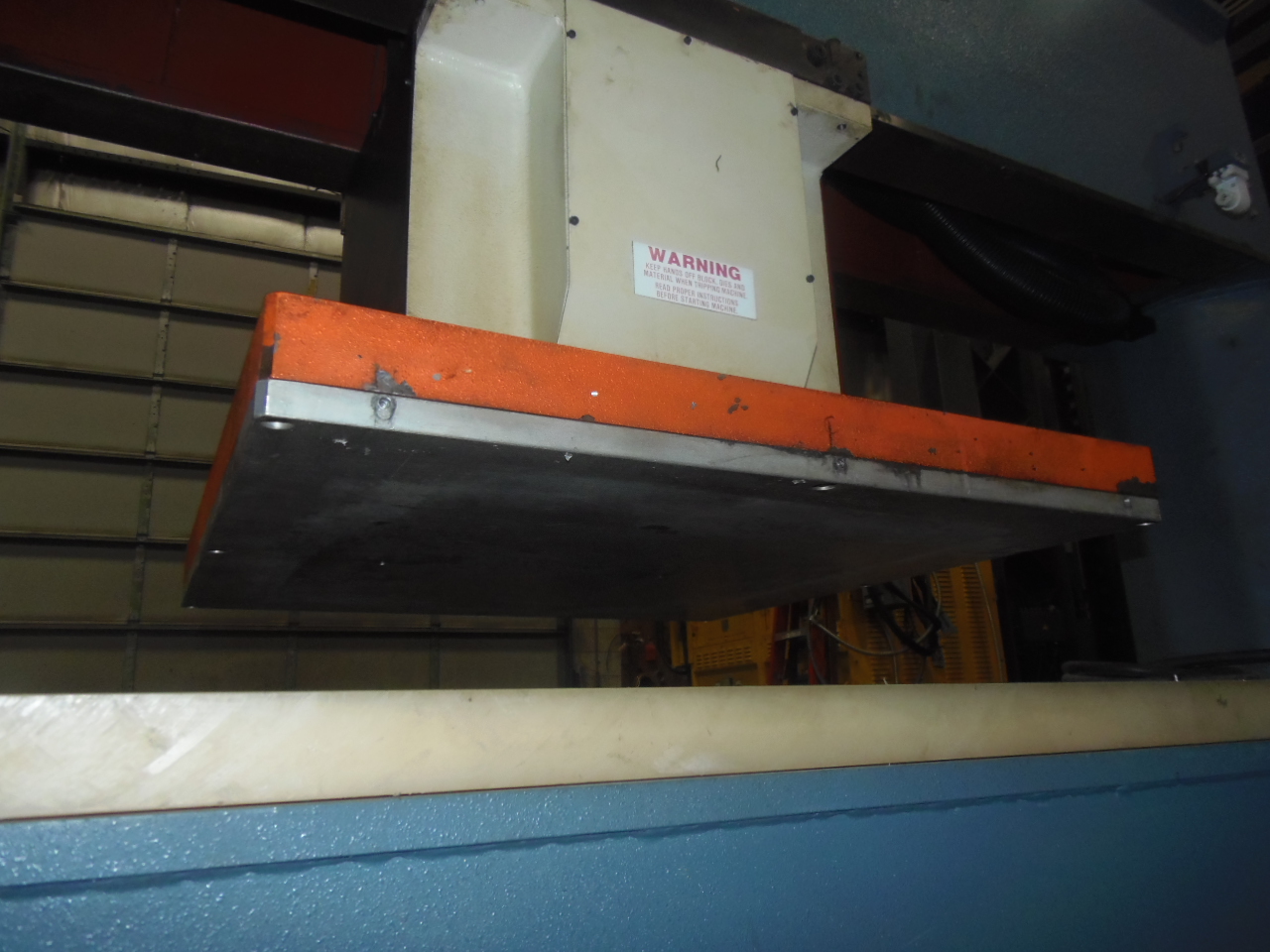

CUTTING HEAD AREA.................. 29.5" x 29.5"
THICKNESS OF RAM FILLER PLATE...... 0.75"
FLOOR TO TOP OF BED................ 40"
FLOOR TO TOP OF NYLON BOLSTER...... 42"
STROKE............................. 6"
DAYLIGHT OPENING TO BOLSTER........ 6"
DAYLIGHT OPENING TO BED............ 8"

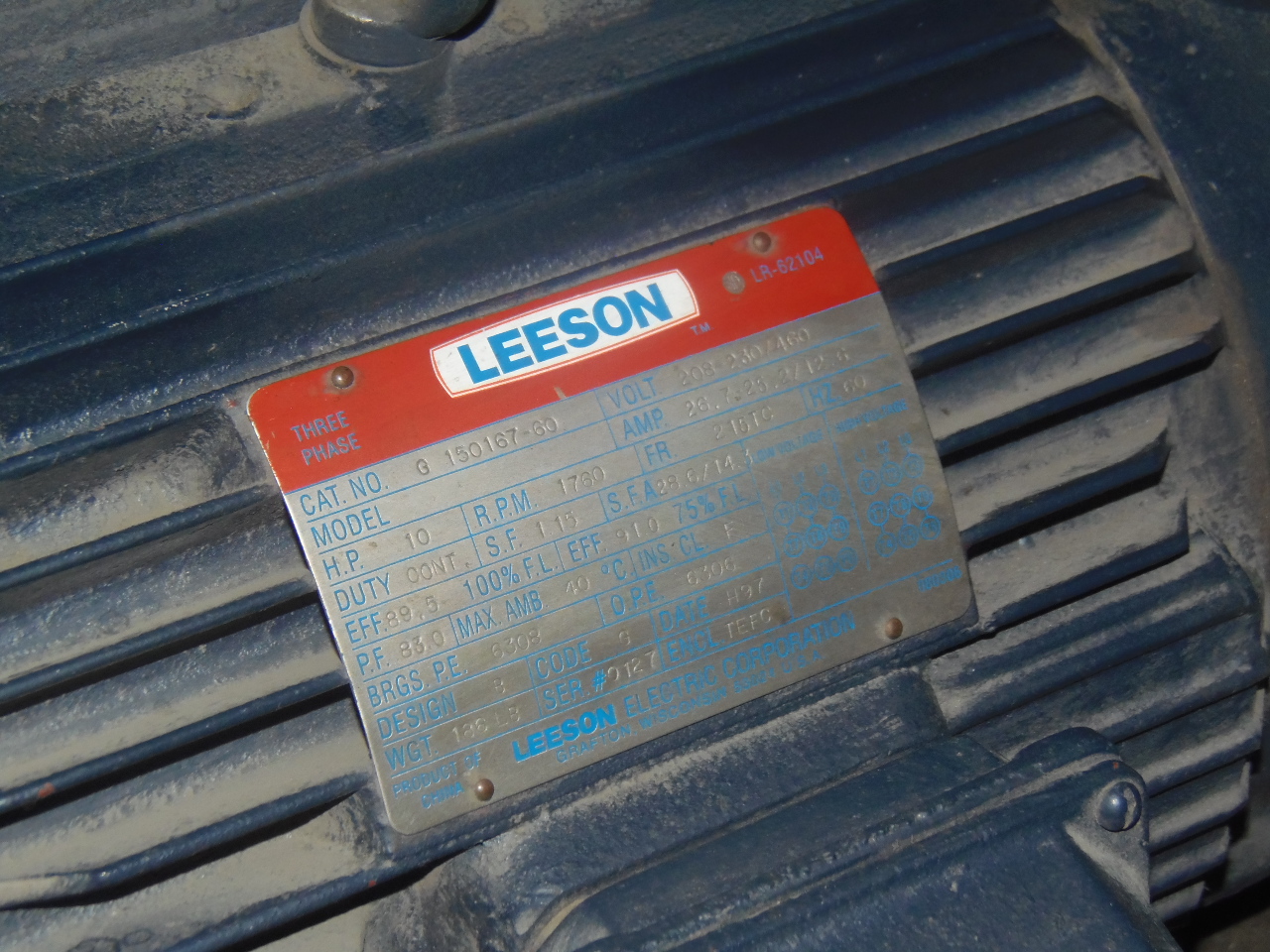

POWER UNIT (MAIN).................. 10 HP 208-230/460 VOLTS
CURRENTLY RUNNING VOLTAGE.......... 460/3/60

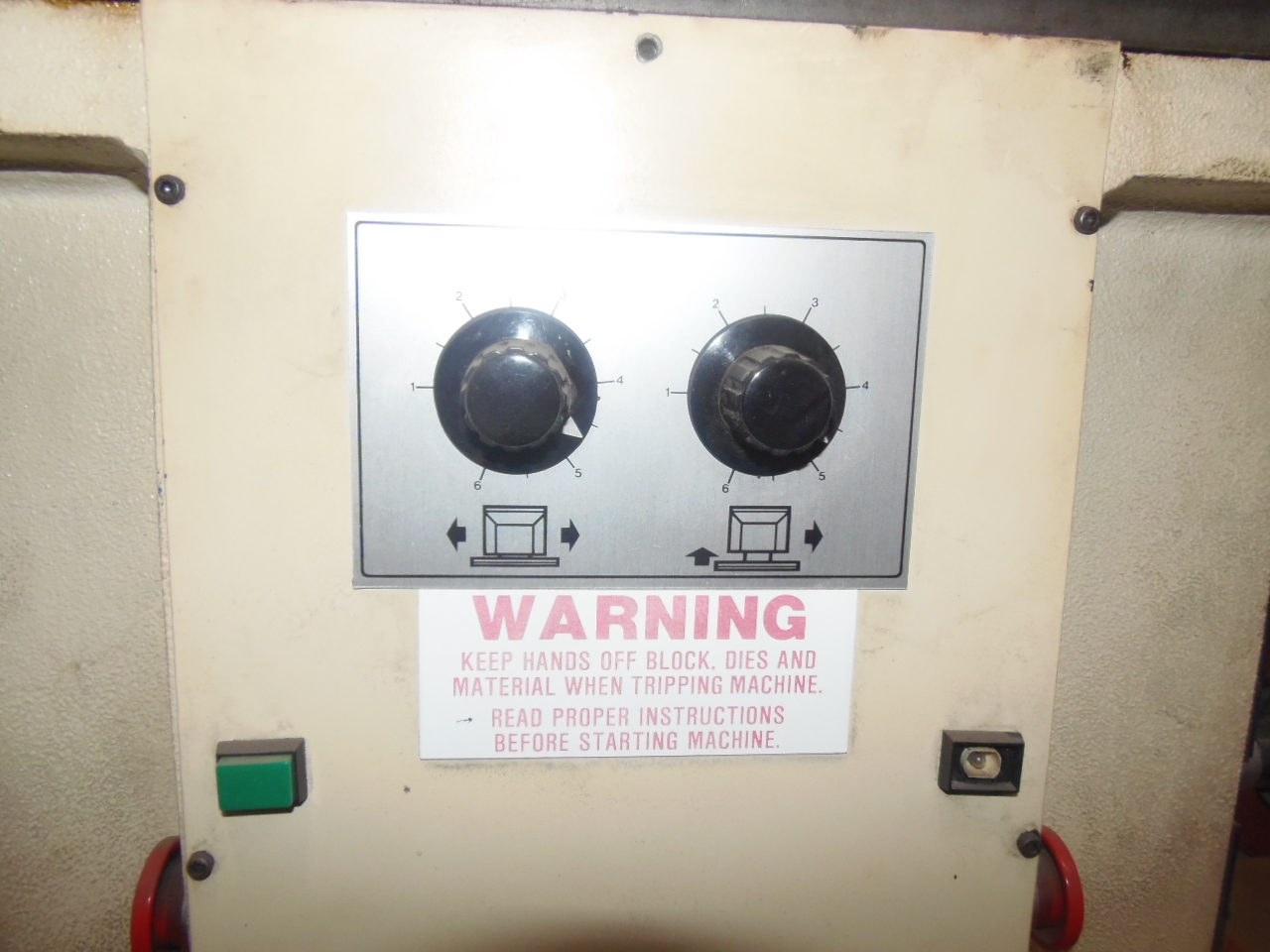

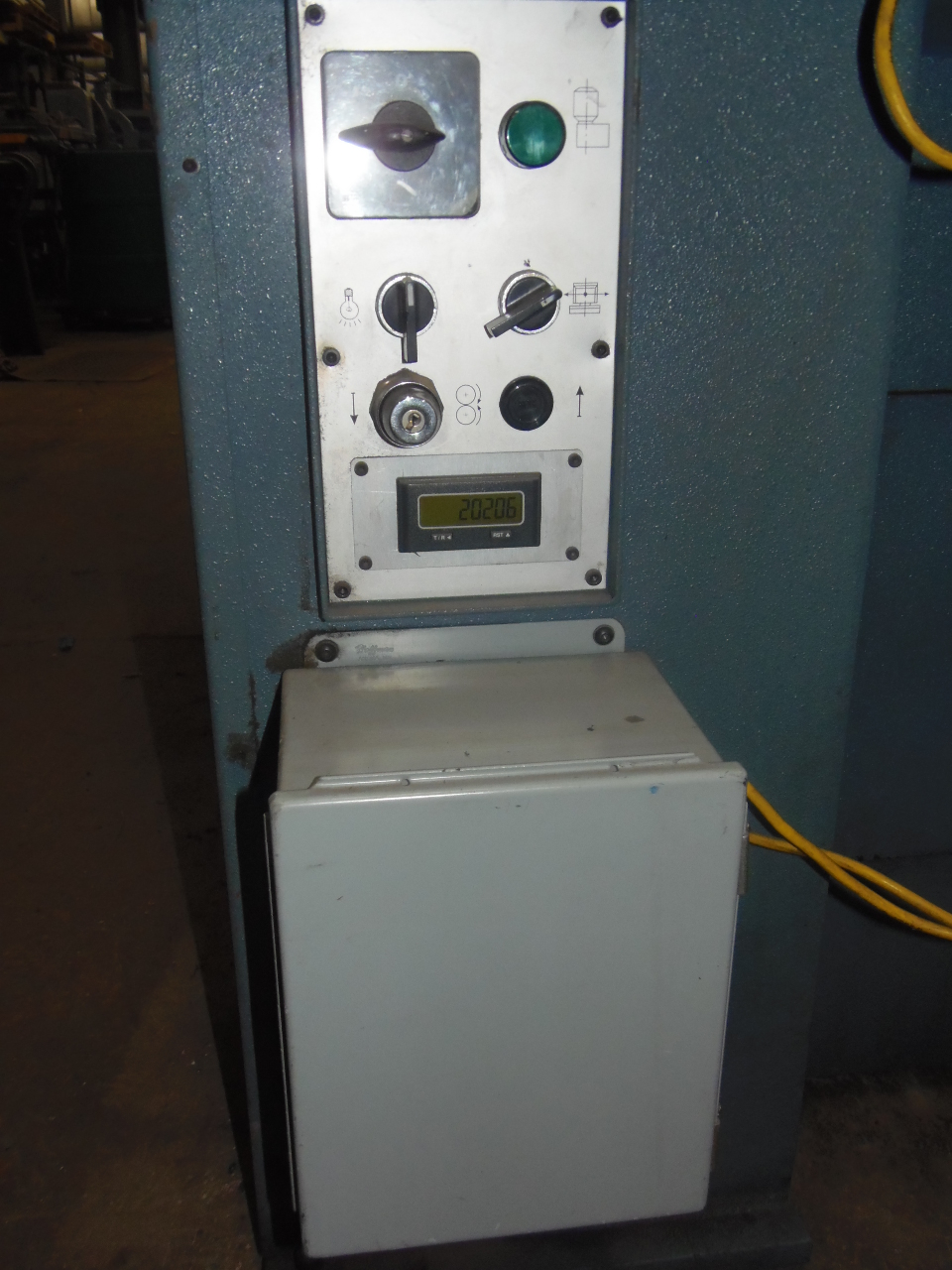

CONTROLS........................... PUSH BUTTON WITH STROKE
................................... & PRESSURE CONTROL(DUAL PALM ................................... BUTTONS)
APPROX. WEIGHT..................... 7,000 LBS
OVERALL DIMENSIONS................. 36" X 93" X 84"
** FOR PARTS, NOT WORKING **
