Specifications
Equipped With
GENERAL SPECIFICAITONS:

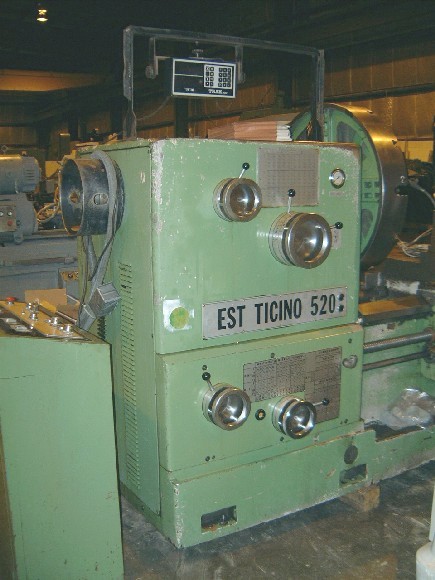

MANUFACTURER TUCINO
MODEL EST-520
SERIAL # 0880
SWING OVER BED 44"
SWING IN GAP 55"
DISTANCE BETWEEN CENTERS 72"
SWING OVER CROSS SLIDE 27 15/16"
GAP WIDTH 19"
HOLE THRU SPINDLE 5"
CROSS SLIDE TRAVEL 20"
HEADSTOCK SPINDLE SPEEDS 6 - 600 RPM
TAILSTOCK SPINDLE DIAMETER 4"
TAILSTOCK SPINDLE TAPER MORSE NO. 6
SPINDLE NOSE D1-11
METRIC FEEDS
LONG. .018-.27
FACING .0009-.135
WHITWORTH
LONG. .027-.39
FACING .014-.19
MODULAR
LONG. .062-.85
FACING .031-.42
ELECTRICS 220/440/3 PH/60 HZ
MOTOR 30 HP
EQUIPPED WITH:
TRAK 2-AXIS DIGITAL READOUT
4 WAY TOOL POST

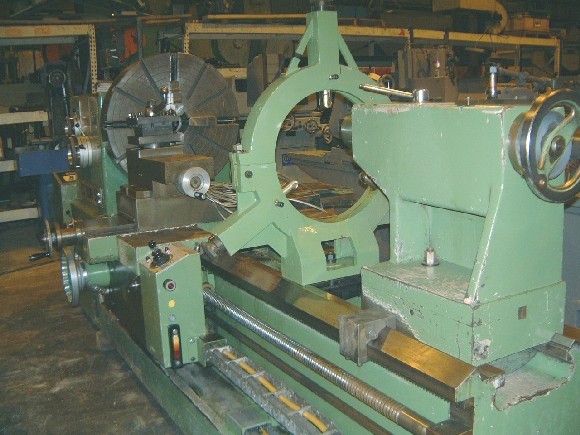

STEADY REST
JOY STICK CONTROL ON CROSS SLIDE & SADDLE

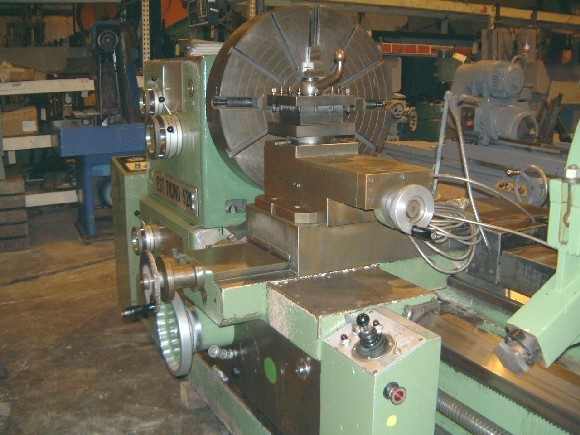

4-JAW 32" CHUCK
3-JAW 16" CHUCK
COOLANT
INCH/METRIC/ THREADING
CURRENTLY WIRED FOR 440V
