Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER. . . . . . . . . . . . . . BEHRINGER
MODEL . . . . . . . . . . . . . . . . . HBP
AGE . . . . . . . . . . . . . . . . . . 2005
MAXIMUM ROUND CAPACITY @ 90°/45°. . . . 20.8" / 20.1"
MAXIMUM RECTANGULAR CAPACITY @ 90°. . . 20.8" (43.3" Optional)
MAXIMUM RECTANGULAR CAPACITY @ 45°. . . 27.5" X 19.6"
MITER RANGE R/L . . . . . . . . . . . . 45 (60 Optional)
BLADE DRIVE MOTOR . . . . . . . . . . . 10 HP
BLADE SPEED RANGE . . . . . . . . . . . 55 - 360 SFM
SAW BLADE WIDTH . . . . . . . . . . . . 2"
BLADE COOLING SYSTEM . . . . . . . . . FLOOD COOLANT
MACHINE WEIGHT . . . . . . . . . . . . . 19,360 LBS
SAW FRAME GUIDANCE . . . . . . . . . . . DUAL ROUND COLUMN
BLADE DOWN-FEED SYSTEM . . . . . . . . . HYDRAULIC
FEED GRIPPER STROKE. . . . . . . . . . . 118"

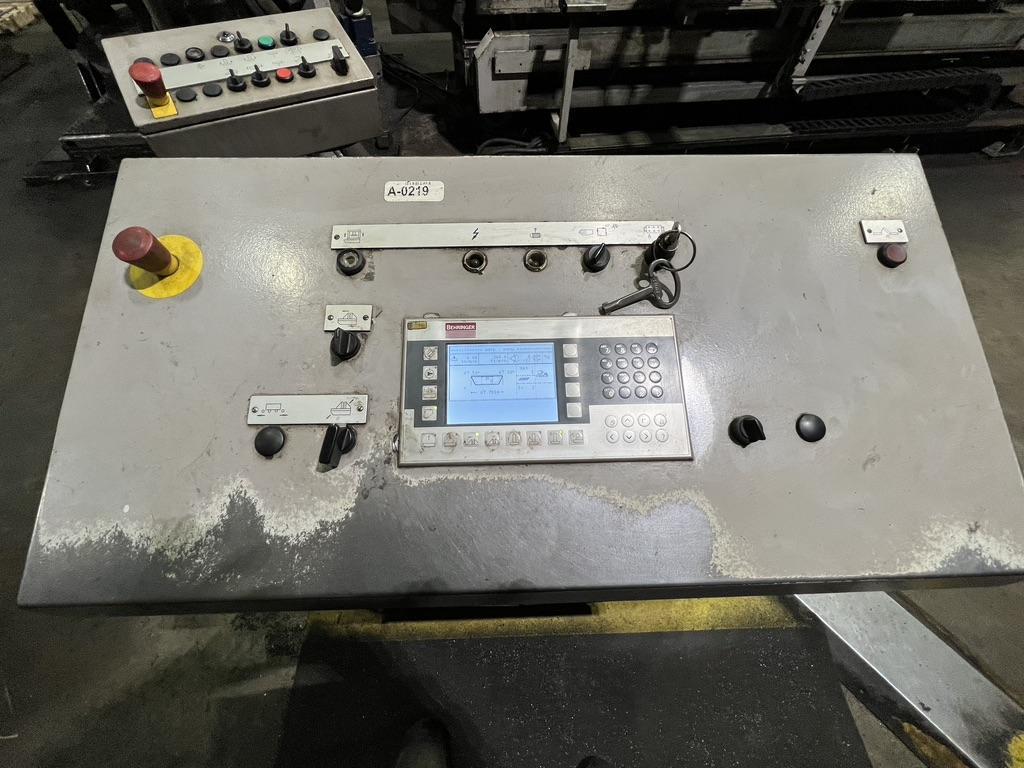

MACHINE CONTROL. . . . . . . . . . . . . BT-20 LCD
JOB STORAGE. . . . . . . . . . . . . . . 40 JOBS
VOLTAGE. . . . . . . . . . . . . . . . . 480 VOLTS
EQUIPPED WITH:
DUAL VISE PROGRAMMABLE AUTOMATIC FEED
MITERING BOTH LEFT AND RIGHT
AUTO BLADE TENSIONING
BLADE SENSING
MANUALS
SPARE PARTS
