Specifications
Equipped With
SPECIFICATIONS:
AREA OF TABLE ....................... 86-1/2" X 20"
SPINDLE SPEEDS ...................... (24) 14 TO 1400 RPM
LONGITUDINAL & CROSS FEEDS .......... (32) 3/8 TO 90 IPM
VERTICAL FEEDS ...................... (32) 3/32 TO 22-1/2 IPM
LONGITUDINAL TRAVEL ................. 42"
CROSS TRAVEL ........................ 16"
VERTICAL TRAVEL OF SPINDLE CARRIER .. 24"
TAPER IN SPINDLE .................... #50 NS
DISTANCE SPINDLE TO TABLE ........... 3" TO 27" MAX
RAPID TRAVERSE ...................... 150 IPM
COOLANT ............................. YES
MOTOR ............................... 25 HP
EQUIPPED WITH:
HEIDENHAIN DRO
MISC. TOOLING

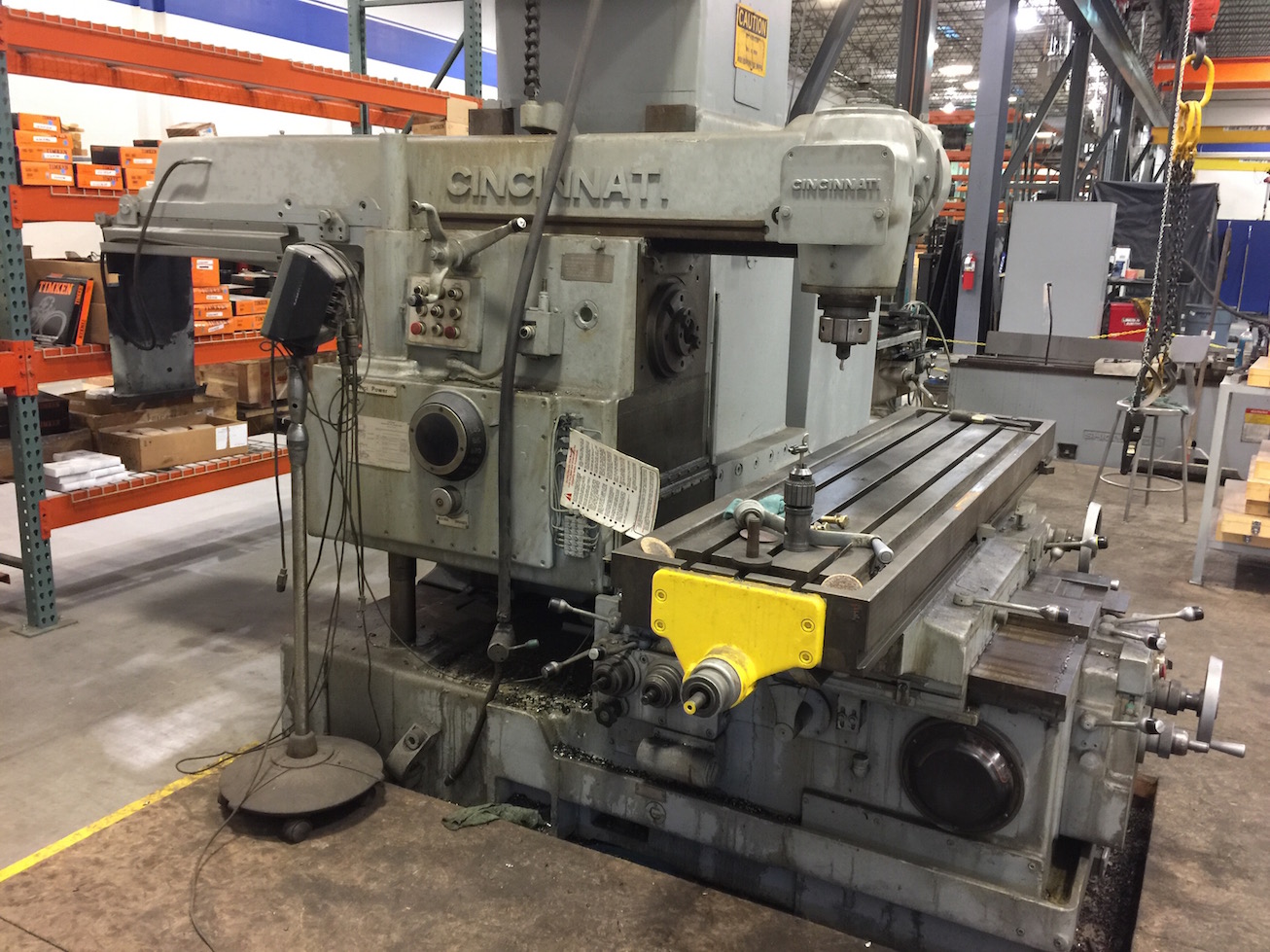

OVERARM SWIVELING VERTICAL SPINDLE ATTACHMENT
