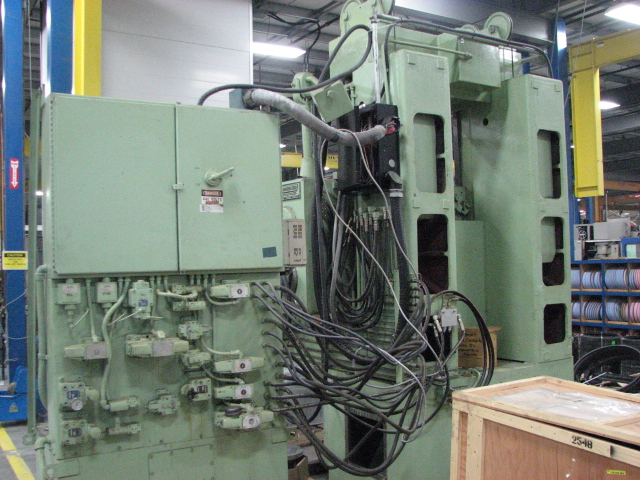

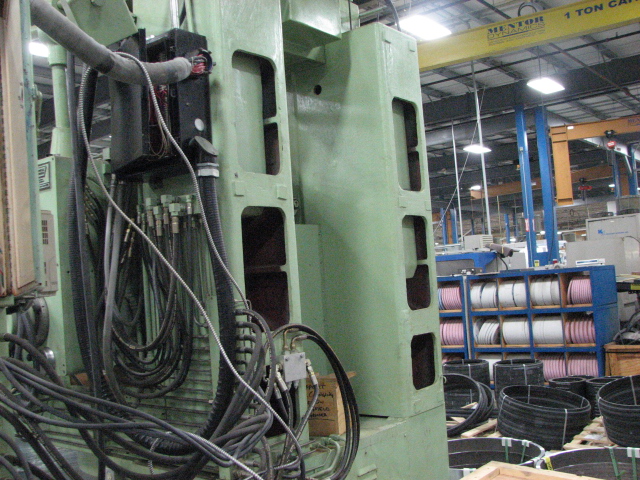

42" SPRINGFIELD, 2 1/2A-TR, 21" STROKE, REBUILT 2005, NEW 1971

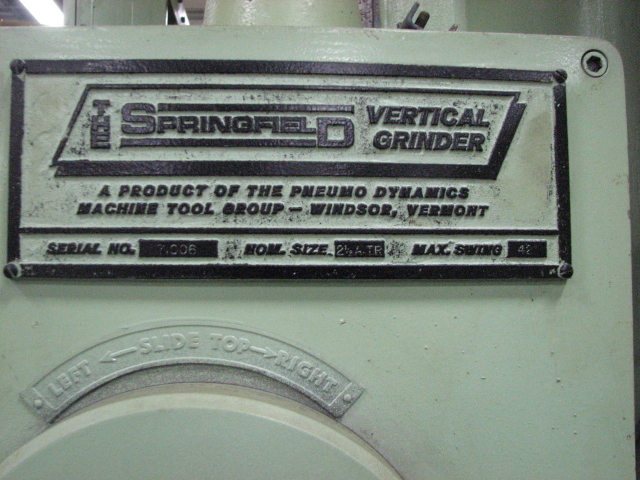

MANUFACTURER                                                 SPRINGFIELD

MODEL                                                             2 1/2A-TR

AGE                                                                 NEW 1971 REBUILT 2005

SERIAL NUMBER                                                 71006

WORK TABLE:                                                    36" DIAMETER T-SLOTTED FACE PLATE TYPE
MAXIMUM SWING:                                              42"
STROKE OF GRINDING HEAD:                                 21"
MAXIMUM DISTANCE OVER WORK TABLE:                36"
MINIMUM DISTANCE OVER WORK TABLE:                 12"
VERTICAL ADJUSTMENT OF RAIL:                           36"
SPINDLE SPEEDS:                                                1 TO 175 RPM INF. VAR.
NOMINAL HOLE DEPTH THAT CAN BE GROUND:          18"
AUTOMATIC CROSS FEED (EITHER END OF STROKE):  .0002" - .003" ON DIAMETER
DWELL AT EITHER END OF STROKE:                        .6 TO 12 SEC.
ANGLE SETTING OF HEAD:                                     0 TO 45 DEGREES
CROSS SLIDE RAPID TRAVERSE RATE:                     30 IPM
VERT. SLIDE RAPID TRAVERSE & RECIP. RATE:          180 IPM

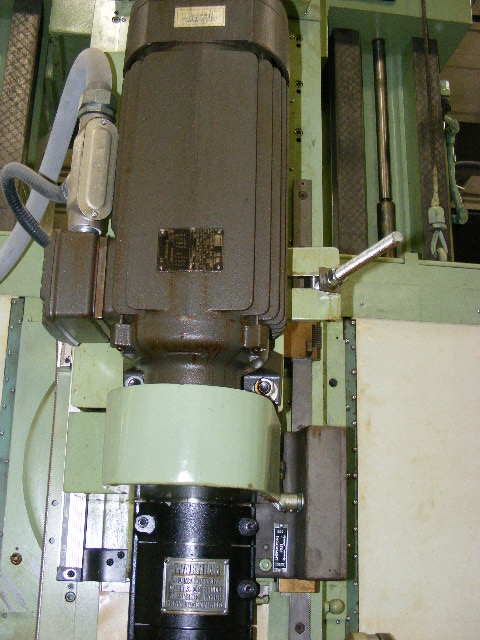

MOTORS:                                                           10 HP WHEEL SPINDLE
                                                                        3 HP HYDRAULIC
                                                                        1.5 HP WORK SPINDLE
                                                                        1.5 RAIL ELEVATION
                                                                        1/4 HP COOLANT PUMP
EQUIPPED WITH:

REBUILT IN 2005 LITTLE USE SINCE

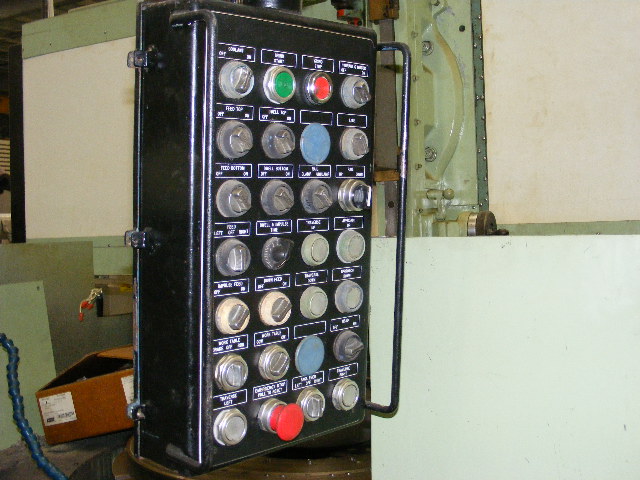

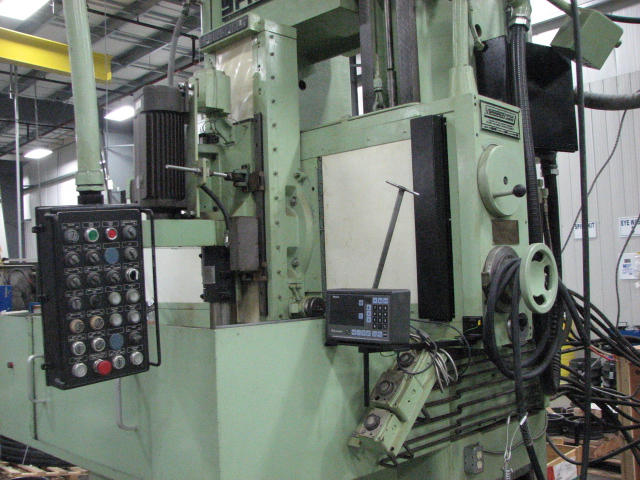

PENDANT CONTROL
WHEEL DRESSER
FLOOR SPACE: 115" X 123" X 156" HIGH
APPROXIMATE WEIGHT: 25,000 LBS.
