Specifications
Equipped With
GENERAL SPECIFICATIONS:

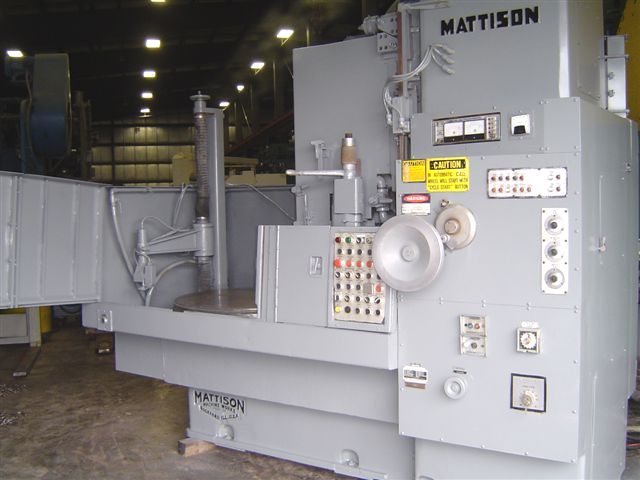

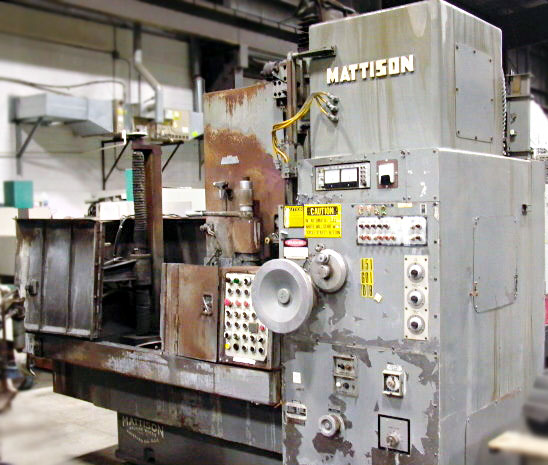

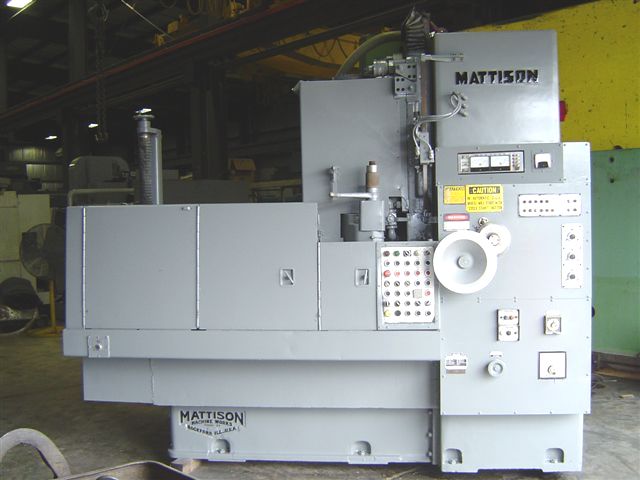

MANUFACTURER.............................. MATTISON
NEW (APPROX.)............................. 1978
SERIAL #.................................. 24-669
CHUCK SIZE................................ 42"
WHEEL SIZE................................ 24"
VERTICAL TRAVEL........................... 18"
TABLE SPEED............................... 0 TO 28 RPM
WHEEL SPEED............................... 700 RPM
POWER DOWNFEED RANGE...................... .015 TO .165 IPM
WHEEL FEED GRADUATIONS.................... .0001"
MOTOR..................................... 50 HP
ELECTRICS................................. 240V
WEIGHT (APPROX)........................... 22,000 LBS
OVERALL DIMENSIONS........................ 12' X 6' X 9'H
EQUIPPED WITH:
DRESSER
QUICK TILT

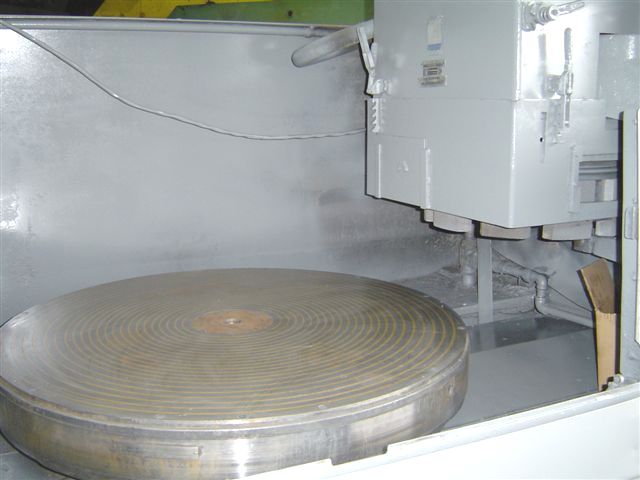

42" CHUCK WITH DEMAG
COOLANT TANK
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
