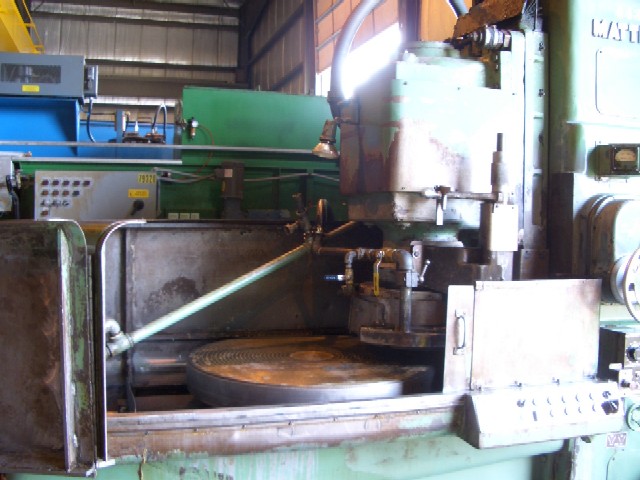

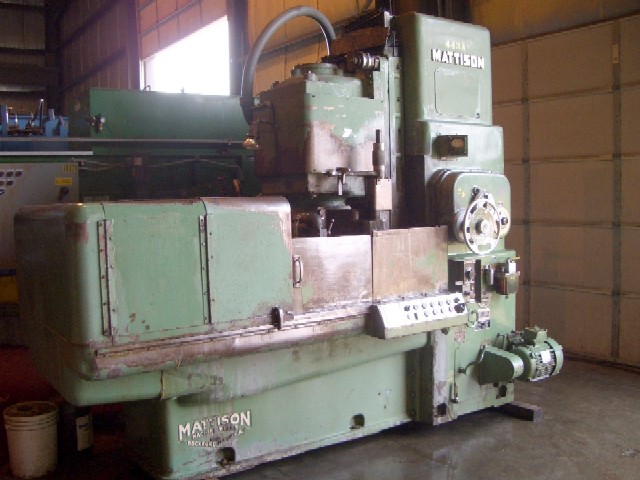

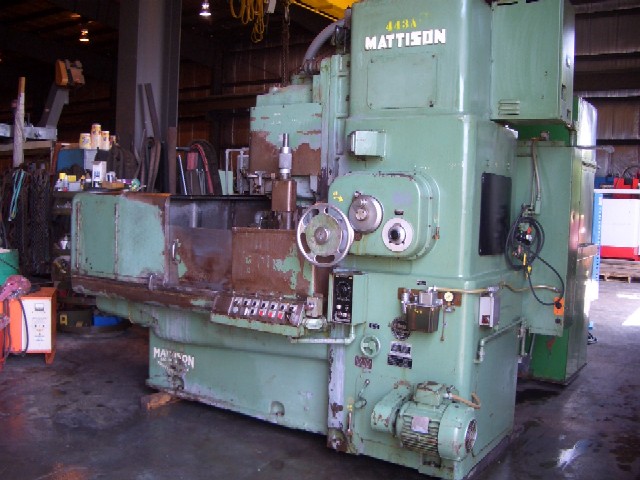

42" MATTISON, 18" VERTICAL, 24" MAGNETIC CHUCK, 75 HP, 4 SPEED TABLE, DRESSER

GENERAL SPECIFICATIONS:
MANUFACTURER MATTISON
NEW (APPROX.) 1966
SERIAL # 24-357
CHUCK SIZE 42"
WHEEL SIZE 24"
VERTICAL TRAVEL 18"
TABLE SPEED (5 GEARS) 8 TO 32 RPM
WHEEL SPEED 700 RPM
POWER DOWNFEED RANGE .015 TO .165 IPM
WHEEL FEED GRADUATIONS .0001"
MOTOR 75 HP
ELECTRICS 240V
WEIGHT (APPROX) 25,000 LBS
OVERALL DIMENSIONS 12' X 6' X 9'H

EQUIPPED WITH:
DRESSER

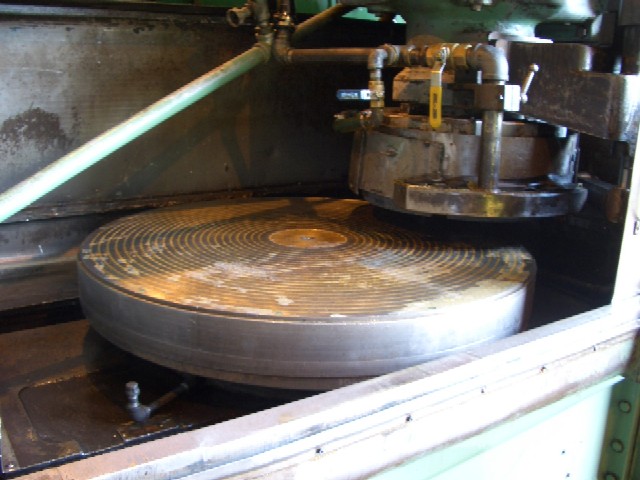

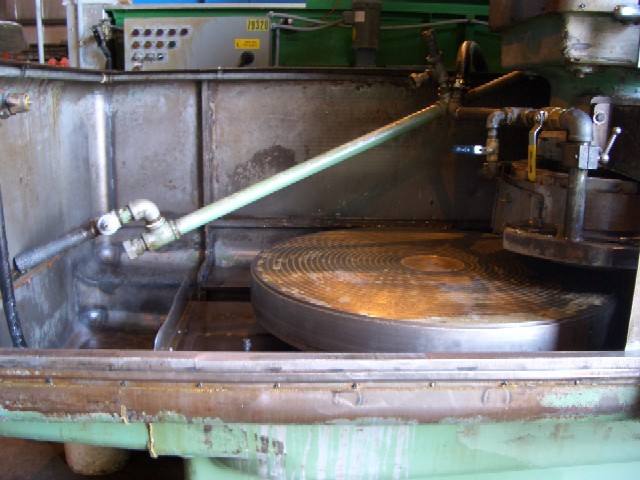

42" CHUCK WITH DEMAG

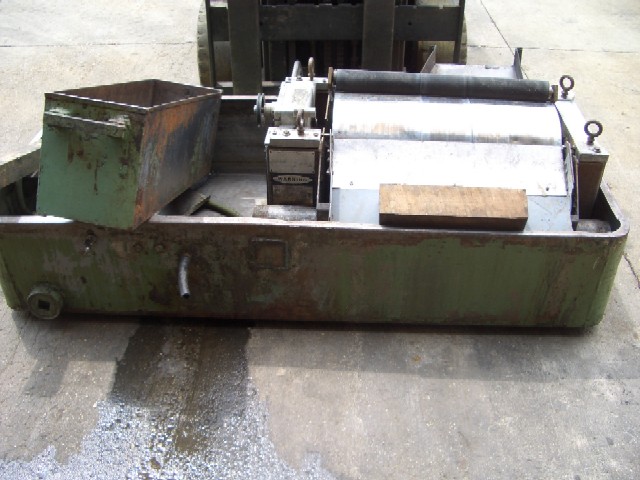

COOLANT TANK
4 SPEED TABLE
RUNS NICE
CHUCK LIFE .31 TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
