Specifications
Equipped With

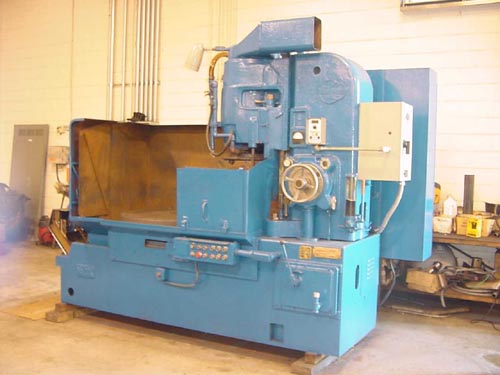

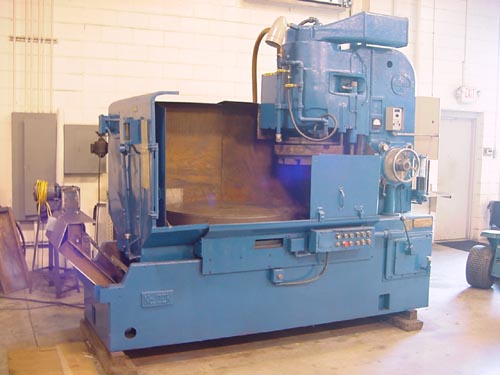

GENERAL SPECIFICATIONS:
NEW APPROXIMATELY---------------------------1966
MAGNETIC CHUCK DIAMETER---------------------42"
SWING INSIDE GUARDS-------------------------48"
MAXIMUM HEIGHT UNDER GRINDING WHEEL---------24"
TABLE SPEEDS--------------------------------6,9,12,18,25,33 RPM
GRIND WHEEL SPEED---------------------------720 RPM
VERTICAL DOWNFEED (VARIABLE)----------------.004" - .080" PER/MIN
MAIN MOTOR----------------------------------50 HP
DIMENSIONS APPROXIMATELY--------------------12' x 5' x 8'8"
WEIGHT APPROXIMATELY------------------------14,500 LBS.
EQUIPPED WITH:
ELECTROMATIC NEUTRIFIER II INSTALLED ON 12/97

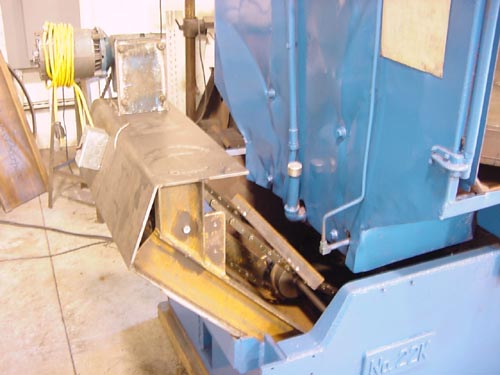

SLUDGE DRAG CONVEYOR (WET BASE CONSTRUCTION)
COOLANT PUMP
AUTO LUBE SYSTEM
SPLASH GUARDS
WHEEL DRESSER
WORK LAMP
*NOTE: APPROXIMATELY 1/2" LEFT ON CHUCK
*NOTE: RECONDITIONED BY OWNER IN 2001
