Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER................................ BLANCHARD
MODEL....................................... 22K42
SERIAL NUMBER............................... 13869
NEW APPROXIMATELY........................... 1973

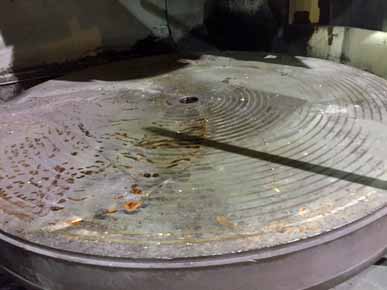

MAGNETIC CHUCK DIAMETER..................... 42"
SWING INSIDE GUARDS......................... 48"
MAXIMUM HEIGHT UNDER GRINDING WHEEL......... 24"
TABLE SPEEDS................................ 6,9,12,18,25,33 RPM

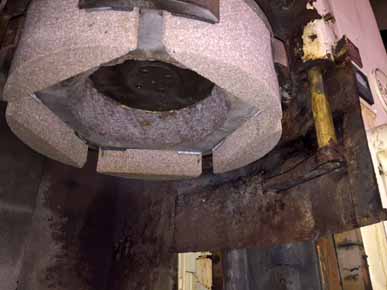

GRINDING WHEEL SPEED........................ 720 RPM
VERTICAL DOWN FEED (VARIABLE)............... .004" - .080" PER/MIN
MAIN MOTOR.................................. 50 HP/440/3PH/60HZ
WEIGHT...................................... 14,500 LBS.
DIMENSIONS **:
The base of the machine is approximately 38" wide x 120" long. The overall size is approximately 73" wide x 123" long x 104" high
EQUIPPED WITH:
NEUTROFIER MAGNET CONTROL
COOLANT PUMP
AUTO LUBE SYSTEM
SPLASH GUARDS
WHEEL DRESSER
WORK LAMP
*NOTE: APPROXIMATELY 1/2" LEFT ON CHUCK
