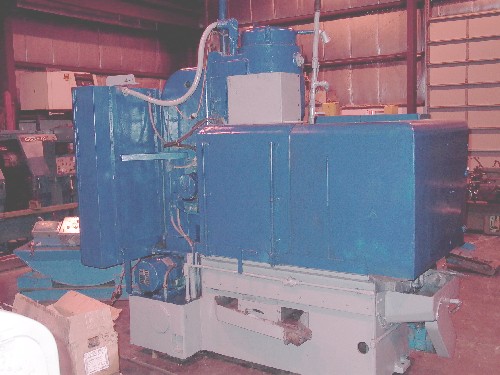

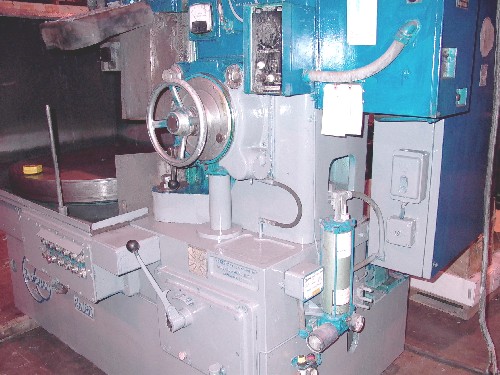

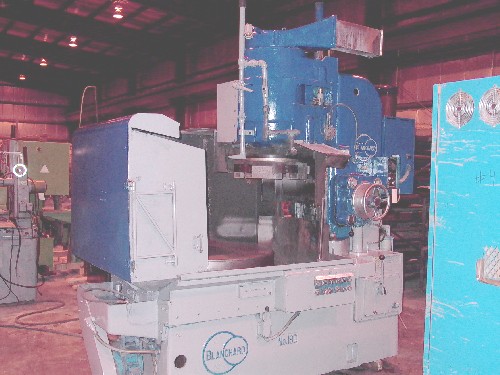

42" BLANCHARD, 21" UNDER WHEEL (HIGH COLUMN),22" SEGMENTED WHEEL, 40 HP, REBUILT UNDER TABLE, QUIET,

MODEL...18-D-42
SERIAL..A-48906
NEW.....1963

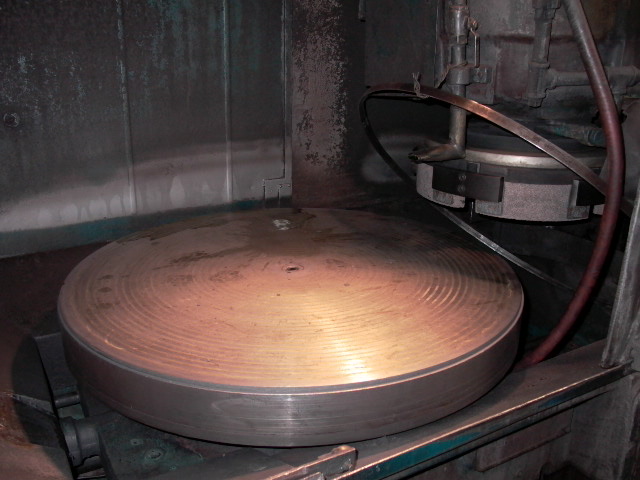

CHUCK SIZE (MAGNETIC) 42"
MAXIMUM SWING: 48" INSIDE WATER GUARDS
MAXIMUM HEIGHT UNDER NEW WHEEL: 21" (12" extended)
WHEEL SIZE: 22" CORTLAND SEGMENTED
TABLE SPEEDS: 6, 9, 12, 18, 25, 33 RPM
MAXIMUM WEIGHT OF WORKLOAD: 2,000 LBS.
WHEEL SPEED: 720 RPM
VERTICAL DOWNFEED: VARIABLE .004" TO .080" PER/MIN
COOLANT CAPACITY: 120 GALLONS
MOTOR: 40 HP
EQUIPPED WITH:
SPLASH GUARDS
WHEEL DRESSER
POWER ELEVATION TO WHEELHEAD
TRABON MODU-FLO LUBE PUMP
SPECIAL DISCHARGE CHUTE
