Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER................. EIMELDINGEN
MODEL........................ 5-1010
SERIAL NUMBER................ V10 142/143
YEAR BUILT................... 1992
DIAMETER OF TABLE............ 40" (1010 MM)
RISER HEIGHT................. 19"
OVERALL SWING................ 78" (1982)
OVERALL HEIGHT............... 43.7" (1110 MM)
CENTER BORE DIAMETER......... 6" (153.39 MM)
PERMISSABLE LOAD............. 13,200 LBS (6000 KG)
WITH TAILSTOCK LOAD.......... 26,400 LBS (12,000 KG)
DRIVE TYPE................... FANUC 20S
EQUIPPED WITH:

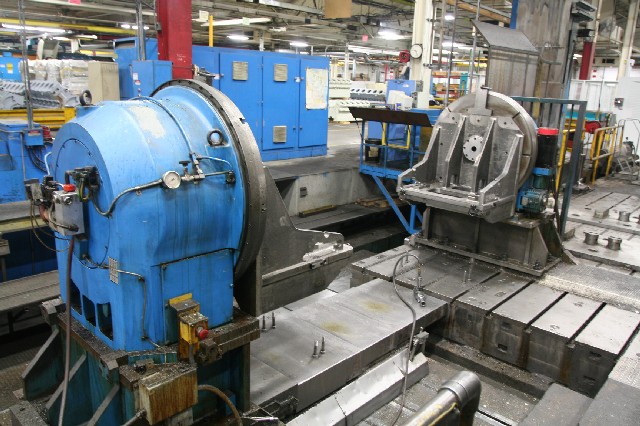

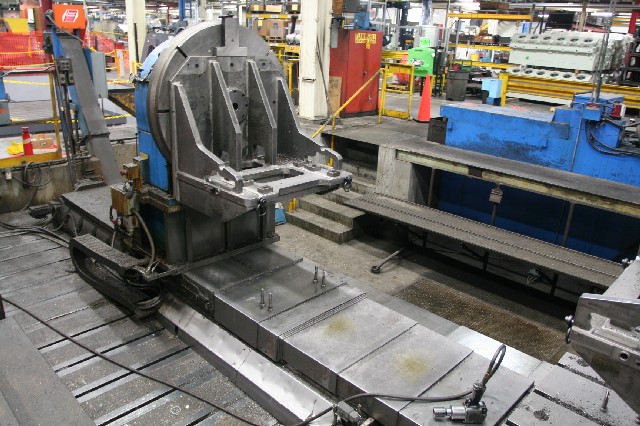

TAIL STOCK WITH CLAMPING, A 40" FACE, WHICH IS MOUNTED ON A SUB SLIDE WITH 100" OF FORWARD AND BACKWARD POWER MOVEMENT.
4TH AXIS ROTATION BY CNC CONTROL
WAS RUNNING WITH A FANUC 18M CONTROL
SPECIFICATIONS SUBJECT TO VERIFICATION
